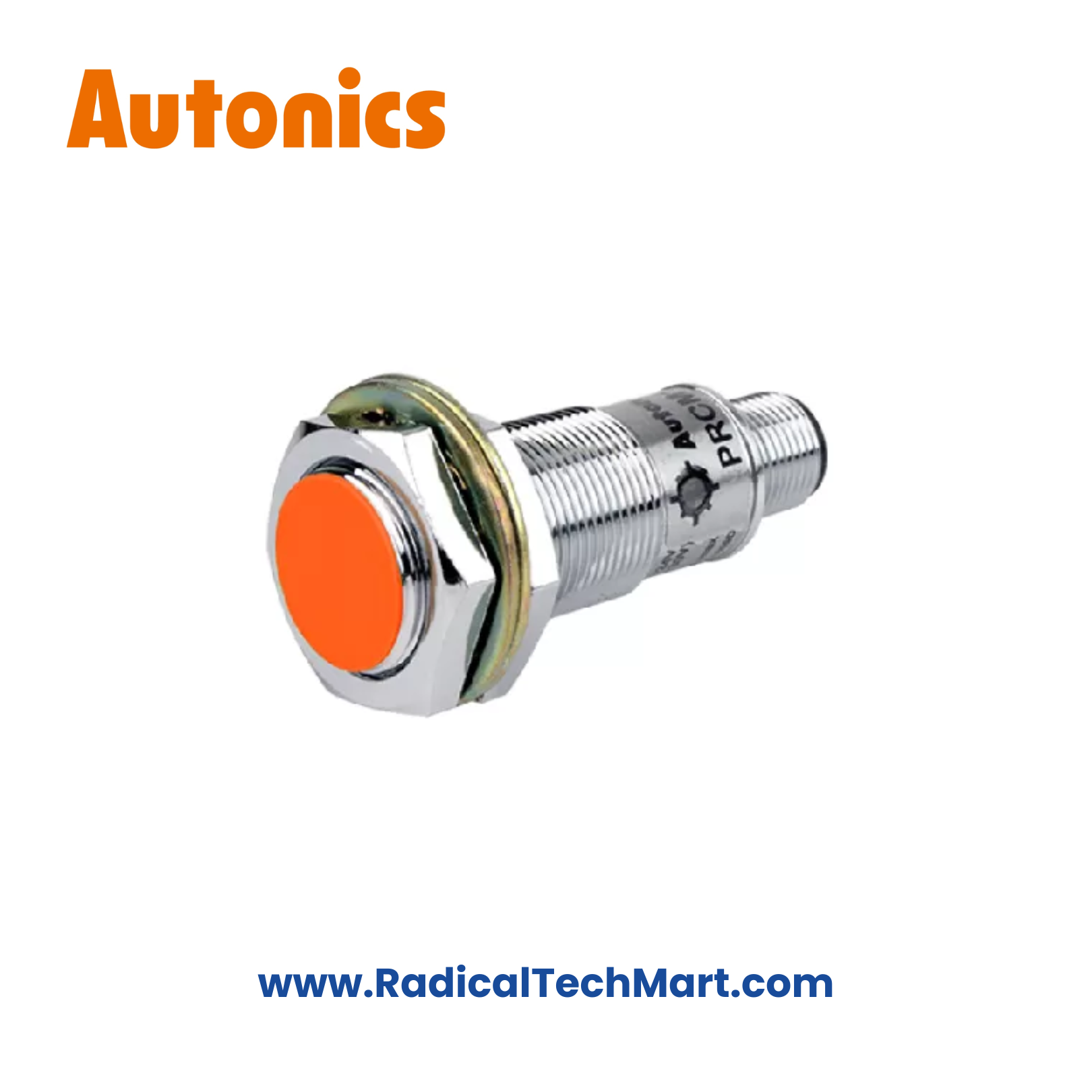

PRCM18-5DP Autonics Inductive Proximity Sensor
Non-returnable
₹2,066.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PRCM18-5DP |
| Wire type and power | DC 3-wire type 12-24VDC |
| Sensing side diameter | M18 |
| Sensing distance | 5mm |
| Installation | Flush |
| Standard sensing target | 18×18×1mm(iron) |
| Response frequency | 500Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
| Cable Standard ( material ) | Standard connector |
| Protection structure | IP67(IEC standard) |
| Approval | CE |
| Body length | Standard type |
| Environment Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | Approx. 61g(approx. 49g) |
