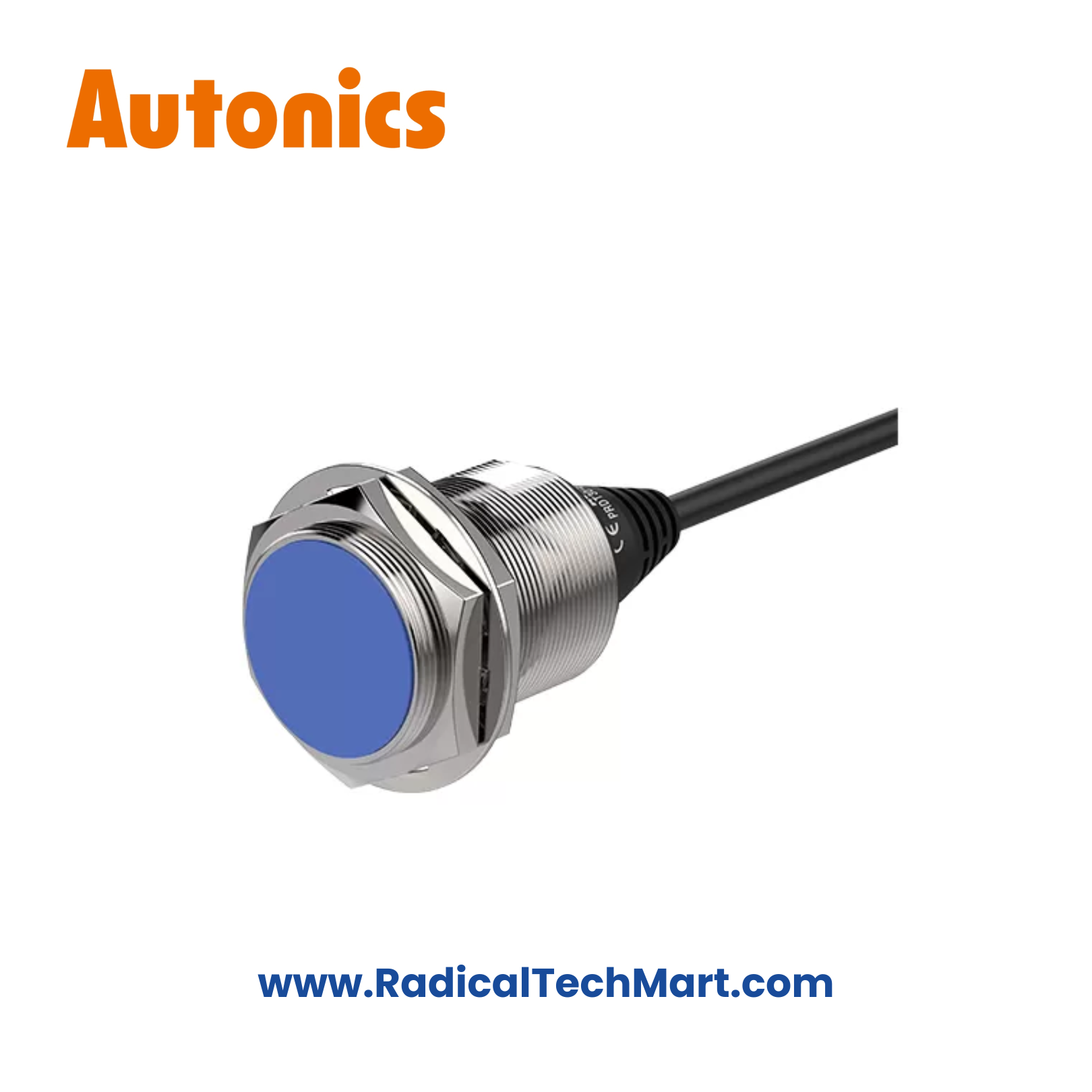

PRD30-25DN Autonics Proximity Sensor
Non-returnable
₹1,918.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PRD30-25DN |
| Wire Type and Power | DC 3-wire type 12-24VDC |
| Setting Diameter | 0-17.5mm |
| Sensing Distance | 25mm |
| Installation | Non-Shield |
| Standard Sensing Target | 75×75×1mm(iron) |
| Response Frequency | 100Hz |
| Current Specification | Leakage current: Max. 10mA |
| Control Output | 200mA |
| Material | Case/Nut: Nickel plated Brass, Washer: Nickel plated Iron, Sensing surface: Heat-resistant Acrylonitrile butadiene styrene, Standard cable (black): Polyvinyl chloride (PVC), Oil resistant cable (gray): Oil resistant Polyvinyl chloride (PVC) |
| Cable | Ø5mm, 3-wire, 2m |
| Protection Structure | IP67 (IEC standard) |
| Body Length | Standard type |
| Environment Ambient Temperature | -25 to 70℃ |
| Environment Ambient Humidity | 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual Voltage | Max. 1.5V |
| Power Supply | 24 VDC |
| Vibration | 1mm amplitude |
| Dielectric Strength | 1500 VAC 50/60 Hz for 1 min |
| Shock | 500 m/s² in each X, Y, Z direction for 3 times |
| Weight | Approx. 180g |
