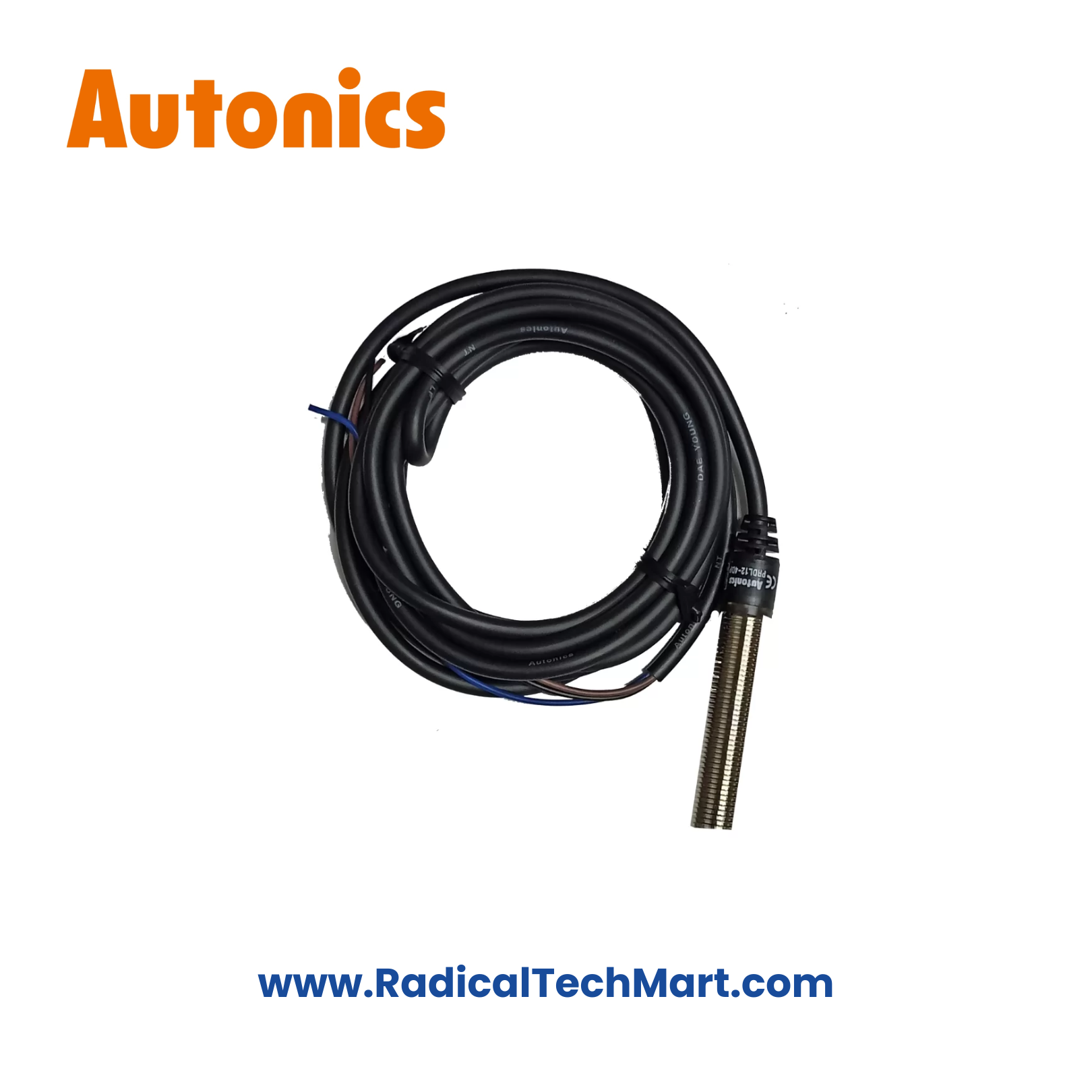

PRDL12-4DP Autonics Inductive Proximity Sensor
Non-returnable
₹1,790.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | PRDL12-4DP |
| Wire type and power | DC 3-wire type 12-24VDC |
| Sensing side diameter | M12 |
| Sensing distance | 4mm |
| Installation | Shield(flush) |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 500Hz |
| Current specification | Current consumption: Max. 10mA |
| Control output | PNP Normally Open |
| Material | Brass(nickel plated) |
| Cable Standard/material | Standard cable |
| Protection structure | IP67 |
| Approval | CE |
| Body length | Long body |
| Environment Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
| Environment Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 10% of sensing distance |
| Residual voltage | Max. 1.5V |
| Weight | ≈ 82g (≈ 94g) |
