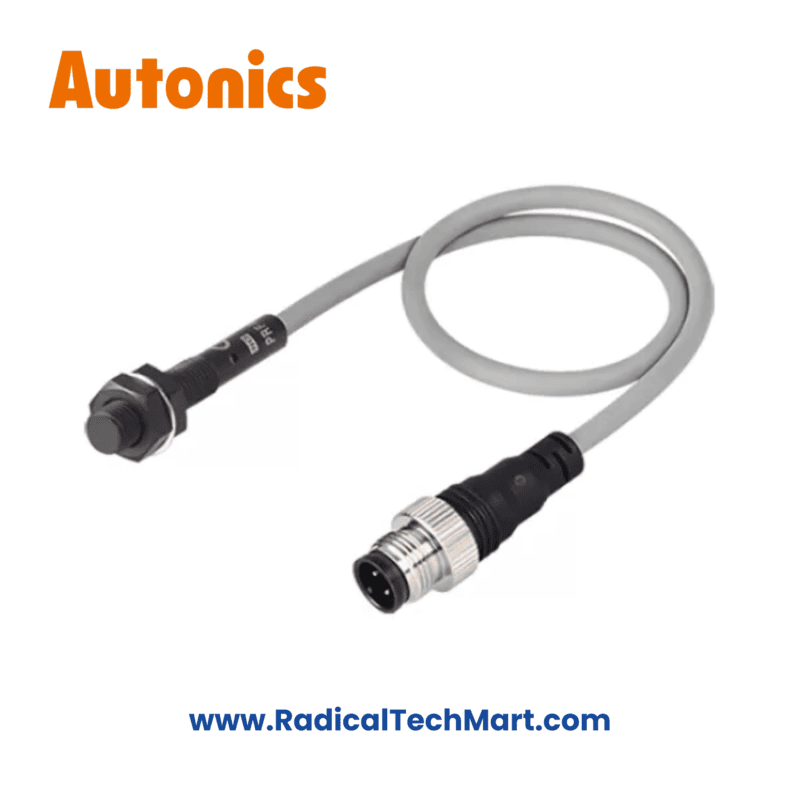

PRFDAWT08-2DO-IV Autonics Inductive Proximity Sensor
Non-returnable
₹13,198.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model | PRFDAWT08-2DO-IV |
| Wire type and power | DC 2-wire type 12-24VDC |
| Sensing side diameter | 8mm |
| Sensing distance | 2mm |
| Installation | Shield(flush) |
| Standard sensing target | 12×12×1mm(iron) |
| Response frequency | 150Hz |
| Current specification | Leakage current: Max. 0.8mA |
| Control output | Normally Open |
| Material | SUS303 |
| Cable Standard ( material ) | Oil resistant cable(IEC standard) |
| Protection structure | IP67 |
| Approval | CE |
| Body length | Standard type |
| Environment Ambient temperature | -25 to 70℃, storage: -25 to 70℃ |
| Environment Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
| Hysteresis(distance) | Max. 15% of sensing distance |
| Residual voltage | Max. 3.5V |
| Weight | Approx. 80g (approx. 55g) |
