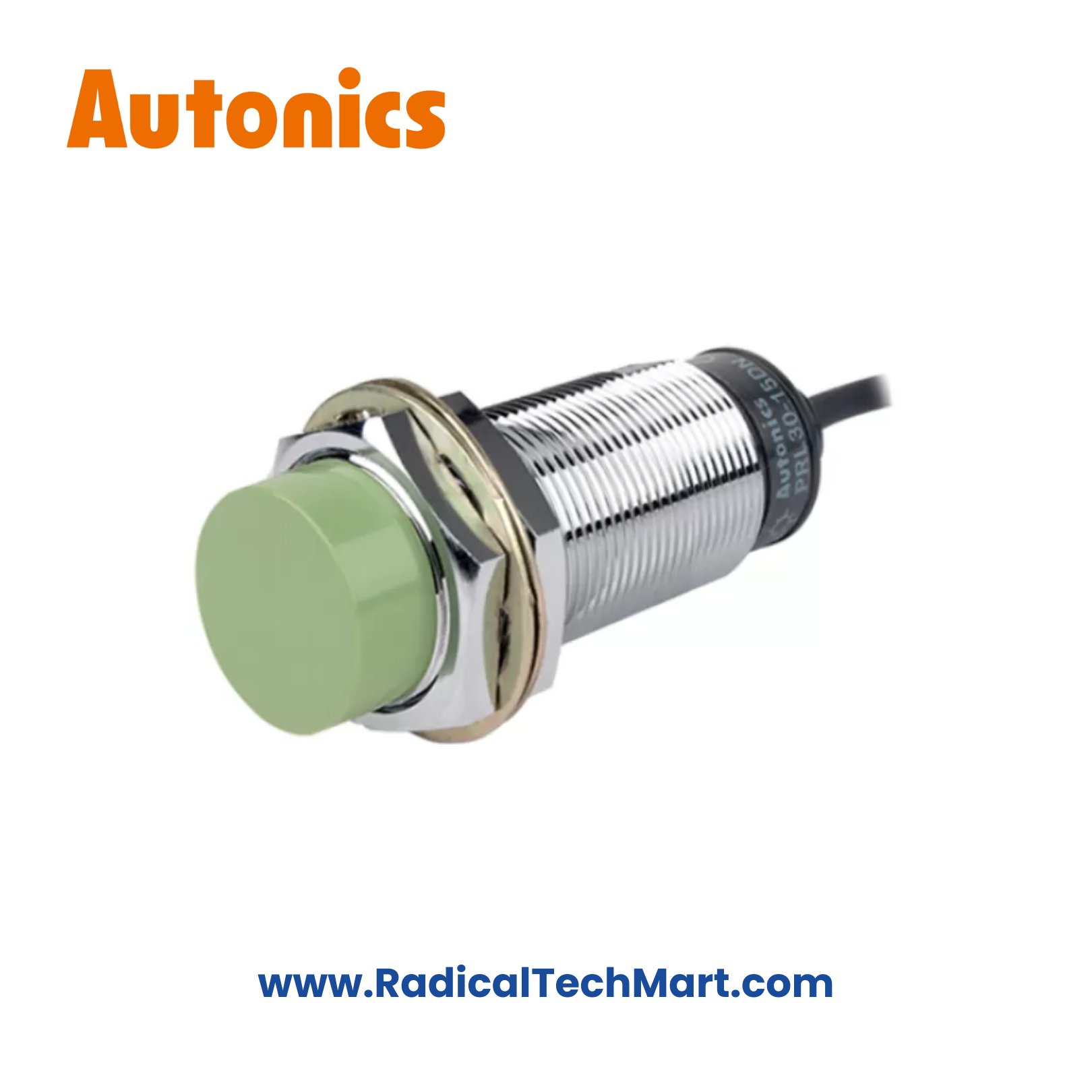

PRL30-15DN Autonics Proximity Sensor
Autonics PRL30-15DN Inductive Proximity Sensor – M30, 15 mm, NPN, DC 3-Wire
Autonics PRL30-15DN is an M30 inductive proximity sensor with a 15 mm sensing distance and NPN DC 3-wire output.
Designed for long-range metal detection in PLC-controlled industrial automation.
The Autonics PRL30-15DN is a heavy-duty cylindrical inductive proximity sensor designed to detect metal objects only in demanding industrial environments. With its M30 threaded housing, 15 mm sensing distance (non-flush), and NPN DC 3-wire output, it provides reliable long-range detection for conveyors, material handling systems, and large industrial machinery connected to PLC digital inputs.
Key Features
Detects metal objects only (inductive sensing principle)
Robust M30 cylindrical housing
15 mm sensing distance (non-flush / unshielded)
NPN, DC 3-wire output
Suitable for PLC digital inputs
Red LED operation indicator
Reverse polarity & short-circuit protection
IP67 protection for harsh industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PRL30-15DN |
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M30 |
| Installation | Non-Flush (Unshielded) |
| Sensing Distance | 15 mm |
| Setting Distance | 0 – 10.5 mm |
| Standard Target | Iron 30 × 30 × 1 mm |
| Output Type | NPN |
| Wiring | DC 3-Wire |
| Supply Voltage | 12–24 V DC (10–30 V DC operating) |
| Current Consumption | ≤ 10 mA |
| Control Output | Max. 200 mA |
| Response Frequency | Approx. 100 Hz |
| Indicator | Red LED |
| Protection Rating | IP67 |
| Ambient Temperature | −25 °C to +70 °C |
| Cable Length | 2 m |
| Body Material | Nickel-plated brass |
| Sensing Face | PBT |
Applications
PLC-based automation systems
Conveyors & material handling
Packaging & assembly machines
Heavy-duty industrial equipment
Position, limit & presence detection
OEM automation machinery
What’s in the Box
1 × Autonics PRL30-15DN Sensor
2 × Mounting nuts
Instruction leaflet
FAQ
Q1. What material can PRL30-15DN detect?
Only metal objects.
Q2. Is PRL30-15DN suitable for PLC inputs?
Yes. It provides an NPN DC 3-wire output, widely used with PLC digital inputs.
Q3. What is the sensing distance?
15 mm with a standard iron target.
Q4. Why is this sensor non-flush?
Non-flush mounting allows a longer sensing distance compared to flush types.
Q5. Can it be used in dusty or oily environments?
Yes. IP67 protection ensures reliable operation.
