PSM-550-B3-11-C-D
Non-returnable
₹1,890.00
Product Details

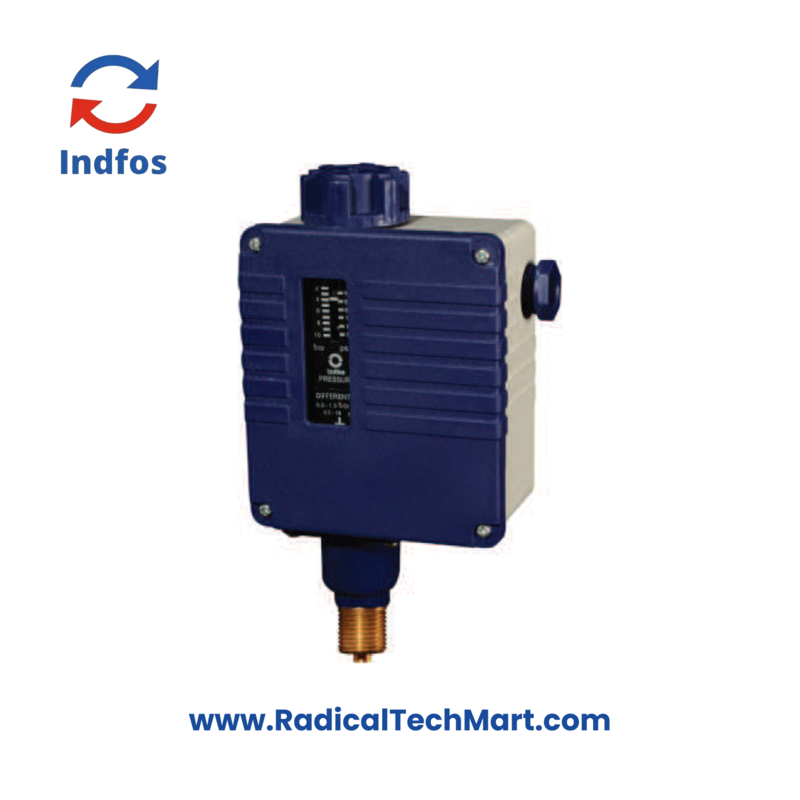

The Wika Indfos Pressure Switch PSM-550-B3-11-C-D is designed for industrial control and monitoring applications. This pressure switch is capable of handling loads up to AC 230V, 10A and is suitable for use with non-corrosive media such as oil, water, and air. Common applications include pumps, lubrication systems, and hydraulic systems.
Features:
- Non-repeatability: ≤1%
- Pressure Setting Range: Various ranges available based on the model
- Sensing Element: PB Bellows with a brass pressure connector
- Switching Type: 1 SPDT (Single Pole Double Throw)
- Rating: 15A, 250 VAC
- Connection: 3/8" BSP
Model Variants and Specifications:
| Old Model | New Model | Setting Range | Differential Range | Max. Pressure |
|---|---|---|---|---|
| RT-1 PB | PSM-550-C1-11-C-D | (-) 0.8 - 5 Bar | 0.5 - 2 Bar | 15 Bar |
| RT-121 PB | PSM-550-V1-11-C-D | (-) 1 - 0 Bar | 0.09 - 0.4 Bar | 7 Bar |
| RT-112 PB | PSM-550-B1-11-C-D | 0.1 - 1.1 Bar | 0.07 - 0.16 Bar | 7 Bar |
| RT-110 PB | PSM-550-B2-11-C-D | 0.2 - 3 Bar | 0.12 - 0.75 Bar | 7 Bar |
| RT-200 PB | PSM-550-B3-11-C-D | 0.2 - 6 Bar | 0.25 - 1.2 Bar | 15 Bar |
| RT-116 PB | PSM-550-B4-11-C-D | 1 - 10 Bar | 0.3 - 1.3 Bar | 16 Bar |
| RT-5 PB | PSM-550-B6-11-C-D | 4 - 17 Bar | 1.2 - 4 Bar | 25 Bar |
| RT-117 PB | PSM-550-B7-11-C-D | 10 - 30 Bar | 1 - 4 Bar | 45 Bar |
