PSM-550-B7-11-C-D
Non-returnable
₹2,040.00
Product Details

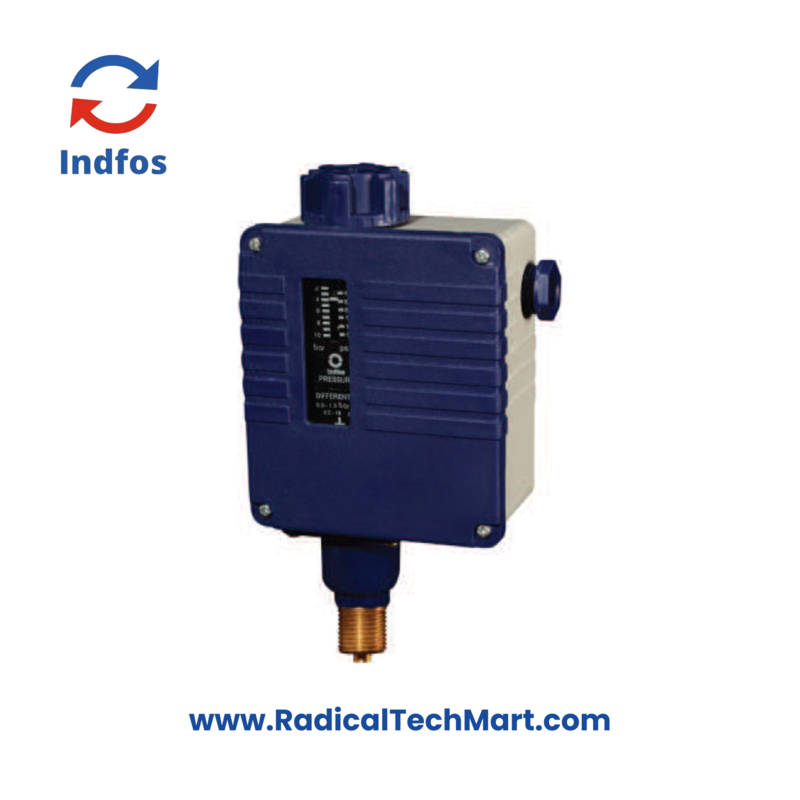

The Wika Indfos Pressure Switch PSM-550-B7-11-C-D is an industrial pressure switch designed for control and monitoring applications. It can handle electrical loads up to AC 230V, 10A, and is compatible with non-corrosive media such as oil, water, and air. Common applications for this pressure switch include pumps, lubrication systems, and hydraulic systems.
Key Features:
- Non-repeatability: ≤1%
- Pressure Setting Ranges: Available in various pressure settings to suit different applications.
- Sensing Element: PB Bellows with a brass pressure connector.
- Switching: 1 SPDT (Single Pole Double Throw).
- Switch Rating: 15A, 250 VAC.
- Connection: 3/8" BSP.
Model Range:
| Old Model | New Model | Setting Range | Differential Range | Max. Pressure |
|---|---|---|---|---|
| RT-1 PB | PSM-550-C1-11-C-D | (-) 0.8 - 5 Bar | 0.5 - 2 Bar | 15 Bar |
| RT-121 PB | PSM-550-V1-11-C-D | (-) 1 - 0 Bar | 0.09 - 0.4 Bar | 7 Bar |
| RT-112 PB | PSM-550-B1-11-C-D | 0.1 - 1.1 Bar | 0.07 - 0.16 Bar | 7 Bar |
| RT-110 PB | PSM-550-B2-11-C-D | 0.2 - 3 Bar | 0.12 - 0.75 Bar | 7 Bar |
| RT-200 PB | PSM-550-B3-11-C-D | 0.2 - 6 Bar | 0.25 - 1.2 Bar | 15 Bar |
| RT-116 PB | PSM-550-B4-11-C-D | 1 - 10 Bar | 0.3 - 1.3 Bar | 16 Bar |
| RT-5 PB | PSM-550-B6-11-C-D | 4 - 17 Bar | 1.2 - 4 Bar | 25 Bar |
| RT-117 PB | PSM-550-B7-11-C-D | 10 - 30 Bar | 1 - 4 Bar | 45 Bar |
This pressure switch is highly reliable and is ideal for various industrial control applications.
