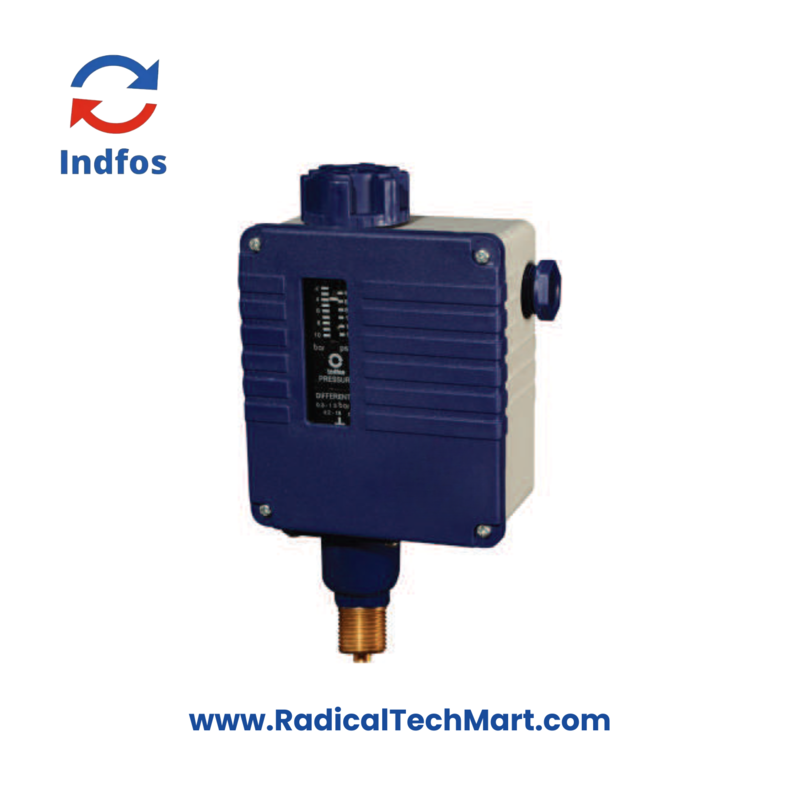

PSM-550-B7-41-C-D
Non-returnable
₹2,240.00
Product Details
The PSM-550-B7-41-C-D is a pressure switch designed for industrial control and monitoring applications. It is capable of handling loads up to AC 230V, 10A and is suitable for use with non-corrosive media such as oil, water, and air. Typical applications include pumps, lubrication systems, and hydraulic systems.
Key Features:
- Non-repeatability: ≤ 1%
- Pressure Setting Range: Various options available
- Sensing Element: 304 Stainless Steel (SS) Bellows with a brass pressure connector
- Switching Type: 1 SPDT (Single Pole Double Throw)
- Rating: 15A, 250 VAC
- Connection Type: 3/8" BSP (British Standard Pipe)
Model Variants:
| Old Model | New Model | Setting Range | Differential Range | Max Pressure |
|---|---|---|---|---|
| RT-1 SB | PSM-550-C1-41-C-D | (-) 0.8 - 5 Bar | 0.5 - 2 Bar | 25 Bar |
| RT-121 SB | PSM-550-V1-41-C-D | (-) 1 - 0 Bar | 0.09 - 0.4 Bar | 7 Bar |
| RT-112 SB | PSM-550-B1-41-C-D | 0.1 - 1.1 Bar | 0.07 - 0.16 Bar | 7 Bar |
| RT-110 SB | PSM-550-B2-41-C-D | 0.2 - 3 Bar | 0.12 - 0.75 Bar | 7 Bar |
| RT-200 SB | PSM-550-B3-41-C-D | 0.2 - 6 Bar | 0.25 - 1.2 Bar | 25 Bar |
| RT-116 SB | PSM-550-B4-41-C-D | 1 - 10 Bar | 0.3 - 1.3 Bar | 25 Bar |
| RT-5 SB | PSM-550-B6-41-C-D | 4 - 17 Bar | 1.2 - 4 Bar | 25 Bar |
| RT-117 SB | PSM-550-B7-41-C-D | 10 - 30 Bar | 1 - 4 Bar | 45 Bar |
| RT-18 SB | PSM-550-B5-41-C-D | 2 - 17 Bar | 0.3 - 2 Bar | 25 Bar |
This pressure switch is ideal for a variety of industrial applications requiring precise monitoring and control of pressure.
