S2PR-P3GBL Autonics Push Button

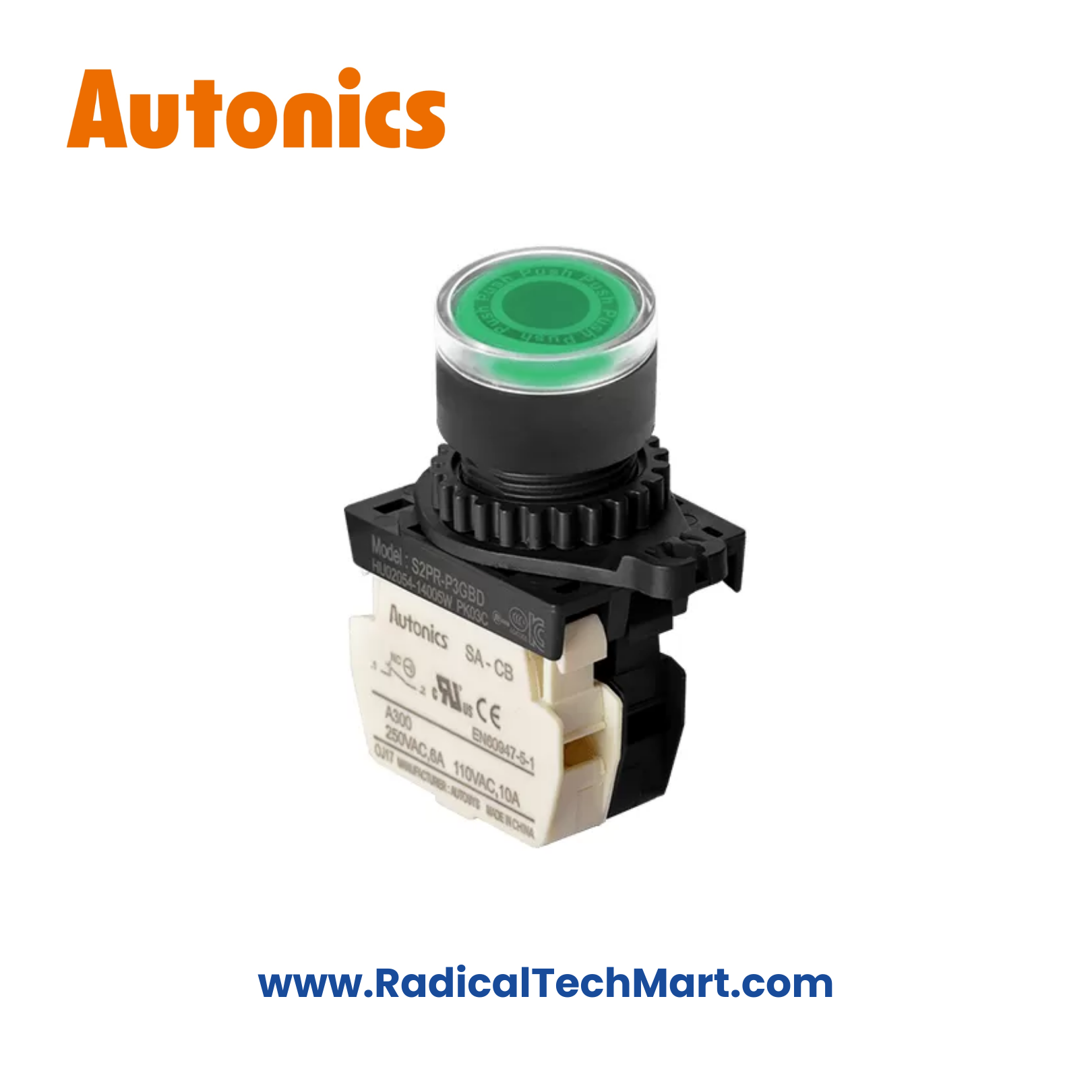

Autonics S2PR-P3GBL Illuminated Push Button Switch (Ø22 mm, Green, Momentary, 1NO+1NC)
The Autonics S2PR-P3GBL is a Ø22 mm illuminated green push button with momentary operation and 1NO+1NC contacts.
Designed for control and visual status indication in industrial automation and electrical control panels.
The Autonics S2PR-P3GBL is a Ø22 mm panel-mount illuminated push button switch designed for industrial control and automation applications. It features a green actuator with integrated LED illumination and a 1NO+1NC contact configuration, enabling both control and clear visual indication.
Built on the Autonics S2 modular platform, this push button is ideal for OEM machinery, automation panels, and electrical control cabinets requiring reliable operator interface components.
Key Features
Ø22 mm standard panel mounting
Green illuminated actuator for clear status indication
Momentary (spring-return) operation
1NO + 1NC contact configuration
Modular S2 series construction
High visibility and long service life
Suitable for continuous industrial use
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Illuminated Push Button Switch |
| Model | S2PR-P3GBL |
| Mounting Diameter | Ø22 mm |
| Actuator Color | Green |
| Illumination Color | Green LED |
| Operation Type | Momentary |
| Contact Configuration | 1NO + 1NC |
| Rated Voltage (Contacts) | Up to 250 VAC |
| Rated Current (Contacts) | Up to 5 A |
| LED Supply Voltage | 12–24 V AC/DC or 110–220 VAC (by LED block) |
| Protection Rating | IP65 (front side) |
| Operating Temperature | -25 to +55 °C |
Applications
Industrial automation panels
Operator control stations
Start & status indication circuits
OEM machinery
Packaging and processing machines
Electrical control cabinets
What’s in the Box?
Autonics S2PR-P3GBL Push Button Head
Contact block (1NO + 1NC)
LED block (green, as per model)
Mounting nut/collar
Product leaflet
FAQ
Q1. What does “P3GBL” indicate in the model number?
P3 indicates 1NO+1NC contacts, G indicates a green actuator, and BL denotes an LED-illuminated type.
Q2. Is this push button momentary or maintained?
It is a momentary (spring-return) push button.
Q3. Can LED voltage be selected?
Yes. LED blocks are available in 12–24 V AC/DC or 110–220 VAC options.
Q4. Does it fit standard control panels?
Yes. It fits standard Ø22 mm panel cutouts.
Q5. Is it suitable for industrial environments?
Yes. Designed for long mechanical and electrical life in industrial conditions.
