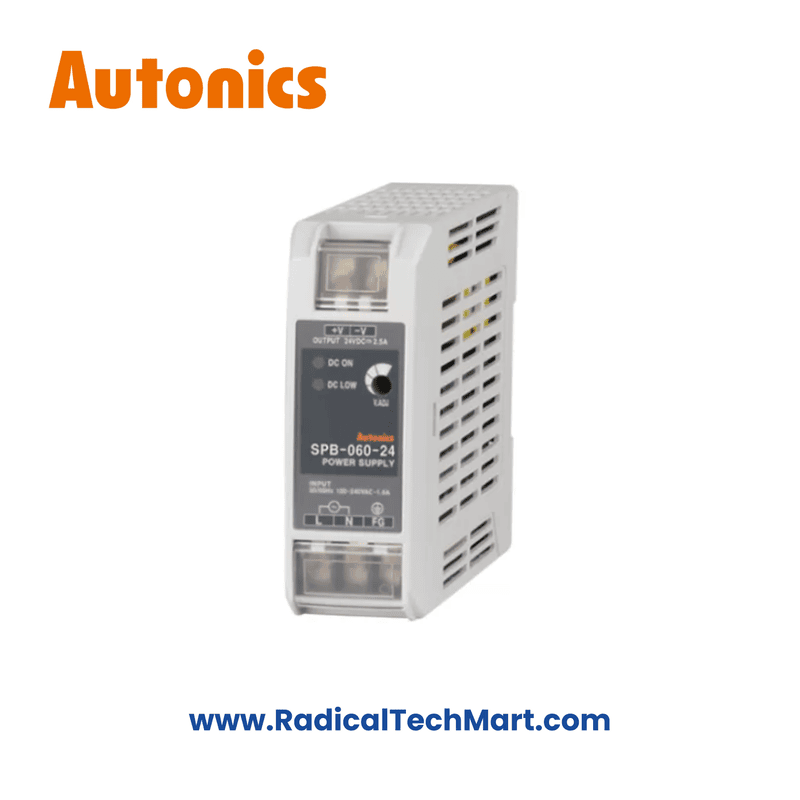

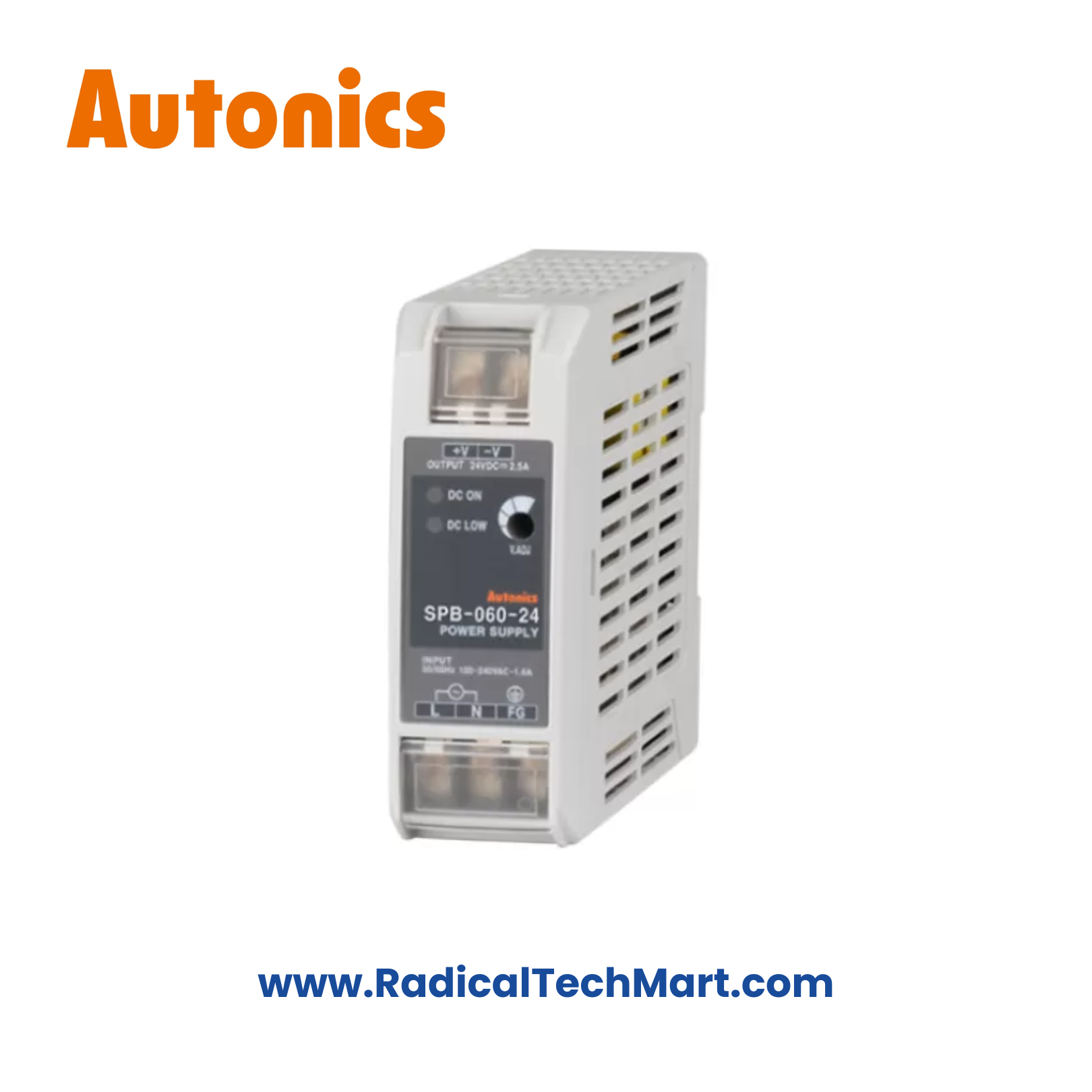

SPB-060-24 Autonics Power Supply
Non-returnable
₹3,206.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | SPB-060-24 |
| Output power | 60W |
| Input Voltage | 100-240VAC~ 50/60Hz |
| Permissible voltage | 85-264VAC~ 50/60Hz, 120-370VDC |
| Output Voltage | 24VDC |
| Output Current | 2.5A |
| Mounting type | DIN Rail |
| Protection | Over-Current/Inrush Current/Output Short-Circuit/Output Low-Voltage Indicate |
| Approval | CE |
| Input Frequency | 50/60Hz |
| Input Efficiency 100VAC~ | 0.84 |
| Input Efficiency 240VAC~ | 0.86 |
| Input Current consumption 100VAC~ | 1.21A |
| Input Current consumption 240VAC~ | 0.65A |
| Output type Voltage adjustment range | Max. ±5% |
| Output type Input fluctuation ratio | Max. ±0.5% |
| Output type Load fluctuation ratio | Max. ±1% |
| Output type Ripple & Ripple noise | Max. ±1% |
| Protection structure | IP20(IEC standard) |
| Environment Ambient temperature | -10 to 50℃, storage: -25 to 65℃ (surrounding air temp.: Max. 40?) |
| Environment Ambient humidity | 25 to 85%RH, storage: 25 to 90%RH |
| Weight | Approx. 347g(approx. 274g) |
