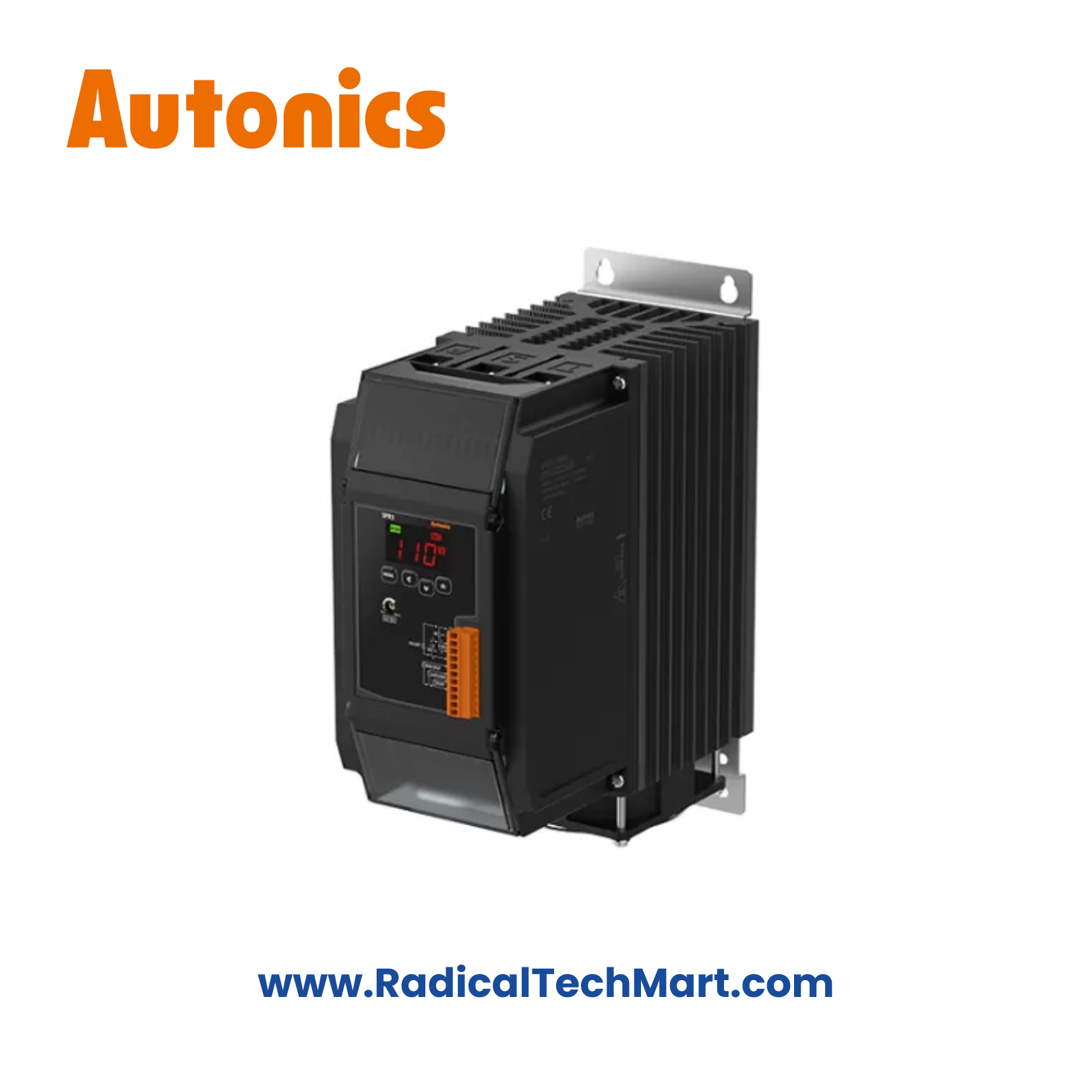

SPR3-470NFF Autonics Power Controller
Non-returnable
₹51,950.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model Number | SPR3-470NFF |
| Control phase | 3-phase |
| Control method | ᆞAuto control: DC4-20mA, 1-5VDC, ON/OFF contact (no-voltage input), pulse voltage (5-12VDC) ᆞManual control: outside adjuster (10kΩ), inside adjuster (output limit) |
| Power supply | 100-240VAC~ 50/60Hz |
| Min. load current | 1A |
| Allowable voltage range | 90 to 110% of rated voltage |
| Power consumption | Max. 22VA |
| Display method | 3-digit 7-segment LED |
| Indicator | ᆞOperation indicator/Manual control indicator: green LED ᆞAlarm indicator/output indicator/unit (V, A) indicator: red LED |
| Control method | ᆞPhase control: normal control mode, constant current/constant voltage/constant power feedback control mode ᆞCycle control: fixed cycle control mode ᆞON/OFF control |
| Applied load | ᆞPhase control, ON/OFF control: resistance load, inductive load ᆞCycle control: resistance load |
| Environment Ambient temperature | -10 to 55℃, storage: -20 to 80℃ |
| Environment Ambient temperature | 0 to 50℃, storage: -25 to 65℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 5kg(approx. 4.2kg) |
