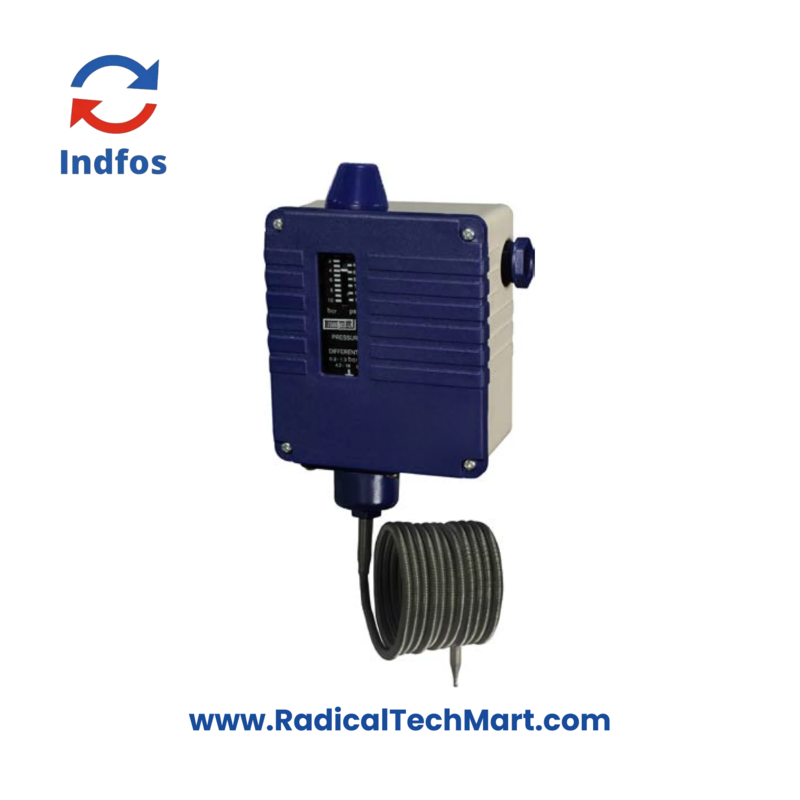

TSM-550-T1-5-C-S-D

The WIKA INDFOS TSM-550-T1-5-C-S-D Temperature Switch is a reliable and precise solution for industrial temperature control applications. It features a wide adjustable range and a snap-action switch to ensure accurate monitoring and alarm functionality. Its weatherproof design makes it suitable for outdoor installations, and it is ideal for various applications including pumps, HVAC systems, turbines, and more. With a 230V AC supply and 10A load capacity, it guarantees dependable performance in demanding environments.

General Specifications:

• Switch Enclosure:

  • Cover material: ABS Plastic
  • Housing material: DMC

• Performance:

  • Repeatability: ±1% of the full scale value
  • Permissible ambient temperature: -40°C to +70°C
  • Permissible medium temperature: Refer to the range table

• Measuring System:

  • Vapor-filled thermal system with Phosphor bronze or Stainless Steel (SS) bellows

• Wetted Parts:

  • Copper bulb (standard)
  • Stainless Steel (SS) bulb (optional)

• Range:

  • Refer to ordering matrix for detailed specifications

• Switch Contacts:

  • One SPDT (Single Pole Double Throw) contact system

• Differential:

  • On-off differential: Adjustable

• Electrical Rating:

  • AC-1: 10A, 230V, 50/60 Hz
  • AC-15: 4A, 230V, 50/60 Hz
  • DC-13: 12W, 230V

• Electrical Entry:

  • 1/2" NPT(F)

• Ingress Protection:

  • IP67 rated (dust-tight and protected against immersion in water)

• Mounting Options:

  • Wall or panel mounting

• Weight:

  • Approx. 700 grams

Range Codes and Specifications:
