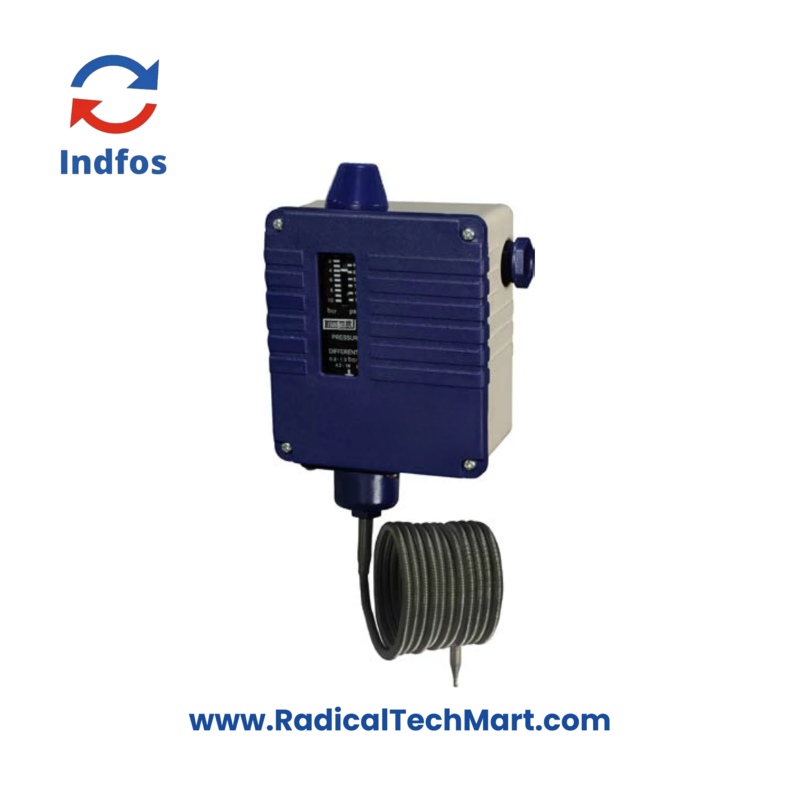

TSM-550-T2-5-C-S-D
Non-returnable
₹5,470.00
Product Details
A reliable solution for precise industrial temperature control, the TSM-550-T2-5-C-S-D ensures accurate monitoring and alarm applications. With its wide adjustable range, snap-action switch, and weatherproof design, it is ideal for outdoor use. This temperature switch is suitable for applications in pumps, HVAC systems, turbines, and more.
Key Features:
Switch Enclosure:
- Cover Material: ABS Plastic
- Housing Material: DMC
Specifications:
- Repeatability: ±1% of full scale value
- Permissible Ambient Temperature: -40°C to +70°C
- Permissible Medium Temperature: Refer to the range table
- Measuring System: Vapor-filled thermal system with phosphor bronze / SS bellows
- Wetted Parts:
- Copper bulb (standard)
- SS bulb (optional)
Range: Refer to the ordering matrix
Switch Contacts: One SPDT contact system
On-Off Differential: Adjustable
Electrical Ratings:
- AC-1: 10A, 230V, 50/60 Hz
- AC-15: 4A, 230V, 50/60 Hz
- DC-13: 12W, 230V
Electrical Entry: 1/2" NPT(F)
Ingress Protection: IP67 (Weatherproof)
Mounting Options: Wall or panel
Weight: Approx. 700 grams
Range Codes and Specifications:
| Range Code | Temperature Range (°C) | Capillary Length (m) | Adjustable Differential (°C) | Max. Working Temp. (°C) | Contact System |
|---|---|---|---|---|---|
| T1 | 25 ... 90 | 3, 5, 8 | 2.4 ... 10 | 300 | S-type, D-type microswitch |
| T2 | 70 ... 150 | 3, 5, 8 | 6 ... 25 | 215 | S-type, D-type microswitch |
| T3 | 120 ... 215 | 3, 5, 8 | 7 ... 30 | 260 | S-type, D-type microswitch |
| T4 | 150 ... 250 | 3, 5, 8 | 6.5 ... 30 | 300 | S-type, D-type microswitch |
| T5 | 200 ... 300 | 3, 5, 8 | 5 ... 25 | 350 | S-type, D-type microswitch |
