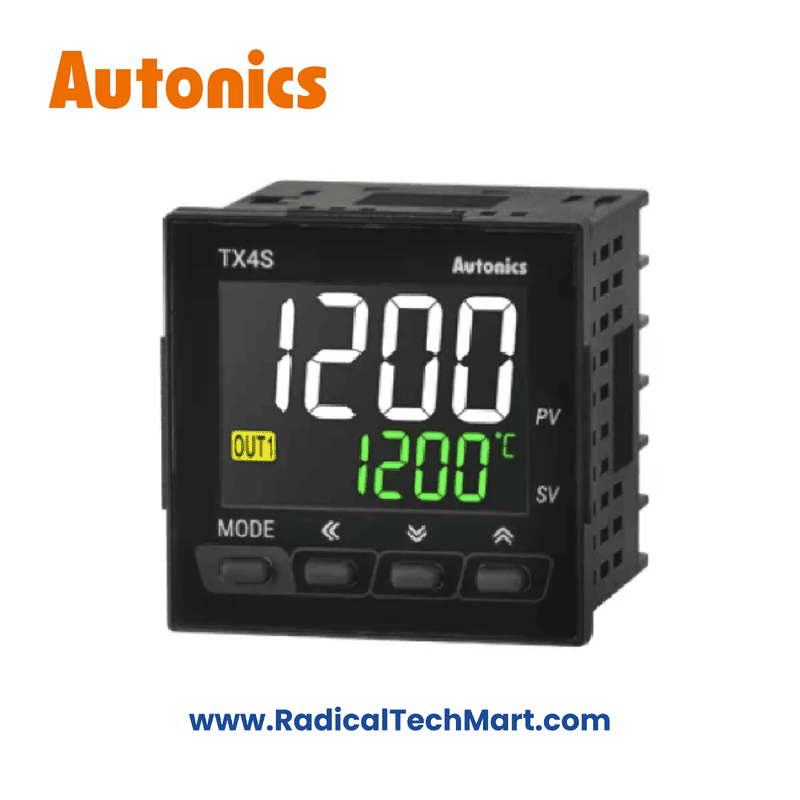

TX4S-14R Autonics Temperature Controller
Non-returnable
₹3,960.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | TX4S-14R |
| Display method | 4-digit 11-segment LCD |
| Control method | ON/OFF control, P, PI, PD, PID control |
| Input specification | Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100?, Cu50℃ |
| Sampling cycle | 50ms |
| Control output | Relay (250VAC~ 3A, 30VDC 3A) |
| Option output | Alarm 1 |
| Power supply | 100-240VAC~ 50/60Hz |
| Protection structure | IP50(front panel) |
| Approval | CE |
| Display accuracy RTD | •At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit |
| Display accuracy Thermocouple | •At room temperature(23?±5?):(PV ±0.3% or ±1?, select the higher one) ±1-digit •Out of room temperature:(PV ±0.5% or ±2?, select the higher one) ±1-digit |
| Hysteresis(adjustable sensitivity) | 1 to 100℃/℉(0.1 to 50.0℃/℉) variable |
| Proportional band | 0.1 to 999.9?/? |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | 0.5 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
| Environment Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation (mark:  , dielectric strength between primary circuit and secondary circuit: 3kV) |
| Weight | Approx. 146.1g(approx. 86.7g) |
