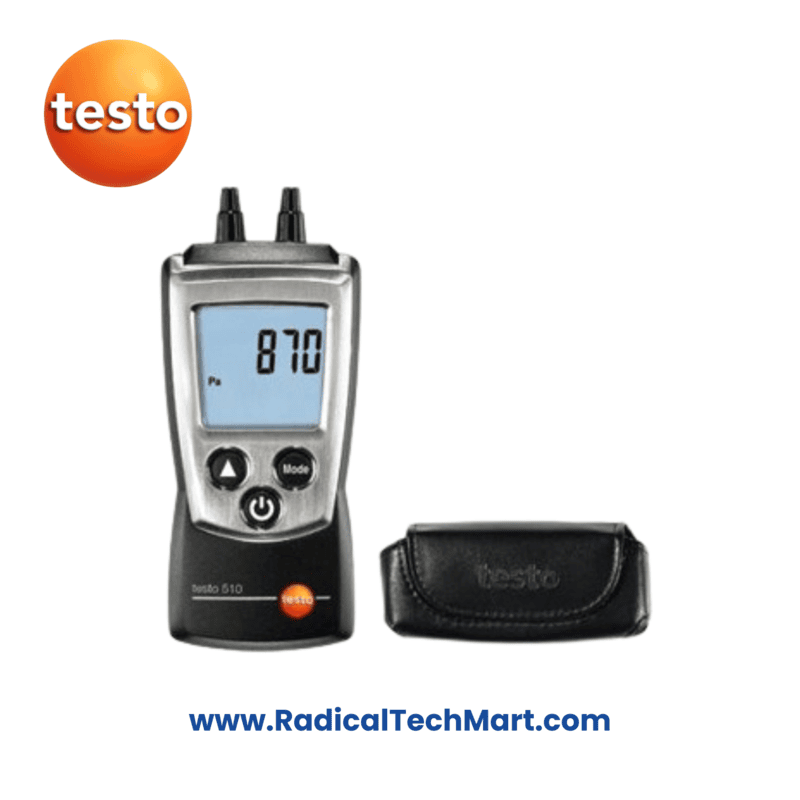

Testo 510 - Differential Pressure Meter

Testo 510 - Differential Pressure Meter presented in a clear, organized format:

• Purpose: Pocket-sized differential pressure meter for temperature and air density-compensated measurements.

• Display: Illuminated display for easy reading.

• Hands-Free Operation: Equipped with magnets on the rear, allowing for hands-free work.

• Battery Life: 50 hours (average, without display illumination).

• Selectable Units: 10 units available:

  • hPa, mbar, Pa, mmH₂O, inH₂O, inHg, mmHg, psi, m/s, fpm.

• Flow Measurement: Possible with an optional Pitot tube for flow measurement in ventilation ducts.

• Applications:

  • Differential pressure measurement on gas hot water heaters.
  • Filter measurement in air conditioning systems.
  • Flow measurement in ventilation ducts using a Pitot tube.

• Accessories: Includes a silicone connection hose and other useful accessories.

• Dimensions: 119 x 46 x 25 mm.

• Operating Temperature: 0 to +50 °C.

• Protection Class: IP40.

• Max Static Pressure: 500 mbar.

• Measuring Rate: 0.5 s.

• Battery Type: 2 AAA micro batteries.

• Storage Temperature: -40 to +70 °C.

• Weight: 90 g (with batteries and protective cap).

• Measuring Range: 0 to 100 hPa.

• Accuracy:

  • ±0.03 hPa (0 to 0.30 hPa).
  • ±0.05 hPa (0.31 to 1.00 hPa).
  • ±(0.1 hPa + 1.5% of mv) (1.01 to 100 hPa).

• Resolution: 0.01 hPa.

• Warranty: As per brand policy.
