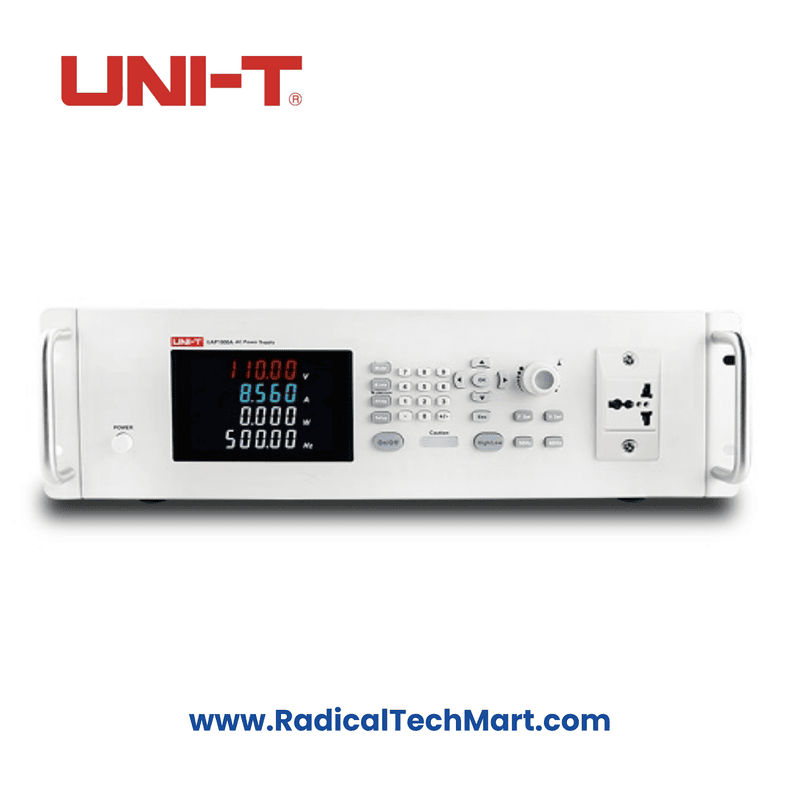

UNI-T UAP1000A Series AC Power Source

The UNI-T UAP1000A Series AC Power Source is a versatile and advanced device designed for various applications requiring stable and adjustable power outputs. Here are its key features:

• Output Capacity: 1000 VA
• Voltage Range:
  • Low: 150V
  • High: 300V
• Current Range:
  • Low: 8.4A
  • High: 4.2A
• Output Voltage Adjustment: Continuously adjustable, with a resolution of 0.01V.
• Current Limiting Protection: Automatically shuts off output if the current exceeds the set limit.
• Frequency Range: 45Hz to 250Hz, with a resolution of 0.01Hz.
• Waveform Technology: Utilizes advanced Direct Digital Frequency Synthesizer (DDS) technology for high-frequency stability and smooth waveform continuity.
• Monitoring: Embedded intelligent PC monitoring system available for easy monitoring and control.
• Communication Interface: Features an RS232C interface for remote control and monitoring.
• Readings Provided: The device displays voltage, active power, frequency, and power factor.
• Digital Key Input: High accuracy for voltage, frequency, and current settings.
• Preset Settings: 9 pre-programmed voltage, current, and frequency settings for easy access.
• Output Switching: One key switching between high and low voltage outputs.
• Output Delay: Configurable output delay as required.
• Size: 3U form factor for easy integration into standard racks.

The UNI-T UAP1000A is backed by a 3-year warranty for peace of mind.
