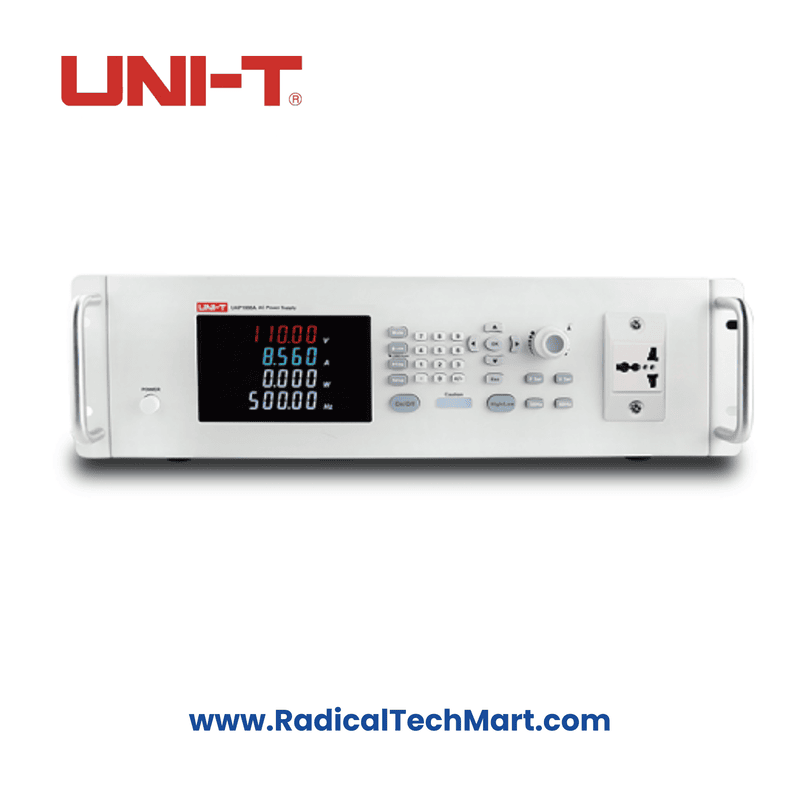

UNI-T UAP500A Series AC Power Source
The UNI-T UAP500A Series AC Power Source offers several advanced features designed for high precision and reliability:
Adjustable Output Voltage: The output voltage is continuously adjustable, ranging from 0-150V or 0-300V, with a resolution of 0.01V.
Current Limiting Protection: The device automatically shuts off the output if the current exceeds the preset limit, providing an added layer of protection.
DDS Technology: It employs an advanced Direct Digital Frequency Synthesizer (DDS) waveform generation technology, ensuring high frequency stability and smooth operation.
PC Monitoring System: An embedded intelligent PC monitoring system is provided for efficient tracking and management of the device.
Output Frequency: The output frequency is adjustable from 45Hz to 250Hz, with a fine adjustment step of 0.01Hz.
Communication Interface: The UAP500A features an RS232C communication interface for seamless integration with external devices.
Readings Display: It provides real-time readings of voltage, active power, frequency, and power factor for monitoring purposes.
Digital Key Input: The unit offers highly accurate digital key inputs for setting voltage, frequency, and current.
Memory Settings: Nine different groups of voltage, current, and frequency settings can be saved and recalled as needed, allowing for quick setup.
Voltage Output Switching: It allows easy switching between high and low voltage output with a single key press.
Customizable Output Delay: Users can set the output delay time according to their requirements.
Operation Mode: The power source operates in SPWM (Sinusoidal Pulse Width Modulation) mode for efficient performance.
Load Stability and Waveform Distortion: The device offers a load stability of 1% and a total harmonic distortion (T.H.D) of 3% at 120V for low-grade and 240V for high-grade, with a pure resistive load.
Frequency Stability: The device ensures high frequency stability with a deviation of only 0.01%.
Display Information: It displays key parameters, including voltage (Vrms), current (Arms), frequency (Hz), power (Wattage), and power factor (PF).
Resolution: Voltage is measured with a resolution of 0.01V, frequency with a resolution of 0.01Hz, and current with a resolution of 0.001A.
Warranty: The product comes with a warranty as per the brand's policy.
With its high precision, extensive features, and protection mechanisms, the UNI-T UAP500A is ideal for a variety of industrial and laboratory applications.
