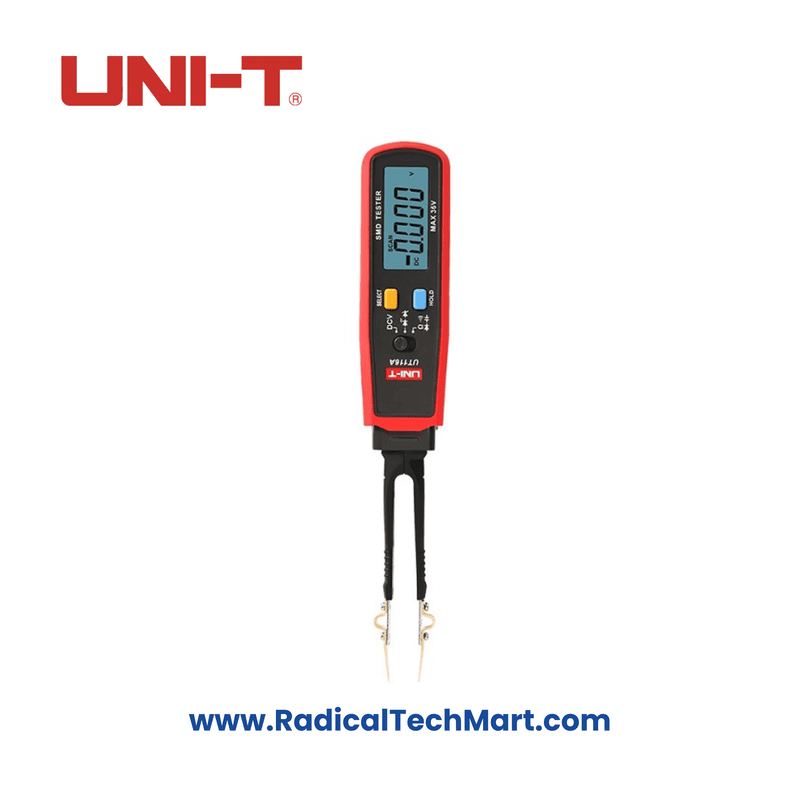

UNI-T UT116A SMD Tester

Key Features:

• Wide Measurement Capabilities:

  • DC Voltage Measurement: Up to 36V
  • Resistance: Up to 30MΩ
  • Capacitance: Up to 30mF
  • Continuity and Diode Measurement

• Innovative Design:

  • Rotatable pen tip (180°) for convenient reading and testing of diodes and LEDs.
  • Supports Zener diode polarity testing.

• Display and Accuracy:

  • Clear 3000-count display.
  • Diode test voltage: 3V.
  • LED and stabilivolt testing at approximately 21V/1mA.
  • Continuity test resistance: Less than 30Ω.

• Smart Functionality:

  • Auto-ranging and auto-scan identification for seamless operation.
  • Automatic power-off to conserve battery life.

General Characteristics:

• Power Supply: Powered by two 1.5V batteries (R03).
• Compact Display: 39mm x 20mm for clear readability.
• Lightweight and Portable: Weighs approximately 80g with dimensions of 204mm x 33mm x 25mm.
• Durable Design: Available in an attractive red and grey color combination.

Packaging and Accessories:
Comes with a gift box, English manual, and pre-installed batteries for immediate use.

Warranty:
Enjoy peace of mind with a 6-month warranty.
