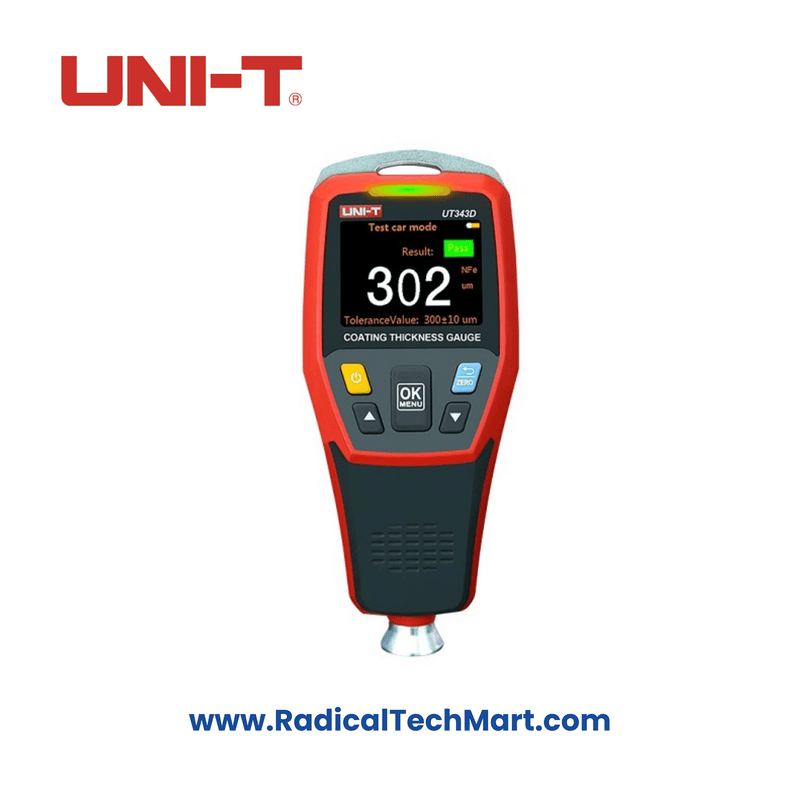

UNI-T UT343D Coating Thickness Gauge

The UT343D Coating Thickness Gauge is a versatile device designed to measure coating thickness on both ferrous and non-ferrous materials. It features a unique quick test mode that allows users to set a thickness range and utilize a 3-color LED and audio alarm to quickly identify if the coating falls within the preset range. This feature enhances work efficiency significantly.

Key Features:

• Measuring Range: 0–1250 µm
• Accuracy: ±(3%H+1) µm
• Resolution: 0.1 µm (0–99.9 µm) and 1 µm (100–1250 µm)
• Measurement Methods: Single and Continuous
• Measurement Modes: Max, Min, and Avg readings
• Supported Metal Types: Ferrous and Non-Ferrous

Display and Interface:

• 2.0-inch TFT LCD with a resolution of 320 x 240 pixels
• LCD brightness control and auto-rotating screen for ease of use
• Unit conversion feature (e.g., µm to mils)
• LED and audio alarms for quick feedback

Data Management:

• Stores up to 500 data groups for further analysis
• Comes with PC analysis software and USB communication support

Additional Features:

• Quick test mode for fast assessments
• Low battery indication and auto power-off functionality
• Powered by 2 x 1.5V AA batteries (included)
• Lightweight and compact design (153.5 mm x 64.5 mm x 41 mm; 175 g net weight)

Accessories Included:

• Micro USB interface cable
• Standard calibration piece
• Batteries
• Cloth carrying bag
• User manual

The UT343D is CE certified, ensuring safety and quality. It comes with a 1-year warranty and is packaged in an individual box for secure handling and storage.
