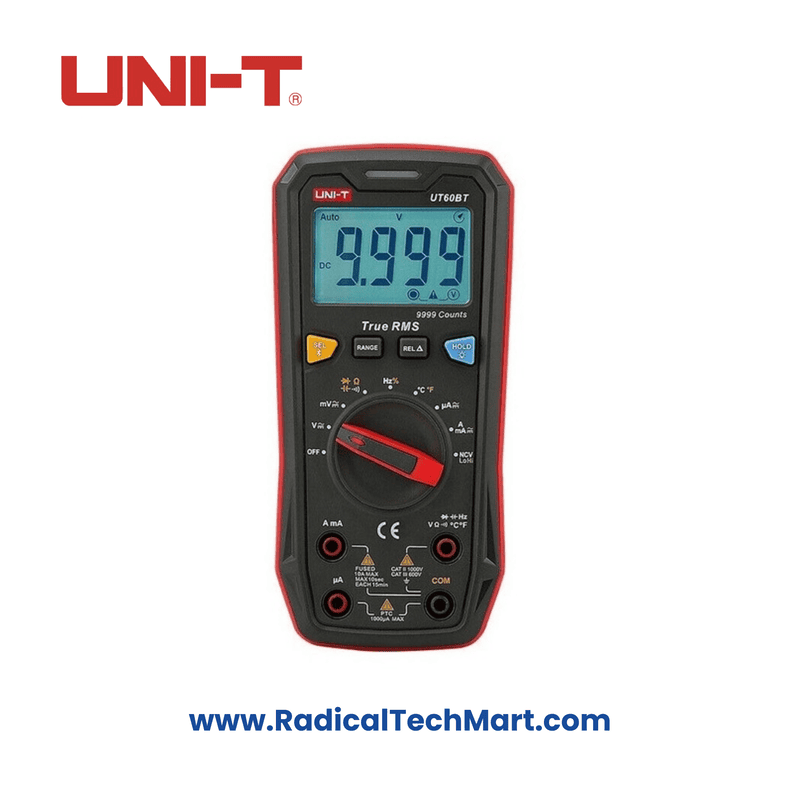

UNI-T UT60BT BlueTooth True RMS Digital Multimeter

The UT60BT Digital Multimeter is a versatile and feature-rich tool designed to meet diverse testing needs. With its True-RMS measurement and 9999-count resolution, it delivers precise readings. The device also includes non-contact voltage (NCV) detection, ensuring enhanced safety and convenience. Its auto-ranging capability allows users to measure up to 1000V AC/DC voltage, 10A AC/DC current, and 100MΩ resistance efficiently.

The CE-certified multimeter meets CAT II 1000V and CAT III 600V safety standards and features a rugged, double-injection housing for durability. A backlit display enables easy operation even in low-light environments.

Key Features:

• Bluetooth Connectivity: Facilitates data transfer and monitoring.
• Measurement Functions: Includes duty cycle, diode/continuity tests, temperature, and relative mode measurements.
• Visual Indicators: Three-color LED light for NCV, continuity, and battery status indications.
• User-Friendly Design: Backlit display, data hold function, and auto/manual range switching.
• Auto Power-Off: Conserves battery life by turning off after 15 minutes of inactivity.
• Safety and Durability: Rugged design with acousto-optic indications and low battery alerts.

Measurement Ranges and Accuracy:

• DC Voltage: Up to 999.9V with ±(0.5% + 3) accuracy.
• AC Voltage: Up to 999.9V with ±(0.8% + 3) accuracy.
• DC Current: Up to 10A with ±(0.8% + 3) accuracy.
• AC Current: Up to 10A with ±(1.0% + 3) accuracy.
• Resistance: Up to 99.99MΩ with ±(0.8% + 2) accuracy.
• Capacitance: Up to 9.999mF with ±(4.0% + 5) accuracy.
• Frequency: 99.99Hz to 9.999MHz with ±(0.1% + 5) accuracy.
• Duty Cycle: 0.1% to 99.9% with ±(3% + 5) accuracy.
• Temperature Measurement: Ranges from –40℃ to 1000℃ (–40°F to 1832°F) with ±4℃ (or ±5°F) accuracy.
