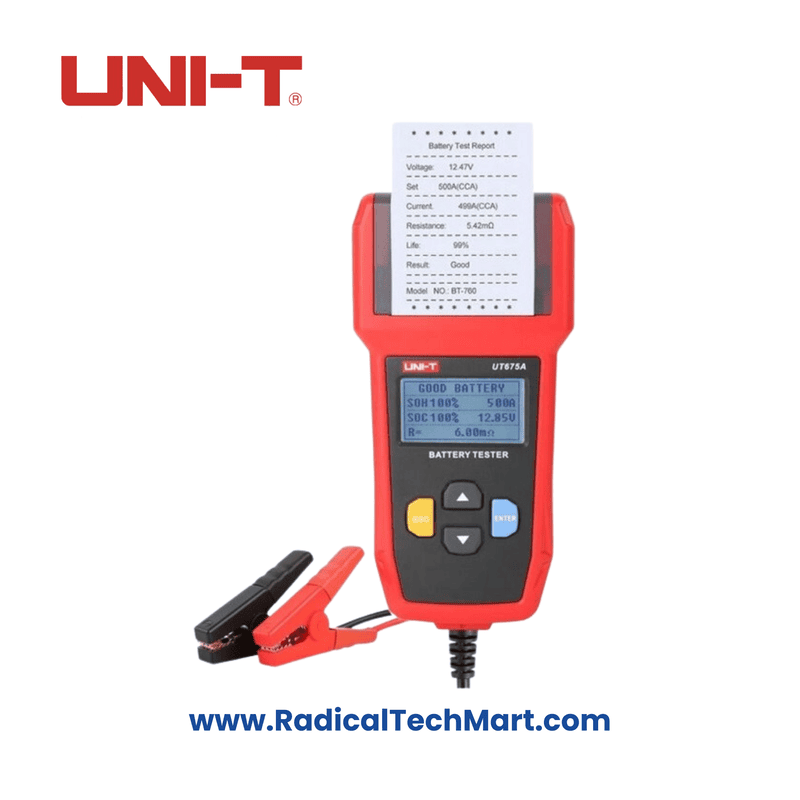

UNI-T UT675A Battery Tester

The UNI-T UT675A Battery Tester is a versatile tool designed to assess the health of automobile batteries with a capacity ranging from 3 to 250Ah. It is CE, FCC, and RoHS certified, making it a reliable choice for battery diagnostics. This tester offers several key features:

• Battery Tests: It is capable of performing 12V cranking lead-acid battery tests and tests on 12V/24V charging or cranking systems, with voltage ranges from 7 to 30V DC.
• Test Results: The device displays key battery metrics including battery capacity, voltage, resistance, and life, with a built-in Kelvin four-terminal test for accurate readings.
• Battery Standards: It supports 10 different battery standards such as CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, and AH.
• Wide Battery Compatibility: Compatible with various battery types, including ordinary lead-acid batteries, AGM flat plate and spiral batteries, GEL batteries, and EFB batteries.
• User-Friendly Interface: The tester features a 128x64 black and white lattice display and language options in both Chinese and English.
• Non-Invasive Testing: It allows testing without the need to disassemble the battery.
• LED Color Indicators: The device provides clear test result indications with LED color signals (UT673A model) and can print on-line, real-time test reports (UT675A model).
• Data Transfer and Reporting: It includes USB communication for data transfer and report generation, and comes with a built-in printer for immediate test reports.
• Additional Features: The tester includes over-voltage protection, reverse connection protection, and a prompt for poor contact. It also displays battery status, life, internal resistance, and capacity.
• Power and Portability: Powered by an external source, it is lightweight (413g) and compact in size (95mm x 47mm x 183mm), making it portable and easy to use in various environments.
• Warranty: The product comes with a one-year warranty.

Overall, the UNI-T UT675A is a comprehensive and easy-to-use battery tester for professionals seeking quick and reliable battery health assessments.
