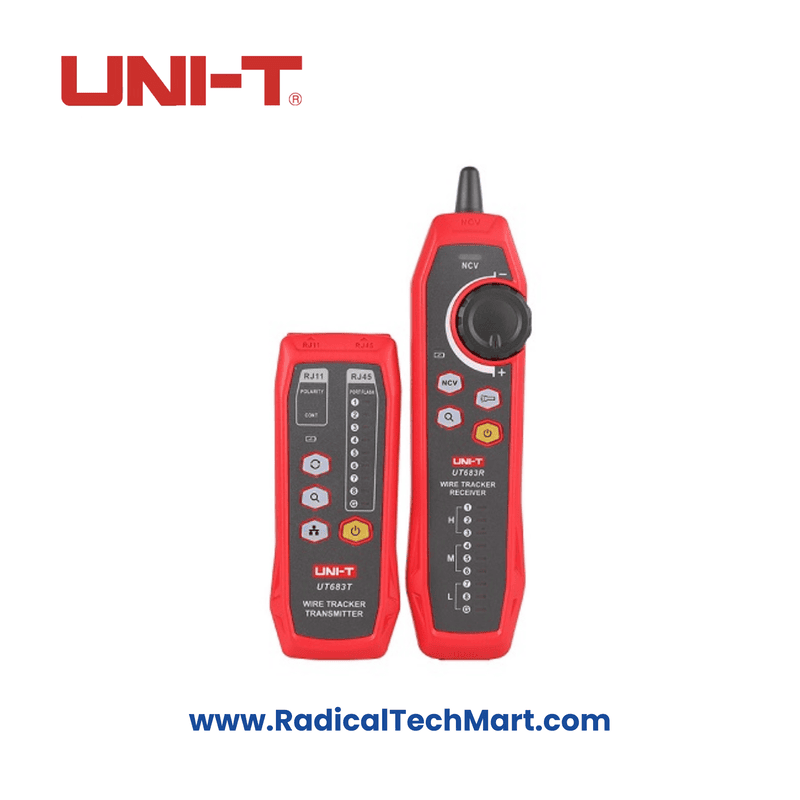

UNI-T UT683KIT Wire Tracker

The UT683KIT is an intelligent wire tracker that includes both a transmitter and a receiver. It is designed with strong anti-interference capabilities and can quickly and accurately locate target cables. This kit is equipped to automatically identify open circuits, shorts, and polarity issues, allowing for fast detection of cable failures.

Key Features:

• Line Function: Allows for precise tracking and identification of wiring.
• NCV Function: Non-contact voltage detection.
• Withstand Voltage: DC 60V tolerance.
• Transmitter Capabilities:
  • Port Flashing: Indicator for detecting active ports.
  • Wire Tracking: Enables easy tracing of cables.
  • Line Alignment: Helps in identifying the correct wiring path.
  • Open-Short Test: Identifies open or short circuits with a 10kΩ resistance.
  • Polarity Test: Detects polarity issues in circuits.
  • Operating Time: Over 8 hours of use.
• Receiver Capabilities:
  • Wire Tracking: Effective for RJ11 up to 3000m and RJ45 up to 100m.
  • NCV Function: Non-contact voltage detection.
  • Headset Jack: 3.5mm jack for audio output.
  • Low Battery Indication: Alerts when battery is low.
  • Operating Time: Over 5 hours of use.

Warranty: 1-year warranty for the kit.
