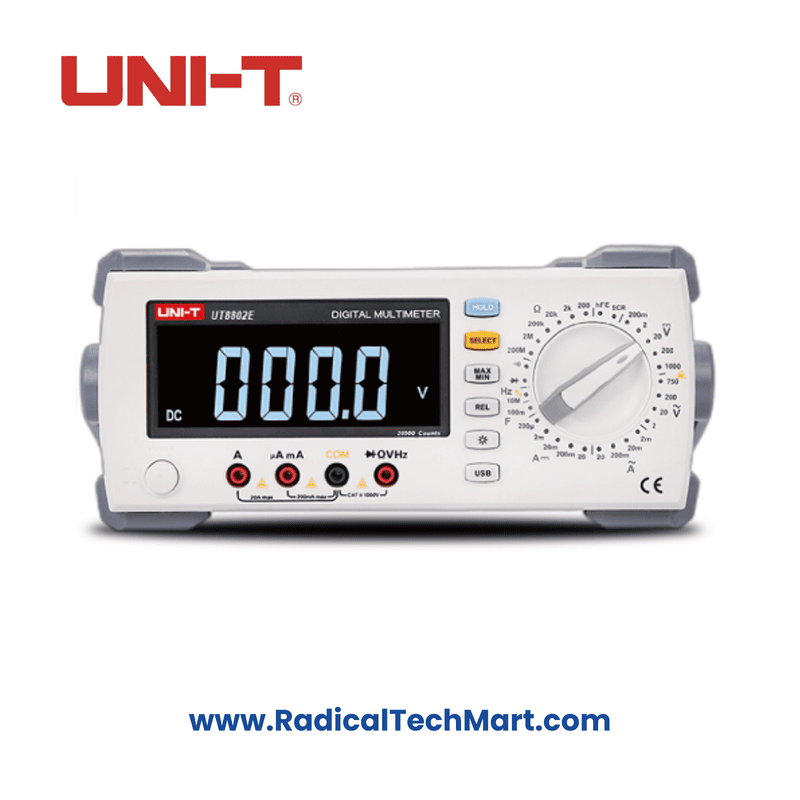

UNI-T UT8802E Digital Benchtop Multimeter - USB Interface

The UT8802E is a manual range benchtop digital multimeter designed for accurate and versatile measurements. It offers a 19999 display count with a large backlit screen, full-scale overload protection, and a unique design. This instrument is capable of measuring various parameters including AC and DC voltage, AC and DC current, resistance, frequency, capacitance, transistor hFE, diode (LED), SCR, and continuity.

Key Features:

• Reading Resolution: 4½ digits, with a maximum reading of 19999
• Measuring Rate: 3 readings per second
• DC Voltage Range: 200mV to 1000V
• DC Current Range: 200µA to 20A
• AC Voltage Range: 2V to 750V
• AC Current Range: 2mA to 20A
• Resistance Range: 200Ω to 200MΩ
• Capacitance Range: 20nF to 100mF
• Frequency Range: 200Hz to 10MHz
• Duty Cycle Range: 5% to 99%
• Mathematical Operations: Maximum, minimum, and relative value
• Interface: USB device for computer control software connection
• Frequency Response: 1KHz for frequency measurement
• Other Measurements: Diode, transistor (hFE), and thyristor (SCR) testing
• Global Mains Voltage Support: Suitable for use in various global voltage systems

Accuracy:

• DC voltage accuracy: ±(0.1% + 5) for 200mV to 1000V range
• AC voltage accuracy: ±(0.5% + 20) for 2V to 750V range
• DC current accuracy: ±(0.5% + 20) for up to 20A range
• AC current accuracy: ±(0.8% + 40) for 2mA to 20A range
• Resistance accuracy: ±(0.5% + 10) for 200Ω to 2MΩ range

Warranty: 1 Year
