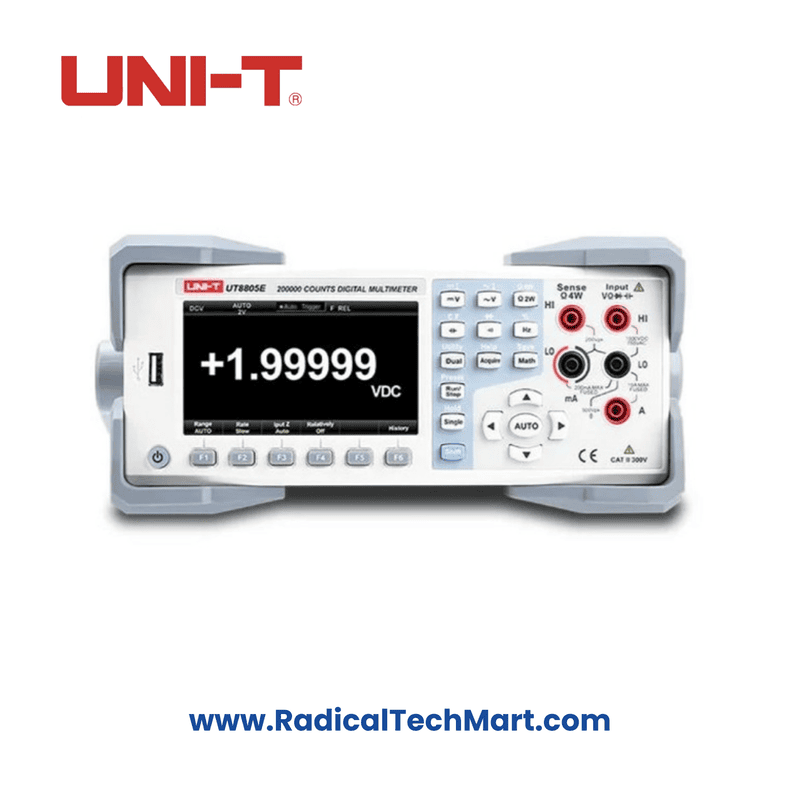

UNI-T UT8805E Benchtop Multimeter

The UT8805E is a high-precision, multi-functional benchtop digital multimeter, offering a true 5½-digit reading resolution and a sampling rate of up to 5,000 readings per second. It is designed for various measurement needs and includes a wide range of advanced features, including:

• Mathematical Functions: Supports multiple operations such as Maximum, Minimum, Average, Standard Deviation, Relative Measurement, dB/dBm, Pass/Fail, Bar Chart, Histogram, Trend Chart, and more.
• True RMS Measurements: Accurate AC voltage and current measurements, with voltage range up to 750V and current range up to 10A.
• Temperature Measurement: Compatible with thermocouples and thermal resistance sensors, with built-in cold junction compensation for accurate temperature readings.
• High-Speed Sampling: A sampling rate of 5k readings per second for fast and precise measurements.
• Large Storage Capacity: 1GB flash memory for data storage, supporting up to 10,000 data recalls.
• Clear Display: A 4.3-inch TFT LCD screen for easy readability.
• Comprehensive Interface Support: Includes USB, GPIB, RS-232C, and LAN interfaces, supporting USB-TMC, IEEE 488.2 standard, VXI11, and SCPI language for seamless integration with various systems.
• Multiple Measurement Functions: Measures DC and AC voltage (up to 1000V DC and 750V AC), DC and AC current (up to 10A), resistance (up to 100MΩ), capacitance (up to 2mF), frequency, cycle, continuity, and diode tests.
• Built-in Functions: Continuity buzzer, data hold, and auto-ranging capabilities for ease of use.
• Frequency Response: Capable of measuring frequencies up to 100kHz.
• Input Resistance: ≥10GΩ or 10MΩ for accurate measurements across a wide range of applications.
• Special Features: Includes features like Pass/Fail, relative value, minimum/maximum/average, histogram, trend chart, and bar chart operations.

The UT8805E is equipped with a standard power cord, USB interface cable, test leads, double female straight-through serial cable, product warranty card, and a backup fuse. It offers a 1-year warranty for peace of mind in professional environments.
