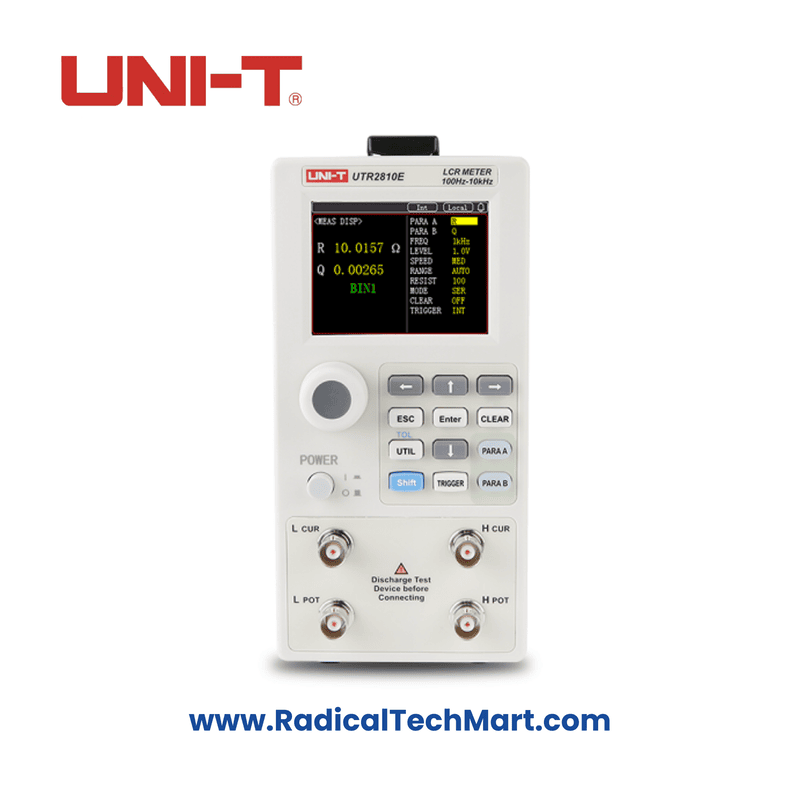

UNI-T UTR2811E Benchtop LCR Meter

The UTR2810 Series LCR Digital Bridge, launched by UNI-T, is a new-generation low-frequency component measuring instrument that combines a compact design with excellent performance. This device is lightweight, aesthetically pleasing, easy to use, and offers outstanding cost performance and stability, making it ideal for production line quality assurance, incoming inspection, and automated production environments.

Key Features:

• Display: 2.8" TFT true color LCD for clear visualization of measurements.
• Multiple Measurement Frequencies: Offers four frequency options: 100Hz, 120Hz, 1kHz, and 10kHz.
• Accuracy: High precision with an accuracy of 0.02%, and the highest measurement accuracy of 0.1%.
• Flexible Parameter Combinations: It allows for the free matching of main and auxiliary parameters, providing a total of 42 combinations.
• Test Speed: The test speed can be set to slow, medium, or fast, with the fastest rate being 33 tests per second.
• Automatic LCR Measurement: Simplifies testing with automatic LCR measurement functionality.
• Comparator Function: Provides four sorting options (4th gear), including BIN1, BIN2, BIN3, and NG for sorting and decision making.
• Data Analysis: The UTR2811E model supports sending sorting signals through the Handler interface and can be connected to an upper computer for detailed statistical analysis.
• External Triggering: Equipped with bus and external trigger functions for enhanced versatility in testing.
• Test Signal and Frequency: Measures at frequencies of 100Hz, 120Hz, 1kHz, and 10kHz, with a frequency accuracy of 0.02%.
• Measurement Range and Parameters: Supports a wide range of measurements for capacitance (Cp, Cs), inductance (Lp, Ls), resistance (R, Rp, Rs), impedance (Z), and other parameters. Capacitance measurements range from 0.00001pF to 999.999mF, inductance from 0.00001µH to 9.99999kH, and impedance from 0.00001Ω to 99.9999MΩ.
• Test Speed (ms/time): Fast mode operates at 30ms, medium speed at 170ms, and slow speed at 350ms.
• Trigger and Range Modes: Offers internal, manual, external, and bus trigger modes, along with hold or auto range settings.
• Mathematical Operations: Provides direct readings, AABS, and A% options for analysis.
• External Connections: Supports statistical analysis via the upper computer.
• Power and Voltage: Operates on 110V/220V 50/60Hz with a power consumption range of 20W-30W.
• Dimensions: The instrument measures 88mm x 174mm x 275mm and weighs 2.5kg.
• Warranty: Covered by the brand’s warranty policy.

This versatile tool is ideal for engineers and technicians working in environments that require precise component measurement and quick, reliable results.
