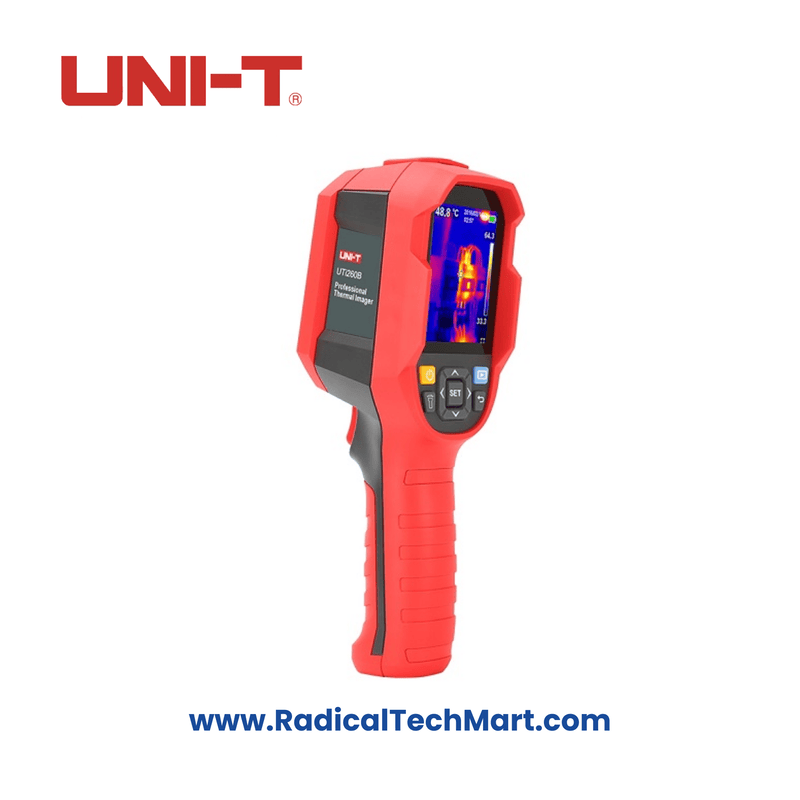

UNI-T UTi260B Thermal Imager

The UTi260B is a featured product from the UNI-T heavy-duty series of thermal cameras, designed for durability, versatility, and cost-effectiveness. It offers a wide temperature measurement range of -20℃ to 550℃ (-4℉ to 1022℉) and a high IR resolution of 256×192 pixels, making it a reliable tool for a variety of thermal imaging applications. The device includes seven color palettes and supports four display modes: thermal, visual image, fusion, and picture-in-picture (PiP).

Key Features:

• Durable and user-friendly design, built to withstand tough environments.
• 2.8” TFT display screen with a resolution of 320×240 pixels.
• IR resolution of 256×192 pixels for clear thermal imaging.
• Temperature measurement range: -20℃ to 550℃ (-4℉ to 1022℉).
• Auto alarm for detecting high or low temperatures.
• Auto tracking for identifying hot spots or cold spots.
• On-screen analysis with three measurement points.
• Ability to capture thermal images for detailed analysis.
• Supports four image modes: Thermal, Visual image, Fusion, and Picture-in-Picture (PiP).
• Digital camera with a resolution of 640×480 pixels for capturing detailed visible images.
• Seven color palettes including White hot, Black hot, Red hot, Ironbow, Lava, Rainbow, and Rainbow HC.
• LED flashlight for improved visibility in low-light conditions.
• Includes PC software for analysis and real-time image projection.
• Rechargeable Li-ion battery with up to 6 hours of operating time.
• 1/4” tripod mounting hole for stable mounting.
• IP65 protection for dust and water resistance, and tested to withstand a 2-meter drop.
• Communication interface via Type-C for easy connection to other devices.
• 16GB Micro SD card for image and data storage.

Technical Specifications:

• Field of View (FOV): 56° x 42°.
• Thermal Sensitivity (NETD): 50mk for precise temperature measurements.
• Spatial Resolution (IFOV): 3.8mrad for detailed thermal imaging.
• Focus: Focus-free for quick use.
• Frame Rate: 25Hz for smooth thermal imaging.
• Measurement Accuracy: ±2℃ or ±2%, whichever is greater.
• Emissivity: Adjustable from 0.01 to 0.99 for different materials.

Dimensions and Weight:

• Net size: 236mm x 75.5mm x 86mm.
• Net weight: 910g.

Accessories:

• Comes with a Micro SD card, Type-C USB cable, and a manual.

Warranty:

• 1-year warranty for peace of mind.

This thermal camera is an excellent choice for professionals needing a rugged, high-performance imaging tool that is easy to use and provides precise temperature measurements across a wide range of temperatures.
