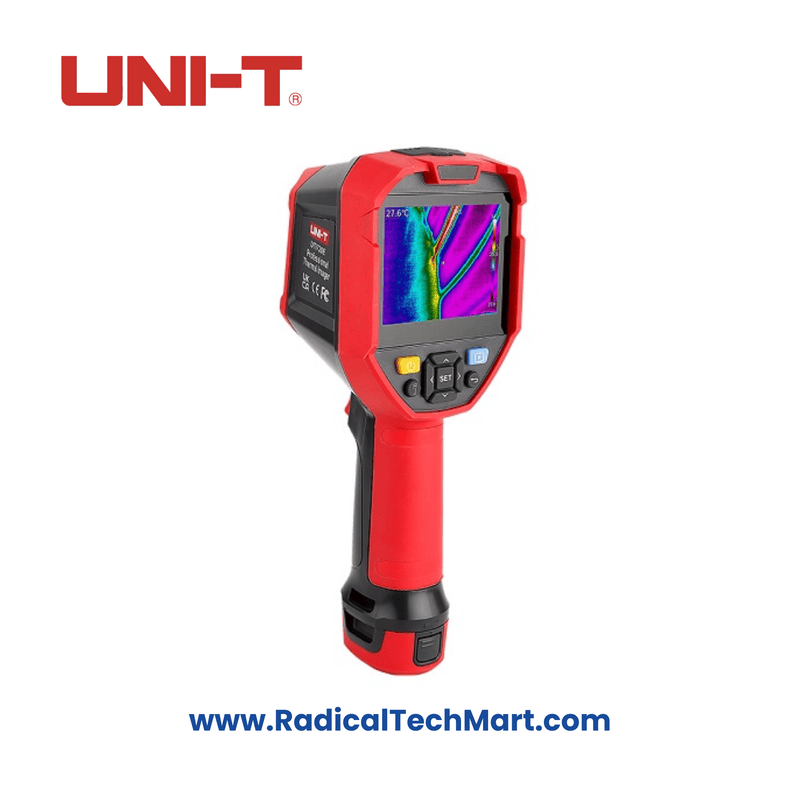

UNI-T UTi720E Enhanced Thermal Camera

The UTi720E is an advanced thermal camera with Wi-Fi capability, designed to provide high-quality thermal imaging and temperature measurement. Here are the key features and specifications:

• Display: It has a large 3.5” IPS display screen with a resolution of 640×480 pixels.
• Thermal Resolution: The thermal camera has an IR resolution of 256×192 pixels.
• Temperature Measurement Range: The UTi720E can measure temperatures from -20℃ to 550℃ (-4℉ to 1022℉).
• Accuracy: It offers an accuracy of ±2℃ or ±2% (whichever is greater).
• Emissivity: Adjustable from 0.01 to 1.00, with a default of 0.95.
• Thermal Sensitivity (NETD): ≤50mK.
• Spatial Resolution (IFOV): 3.8mrad.
• Field of View (FOV): 56°×42.2°.
• Frame Rate: The camera has a frame rate of ≤25Hz.
• Spectral Range: The thermal camera operates within a spectral range of 8~14µm.
• Focus: The UTi720E is focus-free for ease of use.

Features:

• Image Modes: The camera supports multiple modes including Thermal, Visual Image, Fusion, and Picture-in-Picture (PIP).
• On-Screen Analyzer: It includes analysis options such as 5 Points, 1 Line, 3 Rectangles, and 3 Circles.
• Color Palettes: It offers seven color palettes, including White Hot, Black Hot, Red Hot, Ironbow, HC Rainbow, Rainbow, and Lava.
• Digital Camera: The digital camera has a 2MP resolution and supports 2x and 4x digital zoom.
• Auto Features: Auto alarm for high/low temperatures and auto tracking for hot spot/cold spot detection.
• Isotherm: Provides six modes for isotherm: Auto, Ratio, Below, Above, Section, and Manual.
• LED Flashlight: Built-in LED flashlight for low-light conditions.
• Wi-Fi Connectivity: It supports Wi-Fi for mobile app integration, allowing real-time image sharing and photo management via QR code.
• Battery: The camera is powered by a 5200mAh detachable battery pack, which is rechargeable via Type-C and provides long operational hours.
• Mounting and Durability: The UTi720E features a 1/4" tripod mounting hole and is IP54 rated, offering protection against dust and water. It is also designed to withstand drops from up to 2 meters.
• Software: The camera includes PC software for analysis and real-time image projection, along with a mobile app for Wi-Fi connection.

Warranty: As per the brand's policy.

This thermal camera is ideal for a wide range of industrial and field applications, offering a robust and feature-packed solution for precise temperature measurement and thermal analysis.
