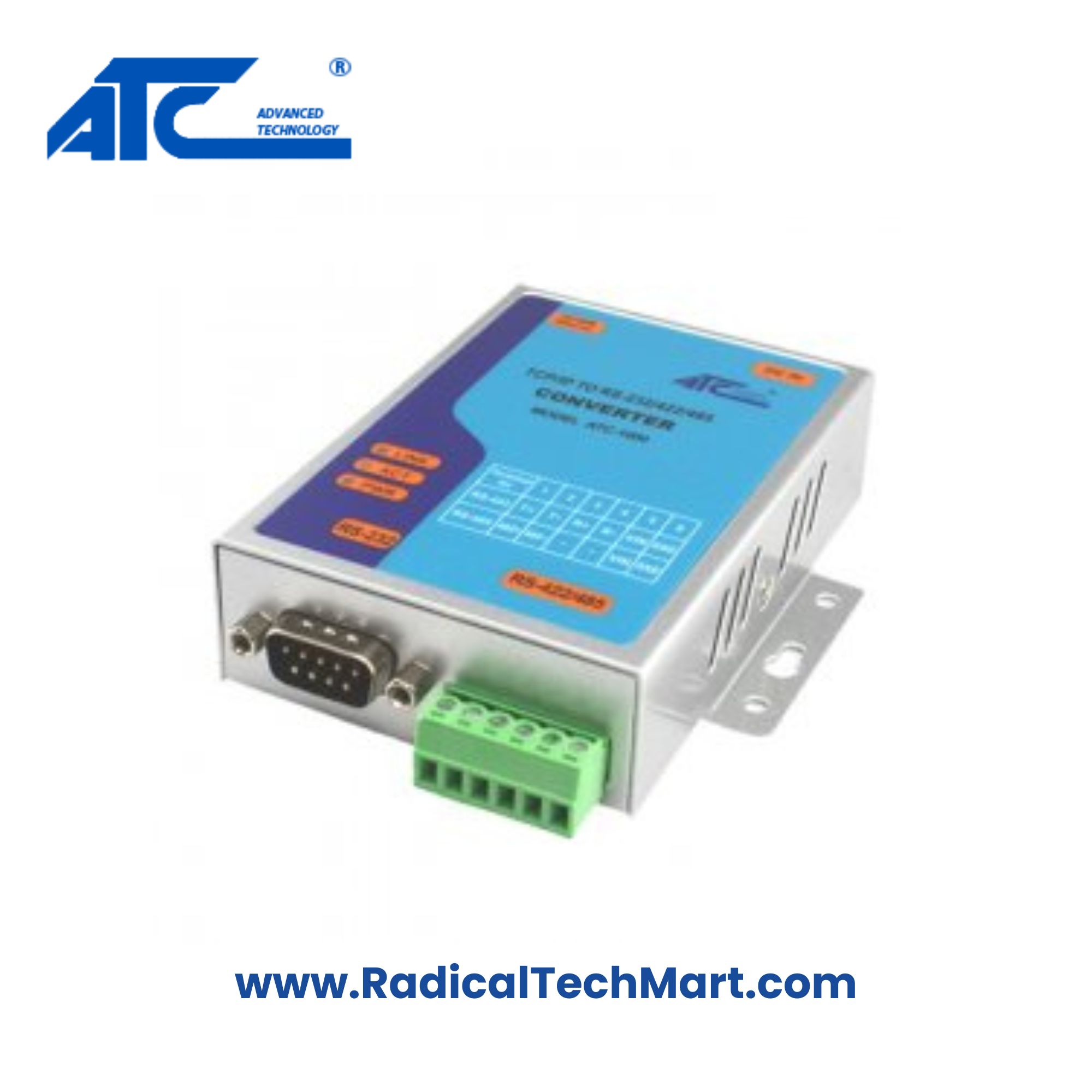

ATC-1000 RS232/RS485 to TCP/IP Converter
Product Summary:
The ATC-1000 is a compact, industrial-grade serial-to-Ethernet converter designed to connect RS232/422/485 devices to TCP/IP networks with high reliability and easy web-based configuration.
Key Features:
RS-232/422/485 3-in-1 serial interface
10/100Mbps auto-sensing Ethernet port
Supports TCP Server/Client, UDP, and Virtual COM
Web-based and Windows utility configuration
Automatic RS-485 data direction control
24VDC industrial power supply support
15KV ESD & 600W surge protection
Built-in Watchdog for system stability
DIN-Rail mounting, compact metal housing
CE, RoHS, and FCC certified
Applications:
Remote control of industrial automation equipment
Serial device networking in oil & gas, dams, and steel plants
Energy and utility monitoring systems
Smart card, banking, and telecom systems
SCADA and industrial control environments
Product Benefits:
Enables legacy serial devices to connect via modern TCP/IP networks
Saves wiring cost by integrating with Ethernet infrastructure
Reduces downtime with robust ESD/surge protection
Simple setup and secure configuration via web interface
Versatile use in harsh industrial environments
FAQs:
Q1: What devices can the ATC-1000 connect to a network?
A1: It can connect RS232, RS422, or RS485-based devices like PLCs, meters, barcode scanners, etc., to Ethernet networks.
Q2: Is the ATC-1000 suitable for outdoor or harsh environments?
A2: Yes, it operates from -20°C to 70°C and features surge and ESD protection, making it suitable for industrial use.
Q3: How can the device be configured?
A3: Configuration is possible via an intuitive web interface or through a Windows utility for fast and easy setup.
