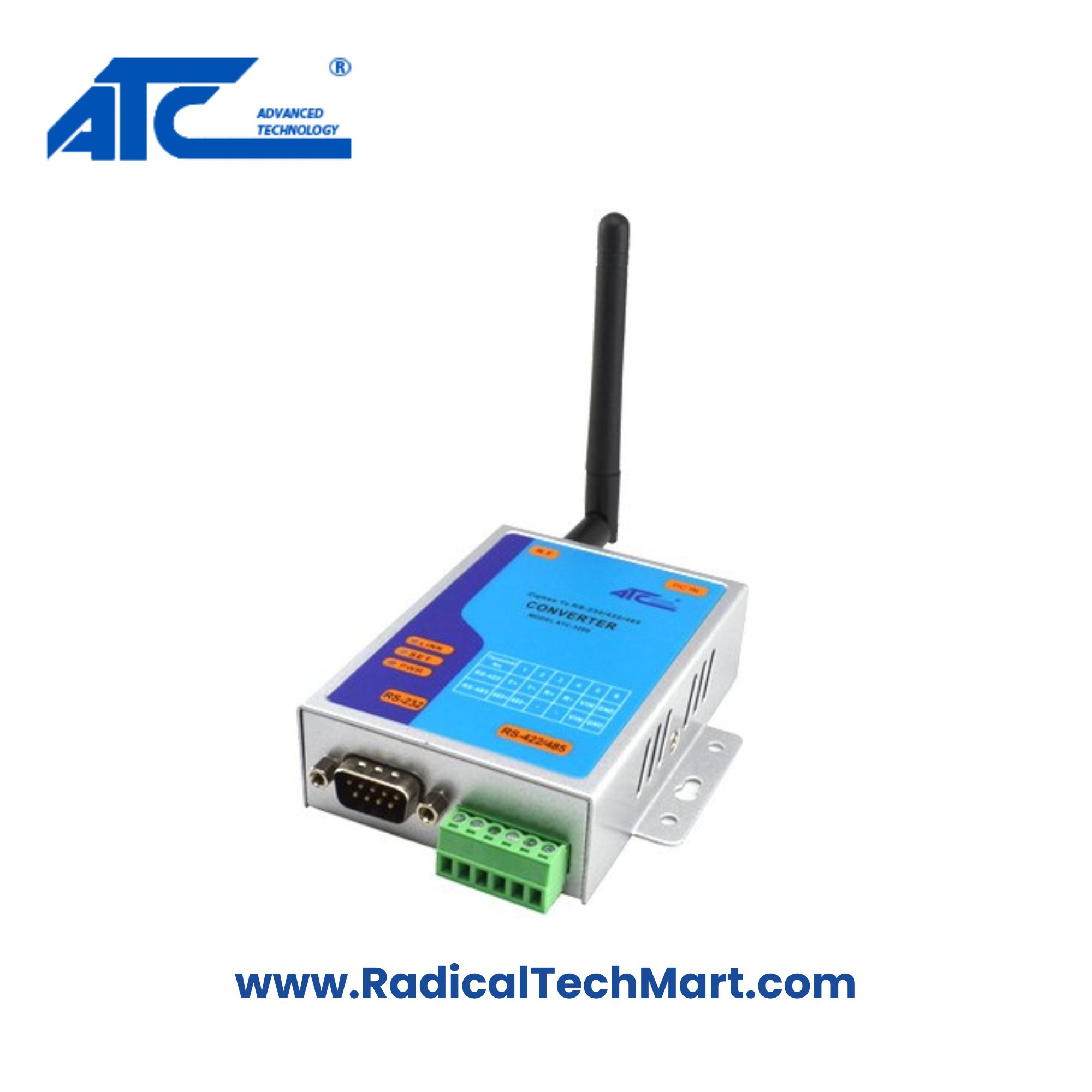

ATC-3200 Serial to Zigbee Wireless Converter

Product Summary:
The ATC-3200 is a cost-effective, integrated ZigBee converter that transforms RS-232/422/485 serial interfaces into wireless communication, ideal for industrial and automation applications.

Key Features:

• Operates on globally available 2.4GHz ISM band

• Compatible with RS-232/RS-422/RS-485 (3-in-1 interface)

• Supports 65535 node addresses for large networks

• Max. transmit power output: 12dBm

• IEEE 802.15.4 compliant ZigBee protocol

• Receiver sensitivity: –102dBm

• Wireless range up to 100 meters

• Industrial 24V DC input and optional power over serial

• Built-in terminator and AUTO-SEND™ for RS-485

• CE and RoHS certified

Applications:

• Wireless communication in industrial automation

• Remote sensor monitoring and control

• RS-232 cable replacement in factory floors

• Wireless SCADA systems

• Home and commercial automation using ZigBee

Product Benefits:

• Eliminates complex cabling with wireless connectivity

• Easy setup with powerful configuration tools

• DIN-rail mountable for industrial installation

• Rugged metal housing for durability

• Supports multiple power inputs for flexibility

FAQs:

Q1. What is the wireless range of the ATC-3200?
A1. The device supports up to 100 meters range in obstructed environments at 12dBm transmit power.

Q2. Can this converter work with RS-485 multi-drop networks?
A2. Yes, it supports both 2-wire and 4-wire RS-485 networks with built-in terminator and AUTO-SEND™ functionality.

Q3. Is the ATC-3200 suitable for outdoor use?
A3. While it supports a wide temperature range, it must be enclosed appropriately for direct outdoor use.
