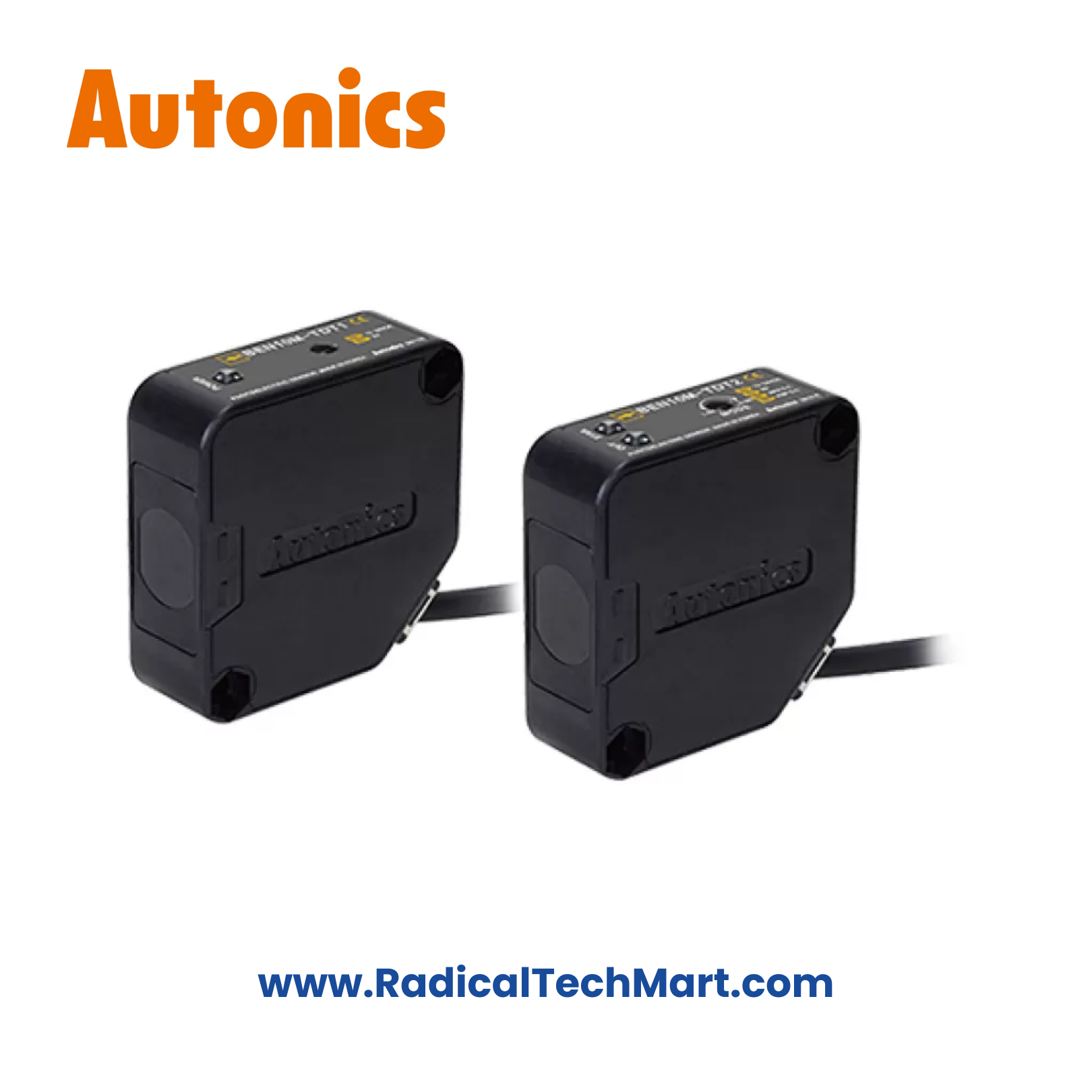

Autonics BEN10M-TDT Photoelectric Sensor
Autonics BEN10M-TDT Through-Beam Photoelectric Sensor (10 m, NPN/PNP)
Long-range through-beam photoelectric sensor with 10 m sensing distance and DC transistor output.
Ideal for accurate object detection in conveyors, material handling, and industrial automation.
The Autonics BEN10M-TDT is a through-beam type photoelectric sensor designed for long-distance and high-reliability object detection. With a 10-meter sensing range, fast response time, and DC solid-state (transistor) output, it is ideal for harsh industrial environments and high-speed automation lines.
Key Features
Through-beam sensing type (emitter + receiver)
Long sensing distance: up to 10 m
DC power, solid-state transistor output
NPN & PNP open-collector outputs
Light-ON / Dark-ON selectable
High immunity to ambient light & electrical noise
Fast response time (≤ 1 ms)
Rugged ABS housing for industrial use
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BEN10M-TDT |
| Sensing Type | Through-beam |
| Sensing Distance | Up to 10 m |
| Light Source | Infrared LED |
| Output Type | NPN & PNP open-collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 12–24 VDC ±10% |
| Load Current | ≤ 200 mA |
| Protection Rating | IP50 |
| Operating Temperature | −20 to +65 °C |
Applications
Conveyor object detection
Material handling systems
Packaging & bottling lines
Counting & positioning systems
Heavy-duty industrial automation
Long-distance detection zones
What’s in the Box?
Autonics BEN10M-TDT Emitter
Autonics BEN10M-TDT Receiver
Mounting brackets & bolts
Adjustment screwdriver
Instruction manual
FAQ
Q1. What type of sensor is BEN10M-TDT?
It is a through-beam photoelectric sensor with a separate emitter and receiver.
Q2. What is the maximum sensing distance?
Up to 10 meters, ideal for long conveyor lines.
Q3. Does it support both NPN and PNP outputs?
Yes, it provides simultaneous NPN & PNP open-collector outputs.
Q4. Is it suitable for high-speed applications?
Yes, with ≤ 1 ms response time, it suits high-speed detection.
Q5. Can it be used in dusty industrial areas?
Yes, through-beam sensors perform well in dusty environments compared to diffuse types.
