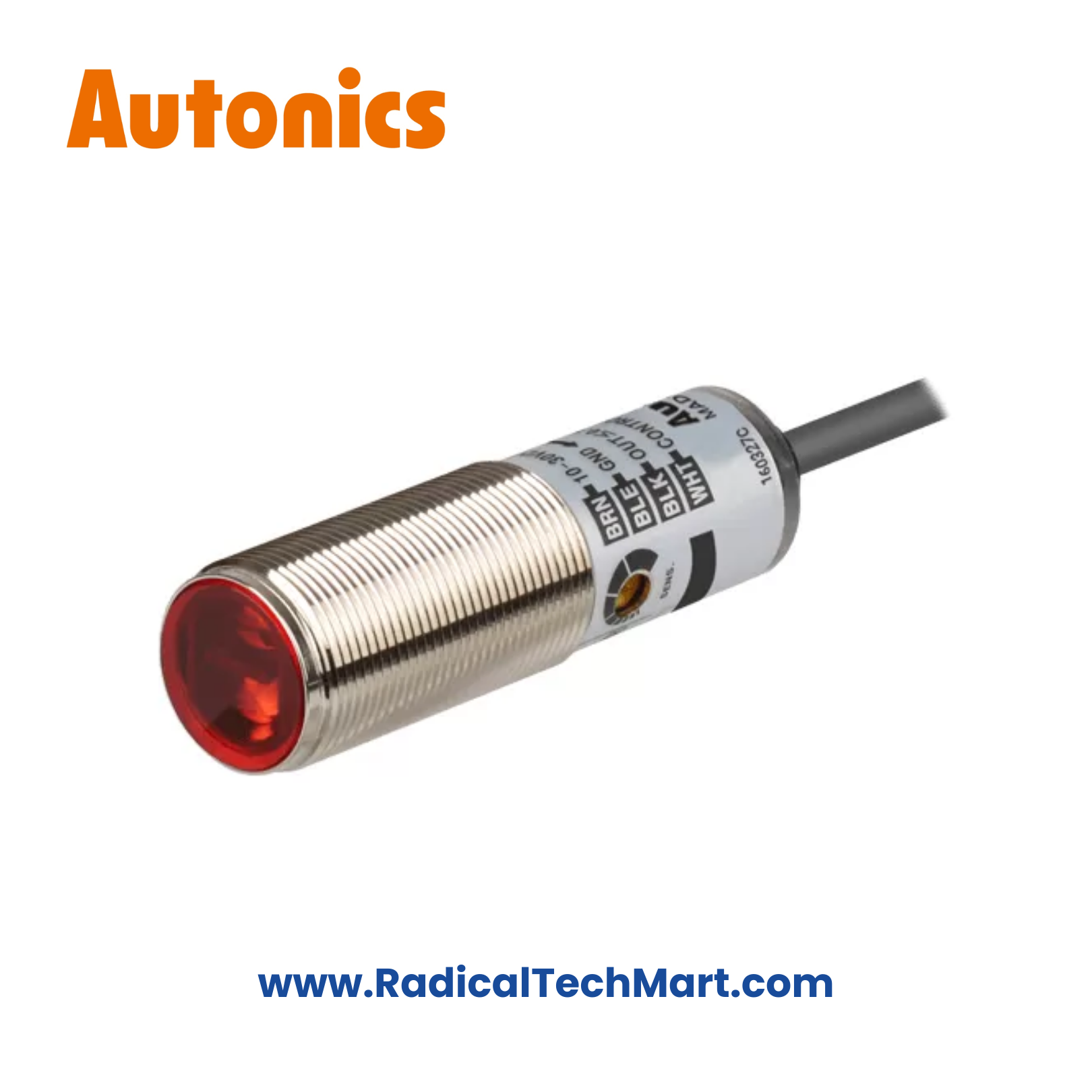

Autonics BRQM100-DDTA-P Photoelectric Sensor
Autonics BRQM100-DDTA-P Background Suppression Photoelectric Sensor (100 mm, PNP, M18, IP67)
M18 background suppression (BGS) diffuse photoelectric sensor with 100 mm fixed sensing distance and PNP open-collector output.
Provides accurate detection independent of object color or background distance for precision automation.
The Autonics BRQM100-DDTA-P is a background suppression (BGS) photoelectric sensor designed for high-precision object detection where background reflection must be ignored. With a fixed 100 mm sensing distance, PNP output, and IP67 protection, it is ideal for conveyors, packaging machines, and compact OEM automation systems.
Key Features
Background suppression (BGS) diffuse sensing
Fixed sensing distance: 100 mm
Stable detection regardless of object color or reflectivity
PNP open-collector output
Light-ON / Dark-ON selectable (control wire)
Built-in sensitivity adjustment
High immunity to ambient light and reflection
Compact M18 cylindrical metal housing
IP67 protection rating
Side-sensing optics for space-saving installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BRQM100-DDTA-P |
| Sensor Type | Photoelectric – Background Suppression |
| Sensing Distance | 100 mm (fixed) |
| Sensing Target | Opaque/translucent objects |
| Light Source | Red LED |
| Peak Wavelength | 660 nm |
| Output Type | PNP open collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 10–30 VDC ±10% |
| Load Current | ≤ 100 mA |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +60 °C |
Applications
Conveyor object detection
Precision positioning systems
Packaging & labeling machines
Part presence detection
OEM industrial automation
Factory automation lines
What’s in the Box?
Autonics BRQM100-DDTA-P Photoelectric Sensor
M18 fixing nuts (×2)
Adjustment screwdriver
Instruction manual
FAQ
Q1. What is background suppression sensing?
It detects objects at a fixed distance and ignores backgrounds beyond that range.
Q2. What is the sensing distance of this model?
A fixed 100 mm, independent of background distance.
Q3. Is this model NPN or PNP?
This variant provides PNP open-collector output.
Q4. Is detection affected by object color?
No, BGS technology minimizes color and reflectivity influence.
Q5. Is it suitable for harsh industrial environments?
Yes, with IP67 protection and metal housing.
