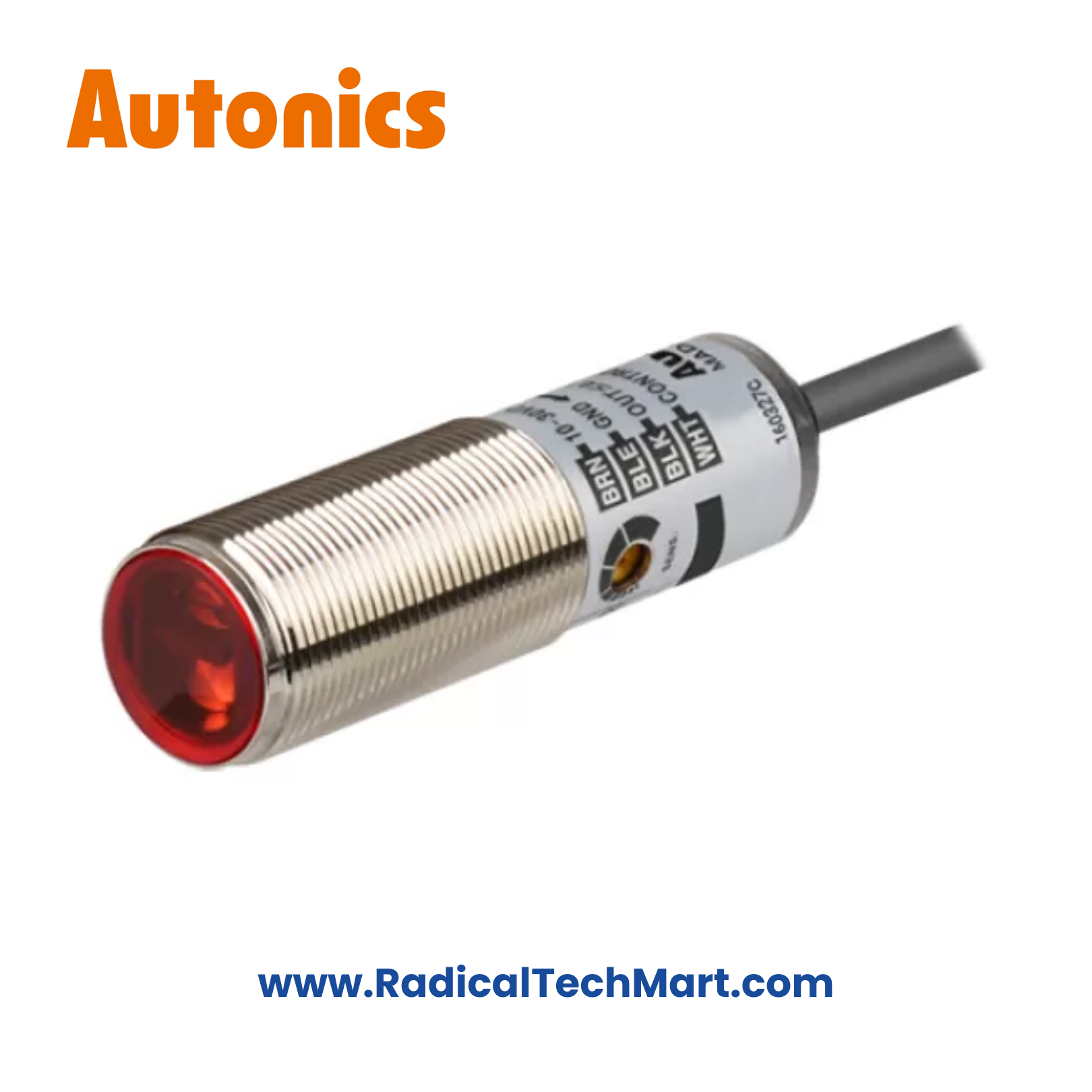

Autonics BRQM3M-PDTA Photoelectric Sensor
Autonics BRQM3M-PDTA Background Suppression Photoelectric Sensor (3 m, PNP, M18, IP67)
Medium-range background suppression (BGS) photoelectric sensor with up to 3 m sensing distance and PNP open-collector output.
Ensures accurate detection independent of background distance, ideal for conveyors and precision automation.
The Autonics BRQM3M-PDTA is a background suppression (BGS) photoelectric sensor designed for reliable object detection at medium distances while ignoring background surfaces. With up to 3 m sensing range, PNP output, and IP67 protection, it is ideal for conveyors, packaging machines, and OEM automation systems requiring precise and stable detection.
Key Features
Background suppression (BGS) sensing
Medium sensing distance: up to 3 m
Accurate detection regardless of background distance
PNP open-collector output
Light-ON / Dark-ON selectable (control wire)
High immunity to ambient light and reflections
Fast response for high-speed automation
Rugged M18 cylindrical metal housing
IP67 protection rating
Side-sensing optics for flexible installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BRQM3M-PDTA |
| Sensor Type | Photoelectric – Background Suppression |
| Sensing Distance | Up to 3 m |
| Light Source | Red LED |
| Peak Wavelength | 660 nm |
| Output Type | PNP open collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 10–30 VDC ±10% |
| Load Current | ≤ 100 mA |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +60 °C |
Applications
Conveyor object detection
Packaging & labeling machines
Material handling systems
Part presence detection
OEM industrial automation
Factory automation lines
What’s in the Box?
Autonics BRQM3M-PDTA Photoelectric Sensor
M18 fixing nuts (×2)
Adjustment screwdriver
Instruction manual
FAQ
Q1. What does “3M” indicate in this model?
It indicates a maximum sensing distance of up to 3 meters.
Q2. What is background suppression sensing?
It detects objects within a defined range and ignores background reflections beyond that distance.
Q3. Is this sensor affected by object color or reflectivity?
No, BGS technology minimizes color and reflectivity effects.
Q4. Is this model NPN or PNP?
This variant provides PNP open-collector output.
Q5. Is it suitable for harsh industrial environments?
Yes, with IP67 protection and a metal housing, it is suitable for demanding conditions.
