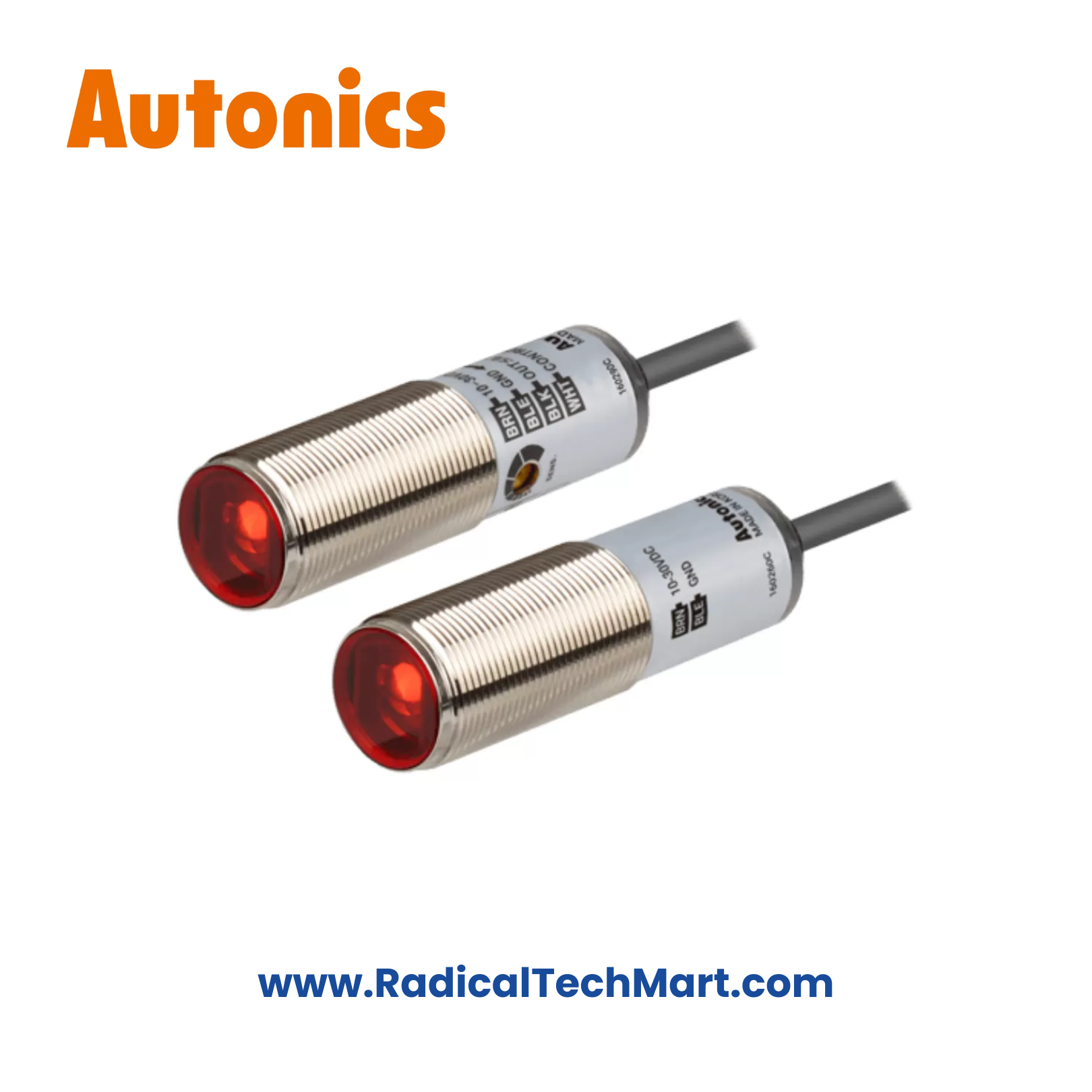

Autonics BRQM5M-TDTA Photoelectric Sensor
Autonics BRQM5M-TDTA Background Suppression Photoelectric Sensor (5 m, NPN, M18, IP67)
Medium-range background suppression (BGS) photoelectric sensor with up to 5 m sensing distance and NPN open-collector output.
Delivers reliable detection independent of background distance, ideal for conveyors and industrial automation.
The Autonics BRQM5M-TDTA is a background suppression (BGS) photoelectric sensor engineered for accurate object detection at medium distances while ignoring background surfaces. With up to 5 m sensing range, NPN output, and IP67 protection, it suits conveyors, packaging lines, and OEM automation systems where stable detection is essential.
Key Features
Background suppression (BGS) diffuse sensing
Medium sensing distance: up to 5 m
Accurate detection regardless of background distance
NPN open-collector output
Light-ON / Dark-ON selectable
High immunity to ambient light and reflections
Fast response for high-speed automation
Rugged M18 cylindrical metal housing
IP67 protection rating
Side-sensing optics for flexible installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BRQM5M-TDTA |
| Sensor Type | Photoelectric – Background Suppression |
| Sensing Distance | Up to 5 m |
| Light Source | Red LED |
| Peak Wavelength | 660 nm |
| Output Type | NPN open collector |
| Output Mode | Light-ON / Dark-ON |
| Response Time | ≤ 1 ms |
| Supply Voltage | 10–30 VDC ±10% |
| Load Current | ≤ 100 mA |
| Protection Rating | IP67 |
| Operating Temperature | −25 to +60 °C |
Applications
Conveyor object detection
Packaging & labeling machines
Material handling systems
Part presence detection
OEM industrial automation
Factory automation lines
What’s in the Box?
Autonics BRQM5M-TDTA Photoelectric Sensor
M18 fixing nuts (×2)
Adjustment screwdriver
Instruction manual
FAQ
Q1. What does “5M” indicate in this model?
It indicates a maximum sensing distance of up to 5 meters.
Q2. What is background suppression sensing?
It detects objects within a defined range and ignores background reflections beyond that distance.
Q3. Is detection affected by object color or reflectivity?
No, BGS technology minimizes color and reflectivity effects.
Q4. Is this model NPN or PNP?
This variant provides NPN open-collector output.
Q5. Is it suitable for harsh industrial environments?
Yes. IP67 protection and metal housing make it suitable for demanding conditions.
