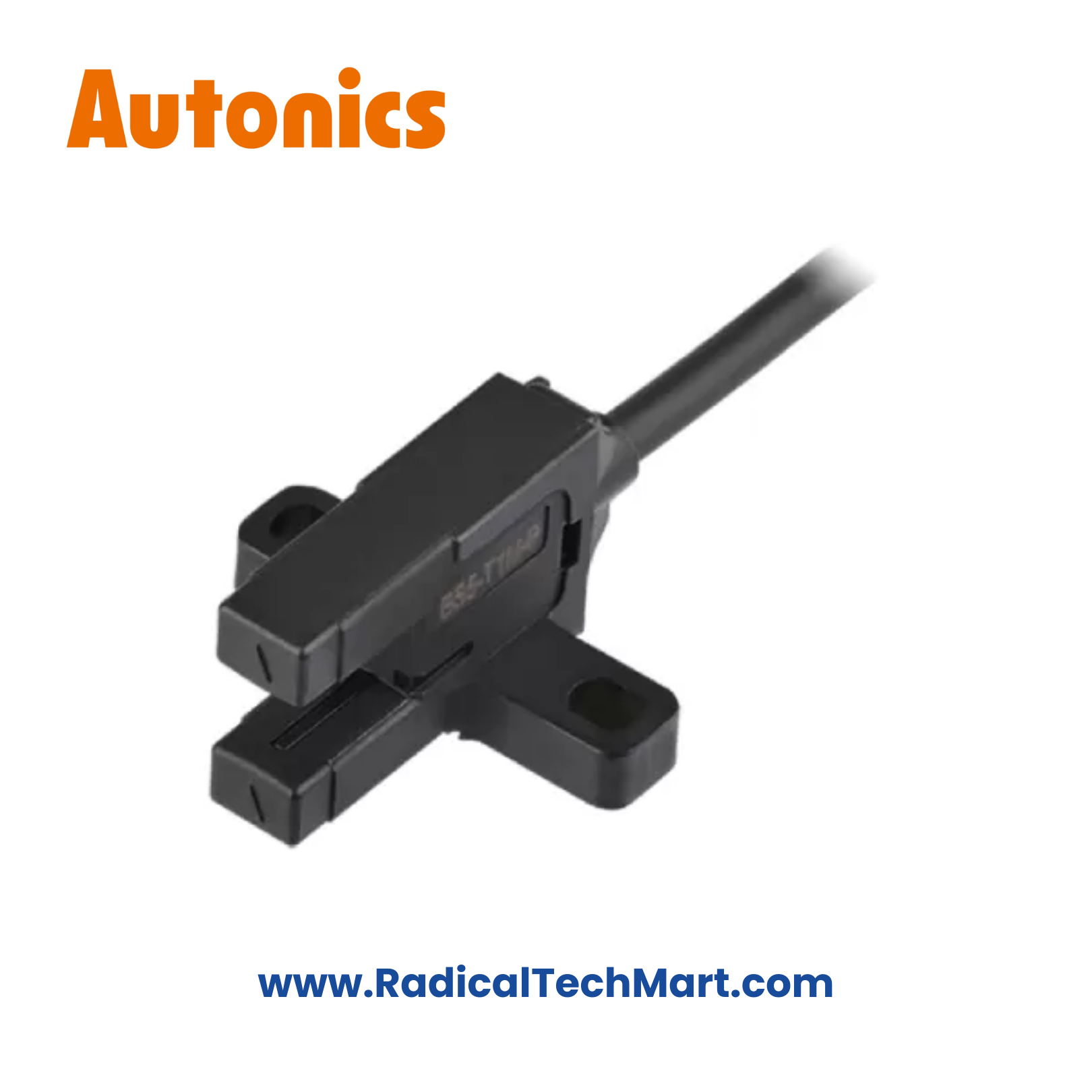

Autonics BS5-T1M-P Photoelectric Sensor
Autonics BS5-T1M-P Through-Beam Photomicro Sensor (PNP, Light-ON)
Compact through-beam photomicro (slot-type) sensor with PNP output and high-speed response.
Designed for precise detection of small objects in PCB machines and compact automation systems.
Customize
Share :
The Autonics BS5-T1M-P is a through-beam photomicro (slot-type) photoelectric sensor developed for high-precision and high-speed detection of very small objects. With PNP open-collector output, Light-ON operation, and a compact BS5-series body, it is widely used in PCB assembly machines, electronic part detection, and miniature automation equipment.
Key Features
Through-beam (slot-type) photomicro sensing
PNP open-collector output
Light-ON operation
High-speed response for fast-moving parts
Compact design for tight installation spaces
Stable detection of small and thin objects
High resistance to vibration and electrical noise
Suitable for continuous operation in OEM machines
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BS5-T1M-P |
| Series | BS5 |
| Sensor Type | Photomicro/Slot Type |
| Sensing Method | Through-beam |
| Output Operation | Light-ON |
| Light Source | Infrared LED |
| Output Type | PNP open collector |
| Supply Voltage | 5–24 V DC |
| Load Current | ≤ 50 mA |
| Response Speed | High-speed |
| Protection Rating | IP50 |
| Operating Temperature | −20 to +55 °C |
Applications
PCB assembly machines
Electronic component detection
Small part presence sensing
Office automation equipment
Precision assembly systems
Compact OEM machinery
What’s in the Box?
Autonics BS5-T1M-P Photomicro Sensor
Pre-wired cable
Product manual
FAQ
Q1. What type of sensor is BS5-T1M-P?
It is a through-beam photomicro (slot-type) photoelectric sensor.
Q2. What does “T1M” indicate?
“T” denotes through-beam type, “1” indicates the slot configuration, and “M” refers to Light-ON indicator operation.
Q3. Is this NPN or PNP output?
This model provides PNP open-collector output.
Q4. Can it detect very small objects?
Yes, it is designed for small and thin object detection.
Q5. Is it suitable for high-speed machines?
Yes, it supports high-speed response, suitable for fast automation lines.
