Autonics BWP20-16P Area Sensor
Autonics BWP20-16P Through-Beam Area Sensor (20 mm Pitch, PNP Output)
Autonics BWP20-16P is a high-resolution through-beam area sensor with 16 optical axes and 20 mm pitch, designed for precise object detection across a wider sensing height in industrial automation.

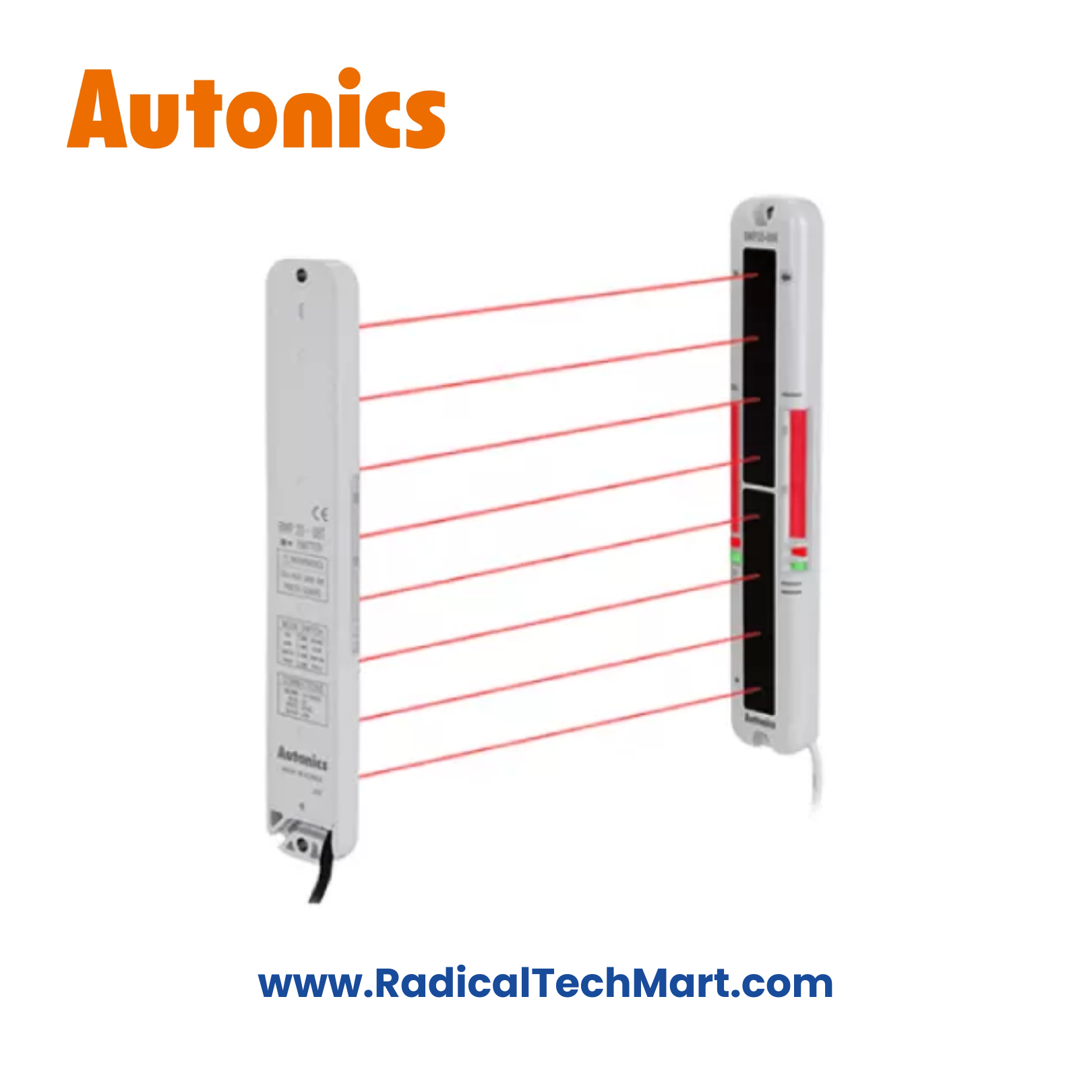

The Autonics BWP20-16P is a through-beam area sensor engineered for high-resolution and wide-area detection using a 20 mm optical axis pitch. With 16 optical beams, it delivers an extended sensing height while maintaining excellent detection accuracy for small and closely spaced objects.
Featuring PNP open-collector output, IP65 protection, and advanced self-diagnostic and misalignment detection, the BWP20-16P ensures stable, long-term operation in demanding industrial environments.
Key Features
Through-beam area sensing (emitter + receiver)
Fine 20 mm optical axis pitch for high-resolution detection
16 optical axes
Sensing height: 300 mm
Long sensing distance up to 7 m
PNP open-collector output
Fast response time ≤ 10 ms
Optical axis misalignment alarm
Mutual interference prevention (MASTER / SLAVE)
IP65 protection (IEC standard)
Through-beam area sensing (emitter + receiver)
Fine 20 mm optical axis pitch for high-resolution detection
16 optical axes
Sensing height: 300 mm
Long sensing distance up to 7 m
PNP open-collector output
Fast response time ≤ 10 ms
Optical axis misalignment alarm
Mutual interference prevention (MASTER / SLAVE)
IP65 protection (IEC standard)
Technical Specifications
Parameter Value Model BWP20-16P Sensing Method Through-beam Optical Axis Pitch 20 mm Number of Optical Axes 16 Sensing Height 300 mm Sensing Distance 0.1 – 7 m Light Source Infrared LED (850 nm, modulated) Output Type PNP open collector Operation Mode Light ON Response Time ≤ 10 ms Power Supply 12–24 V DC Current Consumption ≤ 120 mA Load Current ≤ 100 mA Protection Rating IP65 Ambient Light Immunity Up to 100,000 lux Operating Temperature −10 to +55 °C
| Parameter | Value |
|---|---|
| Model | BWP20-16P |
| Sensing Method | Through-beam |
| Optical Axis Pitch | 20 mm |
| Number of Optical Axes | 16 |
| Sensing Height | 300 mm |
| Sensing Distance | 0.1 – 7 m |
| Light Source | Infrared LED (850 nm, modulated) |
| Output Type | PNP open collector |
| Operation Mode | Light ON |
| Response Time | ≤ 10 ms |
| Power Supply | 12–24 V DC |
| Current Consumption | ≤ 120 mA |
| Load Current | ≤ 100 mA |
| Protection Rating | IP65 |
| Ambient Light Immunity | Up to 100,000 lux |
| Operating Temperature | −10 to +55 °C |
Applications
Precision object detection
Tablet, strip & component counting
Packaging & blister machines
Conveyor-based sorting systems
Assembly line automation
Material handling equipment
Precision object detection
Tablet, strip & component counting
Packaging & blister machines
Conveyor-based sorting systems
Assembly line automation
Material handling equipment
What’s in the Box?
Emitter unit × 1
Receiver unit × 1
Mounting brackets (A & B)
Fixing bolts
Instruction manual
Emitter unit × 1
Receiver unit × 1
Mounting brackets (A & B)
Fixing bolts
Instruction manual
FAQs
Q1. What is the benefit of 16 optical axes in BWP20-16P?
It provides a larger sensing height with high-resolution detection for small or closely spaced objects.
Q2. Is BWP20-16P suitable for personnel safety?
No. This product is not a safety light curtain.
Q3. What output does this model support?
PNP open-collector output.
Q4. Can multiple BWP20 sensors be installed close together?
Yes, using the MASTER/SLAVE interference prevention function.
Q5. Are M12 cables supplied with the sensor?
No. M12 connector cables are sold separately.
