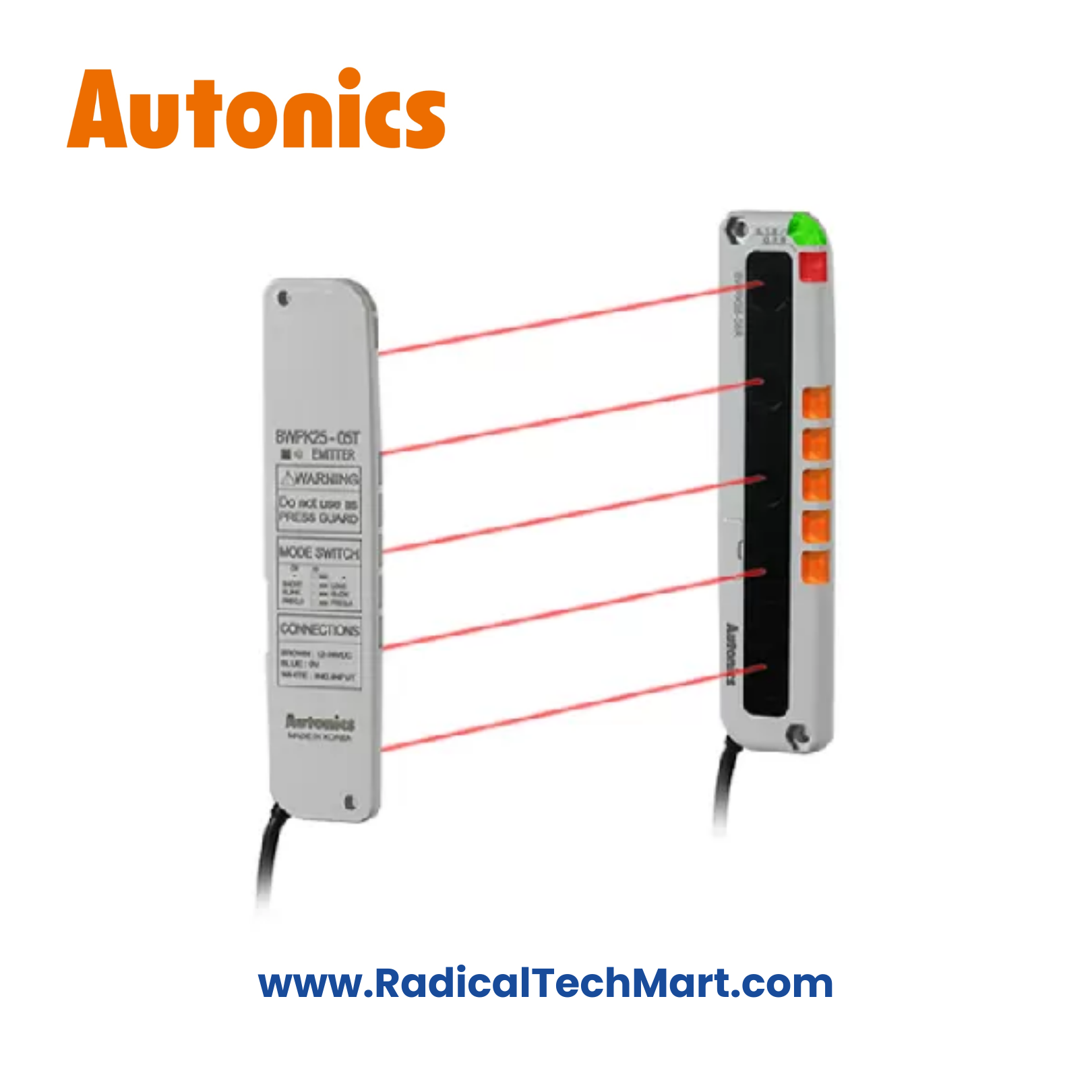

Autonics BWPK25-05P Area Sensor
Autonics BWPK25-05P Slim Picking Sensor (Through-Beam, PNP, 25 mm Pitch)
Slim through-beam picking sensor with 25 mm pitch / 5 optical axes, long/short sensing mode switch, and picking indicator for easy setup in compact automation machines.
Customize
Share :
The Autonics BWPK25-05P is a slim plastic single-beam picking area sensor designed for accurate detection and picking confirmation in compact industrial machinery. With 5 optical axes and 25 mm pitch, it enables reliable detection in tight installation spaces.
The sensor features PNP open-collector output, a picking indicator, long/short sensing distance selection, and frequency-based interference prevention, making it ideal for high-density automation environments.
Key Features
Slim & compact body (30 × 140 × 9.9 mm)
Through-beam picking area detection
25 mm optical axis pitch
5 optical axes
Long/short sensing distance selectable
Built-in picking indicator (ON / flashing)
Light ON / Dark ON selectable
Mutual interference prevention (frequency switching)
PNP open-collector output
IP40 protection (indoor industrial use)
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BWPK25-05P |
| Sensing Method | Through-beam |
| Optical Axis Pitch | 25 mm |
| Number of Optical Axes | 5 |
| Sensing Height | 100 mm |
| Sensing Distance (Long) | 0.1 – 3.0 m |
| Sensing Distance (Short) | 0.05 – 1.0 m |
| Light Source | Infrared LED (850 nm, modulated) |
| Output Type | PNP open collector |
| Operation Mode | Light ON / Dark ON (switch selectable) |
| Response Time | ≤ 30 ms |
| Power Supply | 12–24 V DC |
| Current Consumption | ≤ 60 mA |
| Load Current | ≤ 150 mA |
| Protection Rating | IP40 |
| Operating Temperature | −10 to +55 °C |
Applications
Picking confirmation systems
Packaging & labeling machines
Conveyor object picking
Small part detection
Assembly line automation
Sorting & inspection equipment
What’s in the Box?
BWPK25-05P sensor (emitter and receiver integrated)
Instruction manual
FAQs
Q1. Is BWPK25-05P a safety sensor?
No. This sensor is not safety-rated and must not be used for personnel protection.
Q2. What is the advantage of the picking indicator?
It provides visual confirmation of correct picking and detection during operation.
Q3. Can sensing distance be adjusted?
Yes. Long and short sensing modes are selectable via switch.
Q4. Does it support Light ON and Dark ON?
Yes. Operation mode can be selected on the receiver.
Q5. Can multiple sensors be installed close together?
Yes. Frequency switching helps prevent mutual interference.
