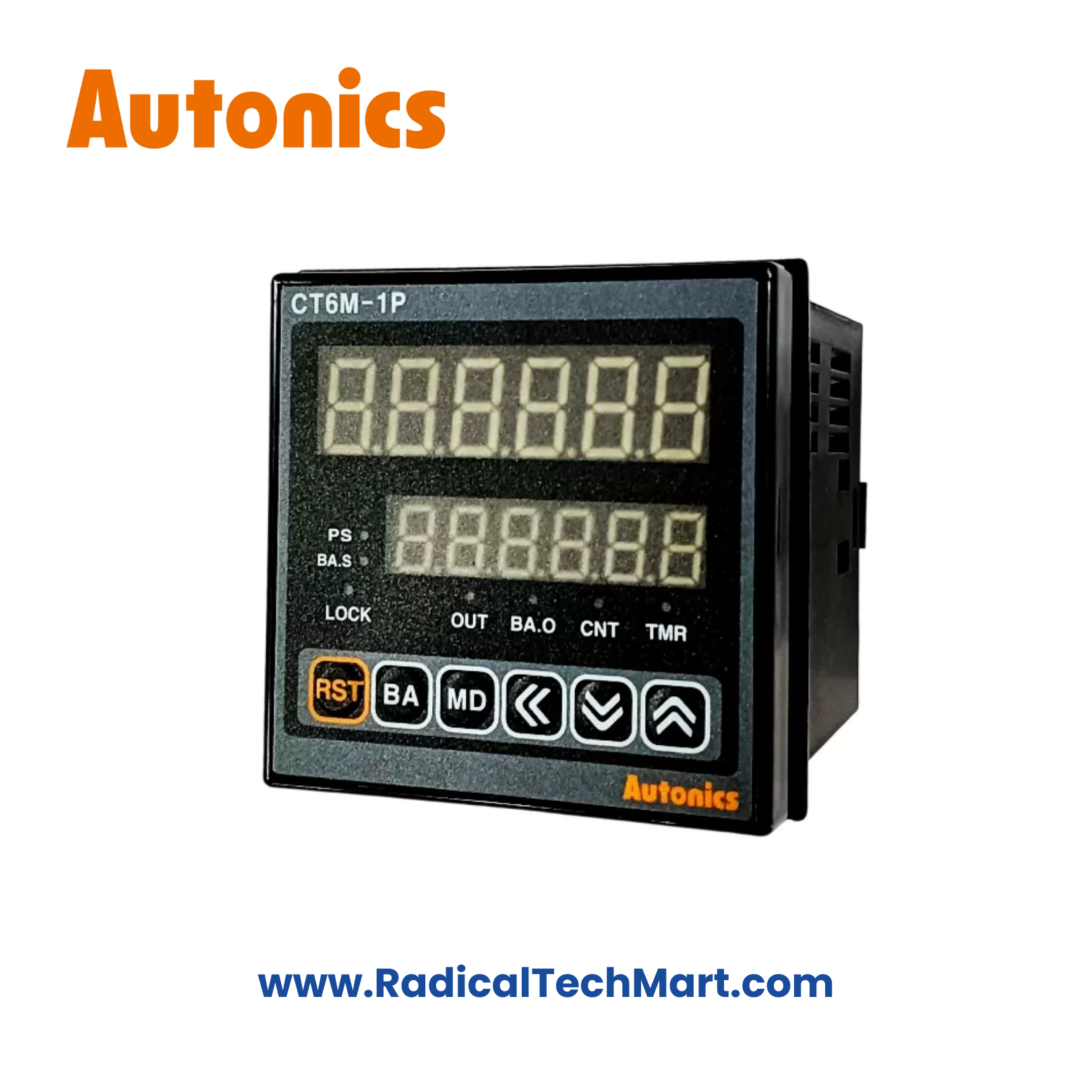

Autonics CT6M-1P4 Digital Counter Timer (6-Digit, 1-Stage Preset, 100–240V AC)
Autonics CT6M-1P4 is a 6-digit programmable digital counter and timer with 1-stage preset relay output, designed for high-visibility counting and precise timing control in industrial automation panels using an AC power supply.
Customize
Share :
Product Overview
The Autonics CT6M-1P4 is a 6-digit programmable digital counter and timer engineered for applications requiring higher count resolution and better visibility. It supports multiple counter and timer modes, 1-stage preset relay output, and high-speed counting, making it ideal for packaging, batching, production monitoring, and machine sequencing.
Operating on a 100–240V AC power supply, this model is well suited for standard industrial control panels without the need for external DC power supplies.
Key Features
6-digit LED display for high-visibility counting
Counter and timer functions in a single unit
1-stage preset relay output
Count up / count down / up-down modes
Prescale and start point functions
One-shot output time adjustable (0.01 to 99.99 sec)
Selectable NPN/PNP input logic
High-speed counting up to 10 kcps
IP65 protection (front panel)
Compact DIN panel mount design
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CT6M-1P4 |
| Display | 6-digit, 7-segment LED |
| Functions | Counter/Timer |
| Preset Output | 1-stage |
| Counting Range | −999999 to 999999 |
| Timer Range | 0.001 sec to 9999 hours |
| Input Logic | NPN/PNP selectable |
| Max Counting Speed | Up to 10 kcps |
| Output Type | Relay output (SPDT) |
| Output Rating | 250 VAC, 5 A / 30 VDC, 5 A (resistive) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | −10 to +55 °C |
Applications
Packaging and filling machines
Batch and production counting
Conveyor and throughput monitoring
Machine cycle counting
Process timing control
Industrial automation panels
What’s in the Box?
Autonics CT6M-1P4 Digital Counter Timer
Panel mounting bracket
Instruction manual
FAQs
Q1. What is the difference between the CT4S and CT6M series?
CT6M provides a 6-digit display for higher count resolution, while CT4S offers a 4-digit display.
Q2. What power supply does CT6M-1P4 use?
It operates on 100–240V AC, suitable for standard industrial panels.
Q3. Does this model support NPN and PNP sensors?
Yes. Input logic is selectable for both NPN and PNP sensors.
Q4. Is this suitable for high-speed counting?
Yes. Supports counting speeds up to 10 kcps.
Q5. Is the front panel protected against dust and water?
Yes. The front panel has IP65 protection.
