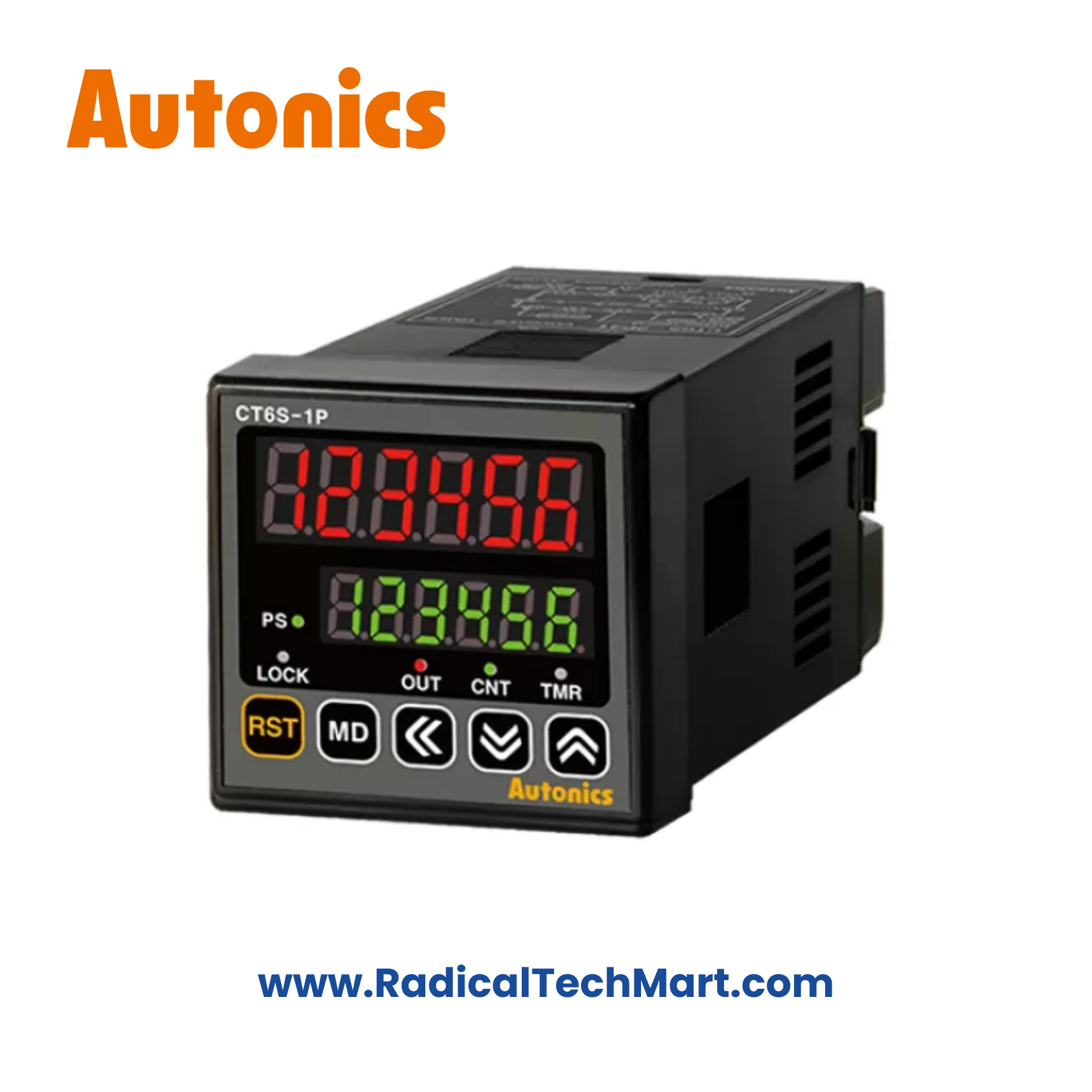

Autonics CT6S-1P4 Digital Counter Timer (6-Digit, 1-Stage Preset, 100–240V AC)
Autonics CT6S-1P4 is a 6-digit programmable digital counter and timer with 1-stage preset relay output, designed for high-visibility counting and precise timing control in AC-powered industrial automation panels.
Customize
Share :
The Autonics CT6S-1P4 is a 6-digit programmable digital counter and timer engineered for applications requiring high count resolution and AC power operation. It supports multiple counter and timer modes, 1-stage preset relay output, and high-speed counting, making it suitable for packaging, batching, production monitoring, and machine sequencing.
The standard 48 × 48 mm DIN panel size with IP65 front protection ensures easy integration into industrial control panels.
Key Features
6-digit LED display for high-visibility counting
Counter and timer functions in one unit
1-stage preset relay output
Count up / count down / up-down modes
Prescale and start point functions
One-shot output time adjustable (0.01 to 99.99 sec)
Selectable NPN/PNP input logic
High-speed counting up to 10 kcps
IP65 protection (front panel)
Compact DIN 48 × 48 mm panel size
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CT6S-1P4 |
| Display | 6-digit, 7-segment LED |
| Functions | Counter/Timer |
| Preset Output | 1-stage |
| Counting Range | −999999 to 999999 |
| Timer Range | 0.001 sec to 9999 hours |
| Input Logic | NPN/PNP selectable |
| Max Counting Speed | Up to 10 kcps |
| Output Type | Relay output (SPDT) |
| Output Rating | 250 VAC, 5 A / 30 VDC, 5 A (resistive) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | −10 to +55 °C |
Applications
Packaging and filling machines
Batch and production counting
Conveyor throughput monitoring
Machine cycle counting
Process timing control
Industrial automation panels
What’s in the Box?
Autonics CT6S-1P4 Digital Counter Timer
Panel mounting bracket
Instruction manual
FAQs
Q1. What is the difference between CT6S-1P2 and CT6S-1P4?
CT6S-1P2 operates on 24V AC/DC, while CT6S-1P4 operates on 100–240V AC.
Q2. Can CT6S-1P4 be used as both a counter and a timer?
Yes. Counter and timer modes are selectable via parameters.
Q3. Does this model support NPN and PNP sensors?
Yes. Input logic is selectable for both NPN and PNP sensors.
Q4. Is CT6S-1P4 suitable for high-speed counting?
Yes. It supports counting speeds up to 10 kcps.
Q5. Is the front panel protected from dust and water?
Yes. The front panel has IP65 protection.
