Autonics CT6S-2P4 Counter Timer

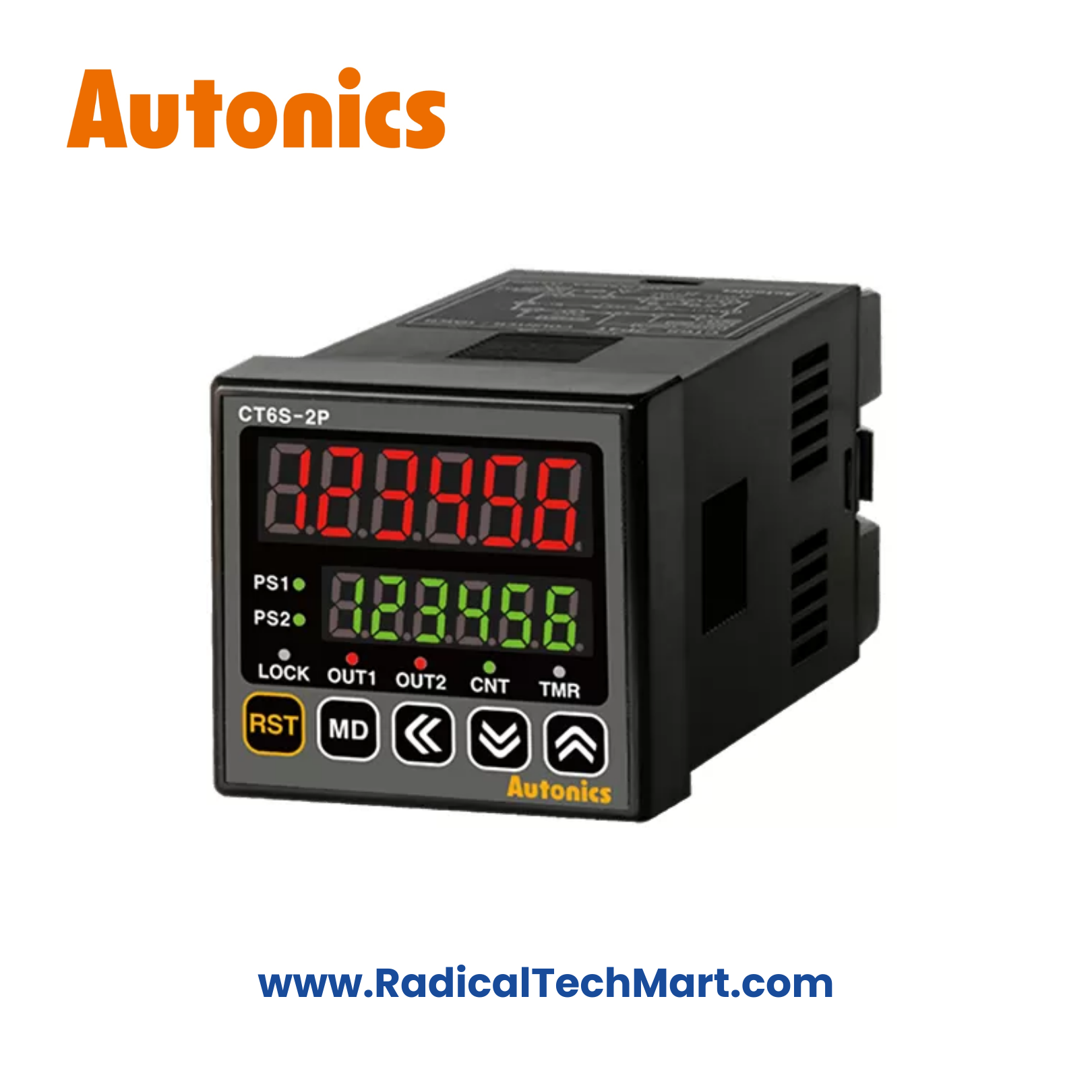

Autonics CT6S-2P4 Digital Counter Timer (6-Digit, 2-Stage Preset, 100–240V AC)
Autonics CT6S-2P4 is a 6-digit programmable digital counter and timer with dual preset relay outputs, designed for advanced counting, sequencing, and timing control in AC-powered industrial automation panels.
Customize
Share :
The Autonics CT6S-2P4 is a 6-digit programmable digital counter and timer equipped with two independent preset relay outputs, enabling complex control logic such as pre-alarm + final control, two-step batching, and sequencing operations.
With high-speed counting, selectable NPN/PNP input, and a 100–240V AC power supply, this model is ideal for packaging machines, production lines, conveyors, and industrial automation panels that require dual output control.
Key Features
6-digit LED display for high-visibility counting
Counter and timer functions in one unit
2-stage preset relay outputs
Count up / count down / up-down modes
Prescale and start point functions
One-shot output time adjustable (0.01 to 99.99 sec)
Selectable NPN/PNP input logic
High-speed counting up to 10 kcps
IP65 protection (front panel)
Standard DIN 48 × 48 mm panel mount
6-digit LED display for high-visibility counting
Counter and timer functions in one unit
2-stage preset relay outputs
Count up / count down / up-down modes
Prescale and start point functions
One-shot output time adjustable (0.01 to 99.99 sec)
Selectable NPN/PNP input logic
High-speed counting up to 10 kcps
IP65 protection (front panel)
Standard DIN 48 × 48 mm panel mount
Technical Specifications
Parameter Specification Model CT6S-2P4 Display 6-digit, 7-segment LED Functions Counter/Timer Preset Output 2-stage Counting Range −999999 to 999999 Timer Range 0.001 sec to 9999 hours Input Logic NPN/PNP selectable Max Counting Speed Up to 10 kcps Output Type Relay outputs (2 × SPDT) Output Rating 250 VAC, 5 A / 30 VDC, 5 A (resistive) Power Supply 100–240 VAC, 50/60 Hz Protection Rating IP65 (front panel) Operating Temperature −10 to +55 °C
| Parameter | Specification |
|---|---|
| Model | CT6S-2P4 |
| Display | 6-digit, 7-segment LED |
| Functions | Counter/Timer |
| Preset Output | 2-stage |
| Counting Range | −999999 to 999999 |
| Timer Range | 0.001 sec to 9999 hours |
| Input Logic | NPN/PNP selectable |
| Max Counting Speed | Up to 10 kcps |
| Output Type | Relay outputs (2 × SPDT) |
| Output Rating | 250 VAC, 5 A / 30 VDC, 5 A (resistive) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | −10 to +55 °C |
Applications
Multi-stage batch counting systems
Packaging and filling machines
Conveyor throughput monitoring
Pre-alarm & final stop control
Machine cycle sequencing
Industrial automation control panels
Multi-stage batch counting systems
Packaging and filling machines
Conveyor throughput monitoring
Pre-alarm & final stop control
Machine cycle sequencing
Industrial automation control panels
What’s in the Box?
Autonics CT6S-2P4 Digital Counter Timer
Panel mounting bracket
Instruction manual
Autonics CT6S-2P4 Digital Counter Timer
Panel mounting bracket
Instruction manual
FAQs
Q1. What is the benefit of 2-stage preset output?
It allows pre-warning and final action, such as an alarm before stopping or two-step batch control.
Q2. What is the difference between CT6S-1P4 and CT6S-2P4?
CT6S-1P4 has 1 relay output, while CT6S-2P4 has 2 independent relay outputs.
Q3. Does this model support NPN and PNP sensors?
Yes. Input logic is selectable for both NPN and PNP sensors.
Q4. Is CT6S-2P4 suitable for high-speed encoders?
Yes. It supports counting speeds up to 10 kcps.
Q5. Is the front panel protected against dust and water?
Yes. Front panel protection is IP65.
