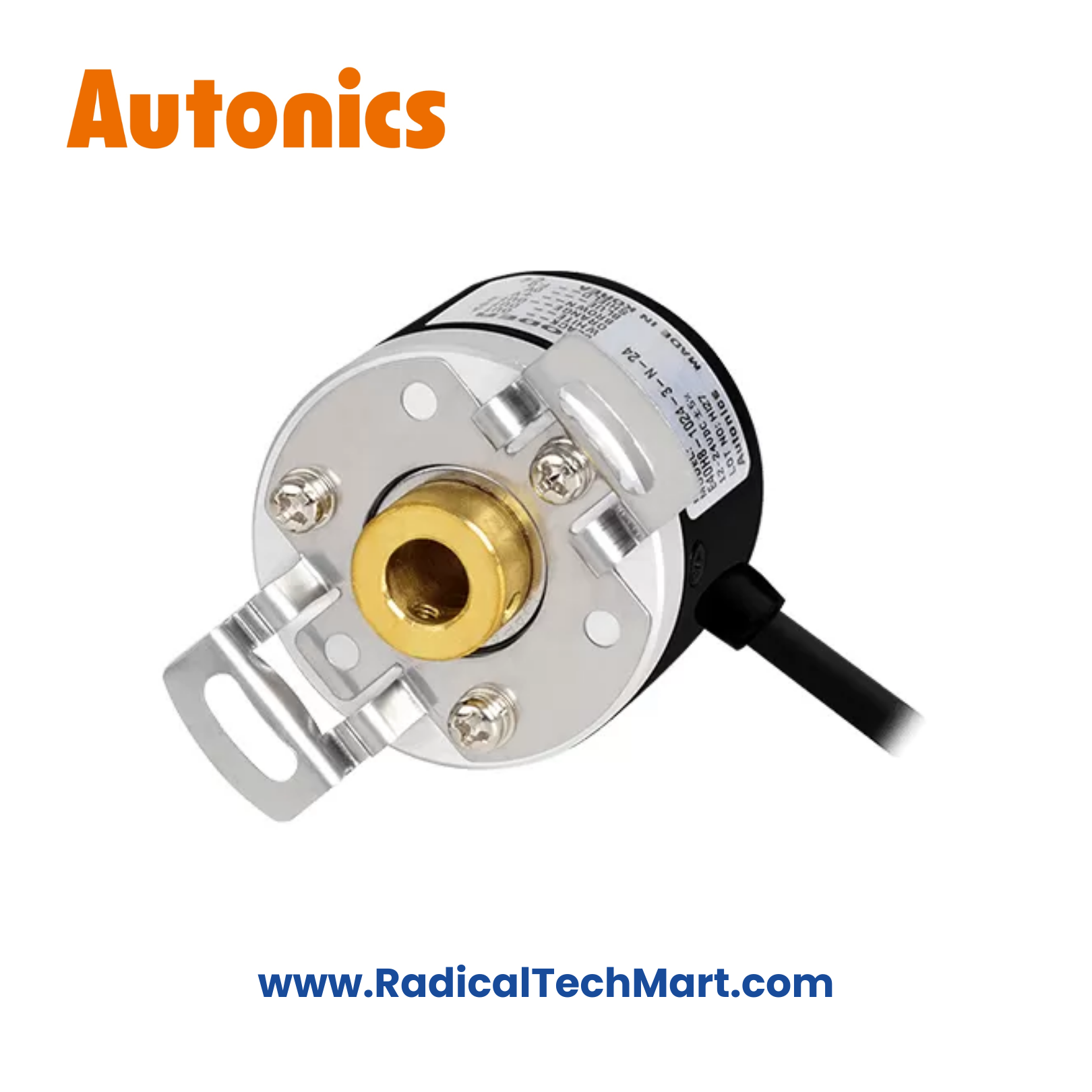

Autonics E40H8-100-3-N-5 Rotary Encoder
Compact 100P/R incremental rotary encoder with 8mm shaft and NPN open collector output, ideal for precision motion control.
Product Summary:
The Autonics E40H8-100-3-N-5 is a high-performance incremental rotary encoder offering a 100 pulses per revolution resolution, NPN open collector output, and radial cable connection. Designed for compact installations, this encoder supports up to 5000rpm and is CE approved.
Key Features:
100 pulses/rev (PPR) resolution
8mm solid shaft with radial cable output
Max. revolution speed: 5000rpm
High response frequency up to 300kHz
NPN open collector output, 3-channel (A, B, Z)
Compact and lightweight design (120g)
IP50 protection rating
Operating voltage: 5VDC ±5%
CE certified
Includes bracket accessory
Applications:
Conveyor speed control
Position feedback in packaging machines
Motion control in automation systems
Assembly line robotics
Industrial CNC and drive systems
Product Benefits:
High-speed response for real-time positioning
Compact size suitable for tight spaces
Reliable signal output with triple channel support
Easy integration with standard control systems
Durable build for industrial use
FAQs:
Q. What is the resolution of the E40H8-100-3-N-5 encoder?
A. The encoder has a resolution of 100 pulses per revolution (PPR), making it suitable for moderate-precision applications.
Q. What type of output signal does this encoder provide?
A. It offers a 3-phase NPN open collector output for A, B, and Z channels.
Q. Can this encoder be used in high-speed applications?
A. Yes, with a max. response frequency of 300kHz and allowable speed of up to 5000rpm, it is ideal for high-speed rotation detection.
