Autonics E40S6-360-3-T-24 Rotary Encoder
Autonics E40S6-360-3-T-24 Incremental Rotary Encoder (40 mm, Solid Shaft, 360 PPR, Totem-Pole)
Autonics E40S6-360-3-T-24 is a 40 mm solid-shaft incremental rotary encoder with 360 PPR resolution and A, B, Z phase totem-pole output, ideal for reliable speed and position feedback in industrial automation.
Customize
Share :

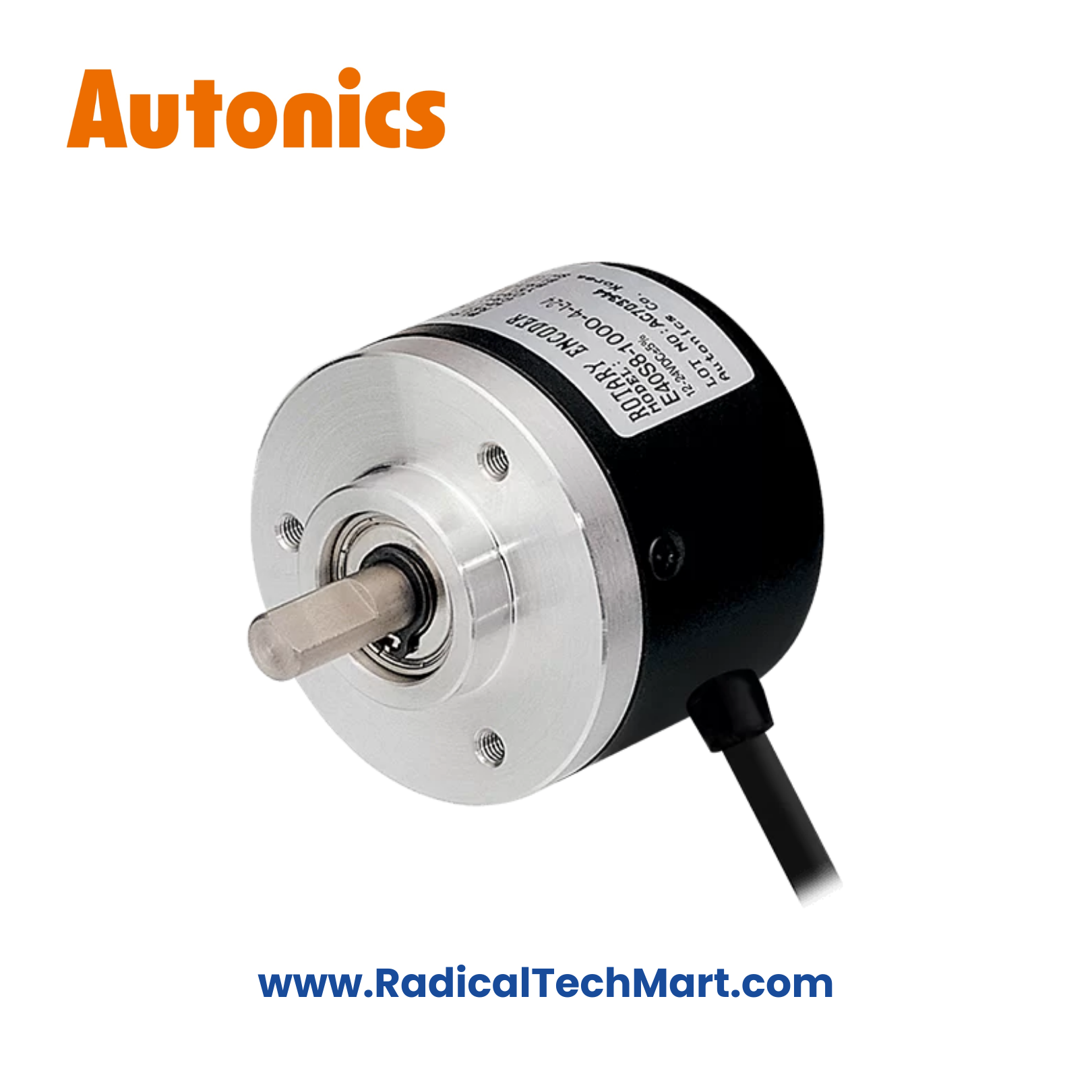

The Autonics E40S6-360-3-T-24 is a 40 mm diameter incremental rotary encoder with a solid shaft (Ø 6 mm) and 360 pulses per revolution (PPR). It provides A, B, and Z phase outputs using a totem-pole output circuit, ensuring fast switching and compatibility with a wide range of PLCs, counters, and motion controllers.
Operating on 12–24 V DC, this encoder is suitable for conveyors, packaging machines, and general-purpose automation where stable and cost-effective feedback is required.
Key Features
Compact 40 mm encoder housing
Solid shaft design (Ø 6 mm)
360 PPR resolution
A, B, Z phase incremental outputs
Totem-pole output circuit
Maximum response frequency up to 300 kHz
Maximum allowable speed: 5000 rpm
Shielded cable for improved noise immunity
Easy installation on motors and machinery
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E40S6-360-3-T-24 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 40 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 6 mm |
| Resolution | 360 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 12–24 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Starting Torque | ≤ 0.006 N·m |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 120 g |
Applications
Conveyor speed monitoring
Packaging and labeling machines
General motor feedback
Counting and positioning systems
PLC-based automation panels
Production line monitoring
What’s in the Box?
Autonics E40S6-360-3-T-24 Rotary Encoder
Mounting hardware
Instruction manual
FAQs
Q1. What does 360 PPR mean?
It means the encoder outputs 360 pulses per shaft revolution, suitable for standard speed and position detection.
Q2. What is the advantage of totem-pole output?
Totem-pole output provides fast signal transitions and compatibility with both sourcing and sinking inputs.
Q3. Is this encoder compatible with PLCs and counters?
Yes, it works with PLCs, counters, and controllers that accept totem-pole incremental encoder signals.
Q4. Can this encoder operate at high speeds?
Yes. It supports shaft speeds up to 5000 rpm within rated conditions.
Q5. Is this suitable for industrial environments?
Yes, for indoor industrial applications (IP50 protection).
