Autonics E40S6-50-3-T-24 Rotary Encoder

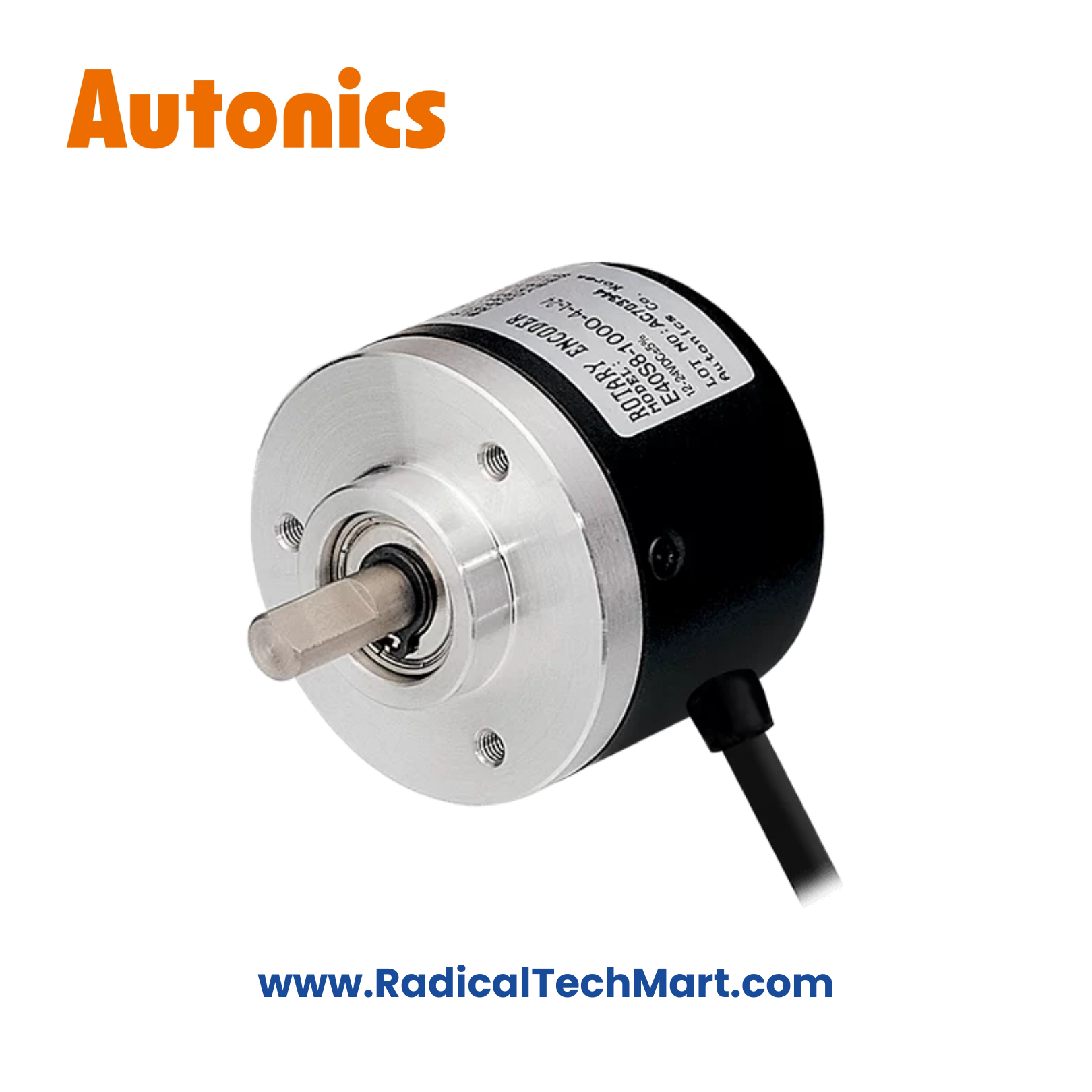

Autonics E40S6-50-3-T-24 Incremental Rotary Encoder (40 mm, Solid Shaft, 50 PPR)
Autonics E40S6-50-3-T-24 is a 40 mm solid-shaft incremental rotary encoder with 50 PPR resolution and A, B, Z totem-pole output, ideal for basic speed monitoring and low-resolution position feedback in industrial automation.
The Autonics E40S6-50-3-T-24 is a 40 mm diameter incremental rotary encoder with a solid shaft (Ø 6 mm) and 50 pulses per revolution (PPR) resolution. It provides A, B, and Z phase outputs using a totem-pole output circuit, making it suitable for PLCs, counters, and control systems requiring simple speed or position feedback.
Operating on 12–24 V DC, this encoder is commonly used where low resolution and stable performance are sufficient, such as conveyor speed monitoring and basic machine feedback.
Key Features
Compact 40 mm encoder housing
Solid shaft design (Ø 6 mm)
50 PPR low-resolution output
A, B, Z phase incremental signals
Totem-pole output circuit
Maximum response frequency up to 300 kHz
Maximum allowable speed: 5000 rpm
Shielded cable for noise immunity
Easy installation on motors and machinery
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E40S6-50-3-T-24 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 40 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 6 mm |
| Resolution | 50 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 12–24 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Starting Torque | ≤ 0.006 N·m |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 120 g |
Applications
Conveyor speed monitoring
Motor RPM feedback
Packaging machines
Counting applications
PLC-based automation panels
General industrial machinery
What’s in the Box?
Autonics E40S6-50-3-T-24 Rotary Encoder
Mounting hardware
Instruction manual
FAQs
Q1. What does 50 PPR indicate?
It means the encoder outputs 50 pulses per shaft revolution, suitable for basic speed and position detection.
Q2. Is this encoder suitable for PLC inputs?
Yes. It works with PLCs and counters that support totem-pole incremental encoder signals.
Q3. What output type does this model use?
This model uses a totem-pole output.
Q4. Can this encoder be used at high speeds?
Yes. It supports shaft speeds up to 5000 rpm within rated conditions.
Q5. Is this encoder suitable for harsh environments?
It is designed for indoor industrial use (IP50 protection).
