Autonics E40S6-600-3-T-24 Rotary Encoder
Autonics E40S6-600-3-T-24 Incremental Rotary Encoder (40 mm, Solid Shaft, 600 PPR)

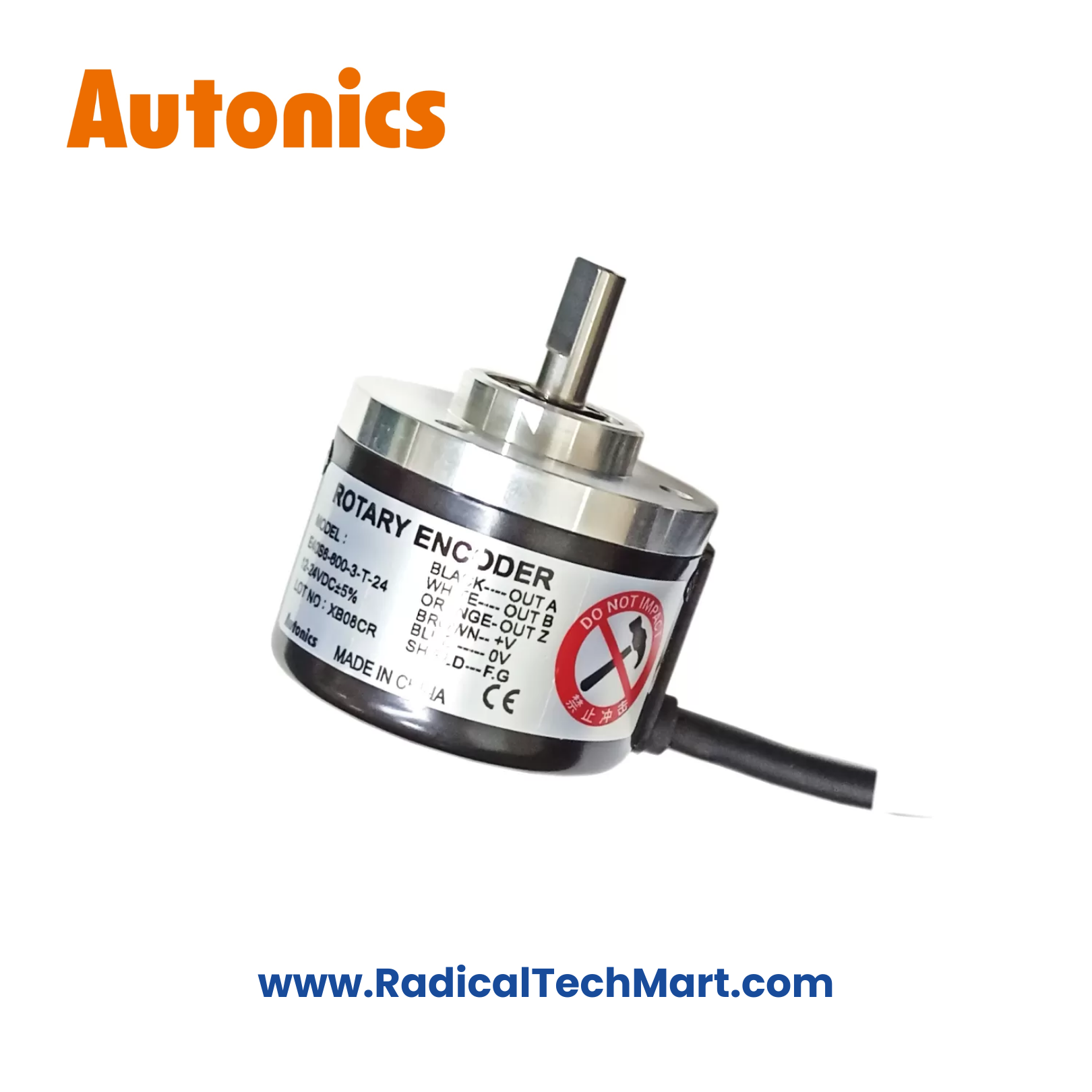

Autonics E40S6-600-3-T-24 is a 40 mm solid-shaft incremental rotary encoder with 600 PPR resolution and A, B, and Z totem-pole output, suitable for accurate speed and position feedback in industrial automation systems.
The Autonics E40S6-600-3-T-24 is a 40 mm diameter incremental rotary encoder with a solid shaft (Ø 6 mm) and 600 pulses per revolution (PPR). It provides A, B, and Z phase outputs using a totem-pole output circuit, ensuring fast switching and broad compatibility with PLCs, counters, and motion controllers.
Operating on 12–24 V DC, this encoder is ideal for applications requiring medium-high resolution feedback with stable and reliable performance in industrial environments.
Key Features
Compact 40 mm encoder housing
Solid shaft design (Ø 6 mm)
600 PPR resolution
A, B, Z phase incremental outputs
Totem-pole output circuit
Maximum response frequency up to 300 kHz
Maximum allowable speed: 5000 rpm
Shielded cable for noise immunity
Easy installation on motors and machinery
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E40S6-600-3-T-24 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 40 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 6 mm |
| Resolution | 600 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 12–24 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Starting Torque | ≤ 0.006 N·m |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 120 g |
Applications
Conveyor speed and position monitoring
Packaging and labeling machines
Motor RPM feedback
Counting and indexing systems
PLC-based automation panels
General industrial machinery
What’s in the Box?
Autonics E40S6-600-3-T-24 Rotary Encoder
Mounting hardware
Instruction manual
FAQs
Q1. What does 600 PPR mean?
It means the encoder generates 600 pulses per shaft revolution, offering higher resolution than standard low-PPR encoders.
Q2. Is this encoder compatible with PLCs and counters?
Yes. It works with PLCs, counters, and controllers that accept totem-pole incremental encoder signals.
Q3. What output type does this model use?
This model uses a totem-pole output.
Q4. Can this encoder operate at high speeds?
Yes. It supports shaft speeds up to 5000 rpm within rated limits.
Q5. Is this encoder suitable for industrial environments?
Yes, it is designed for indoor industrial use with IP50 protection.
