Autonics E50S8-1000-3-T-1 Rotary Encoder
Autonics E50S8-1000-3-T-1 Incremental Rotary Encoder (50 mm, Solid Shaft, 1000 PPR)

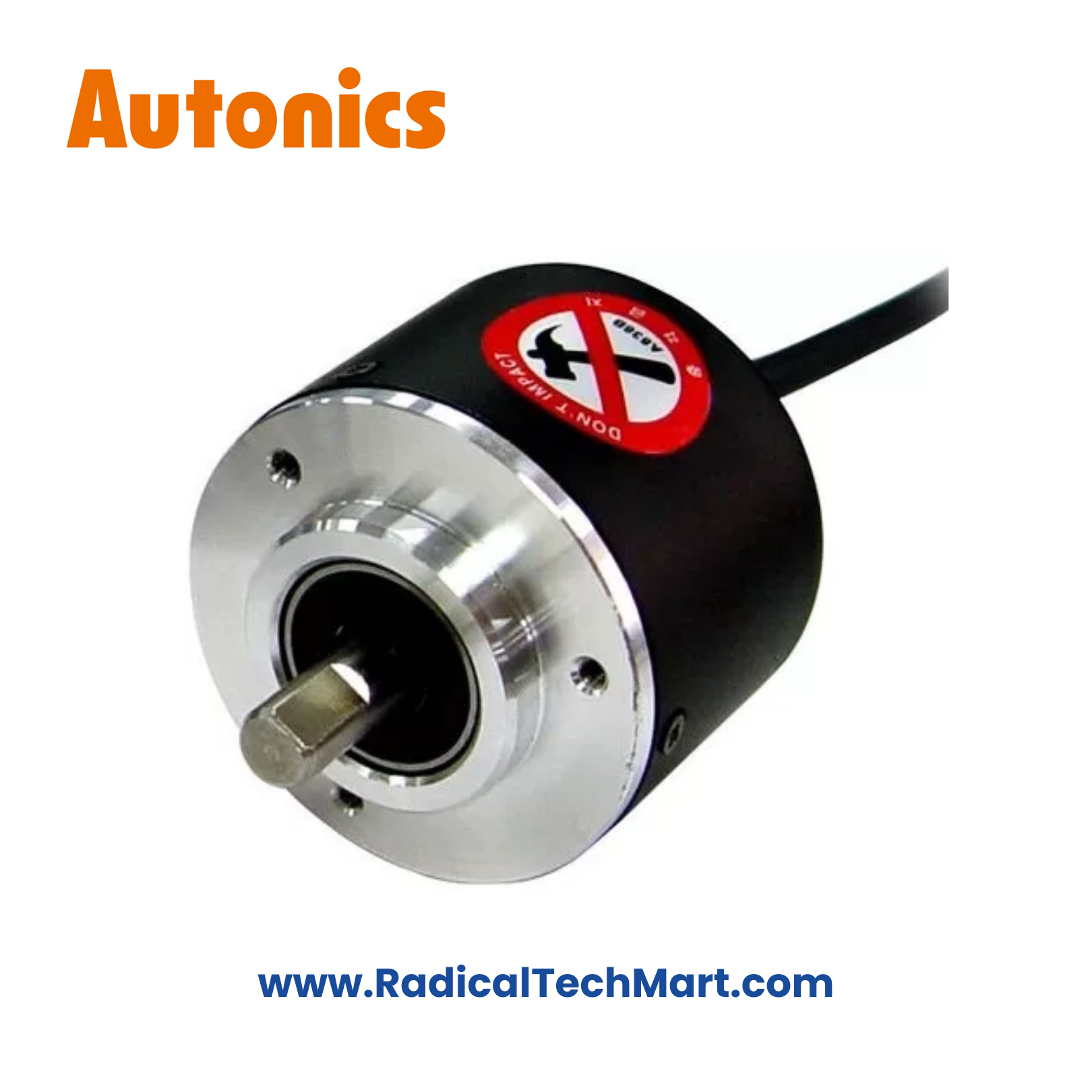

Autonics E50S8-1000-3-T-1 is a 50 mm solid-shaft incremental rotary encoder with 1000 PPR resolution and A, B, Z totem-pole output, designed for accurate speed and position feedback in industrial automation.
The Autonics E50S8-1000-3-T-1 is a 50 mm diameter incremental rotary encoder featuring a solid shaft (Ø 8 mm) and 1000 pulses per revolution (PPR). It provides A, B, and Z phase outputs with a totem-pole output circuit, ensuring fast response and compatibility with a wide range of PLCs, counters, and motion controllers.
With its robust 50 mm housing, this encoder offers improved mechanical stability and durability, making it suitable for demanding industrial automation applications.
Key Features
Rugged 50 mm encoder housing
Solid shaft design (Ø 8 mm)
High resolution: 1000 PPR
A, B, Z phase incremental outputs
Totem-pole output circuit
Stable high-speed performance
Shielded cable for noise immunity
Reliable operation in industrial machinery
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E50S8-1000-3-T-1 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 1000 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 5 V DC ±5% |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Applications
Precision motor speed feedback
Conveyor and material handling systems
Packaging and labeling machines
CNC and automation equipment
Counting and positioning systems
PLC-based automation panels
What’s in the Box?
Autonics E50S8-1000-3-T-1 Rotary Encoder
Mounting hardware
Instruction manual
FAQs
Q1. What does 1000 PPR mean?
It means the encoder generates 1000 pulses per shaft revolution, enabling precise speed and position measurement.
Q2. Is this encoder compatible with PLCs and counters?
Yes, it is compatible with PLCs and counters that support totem-pole incremental encoder inputs.
Q3. What is the benefit of a 50 mm encoder body?
A larger housing provides better mechanical strength and durability in industrial environments.
Q4. What power supply does this model require?
This model operates on 5 V DC.
Q5. Is this encoder suitable for industrial use?
Yes, it is designed for indoor industrial applications with IP50 protection.
