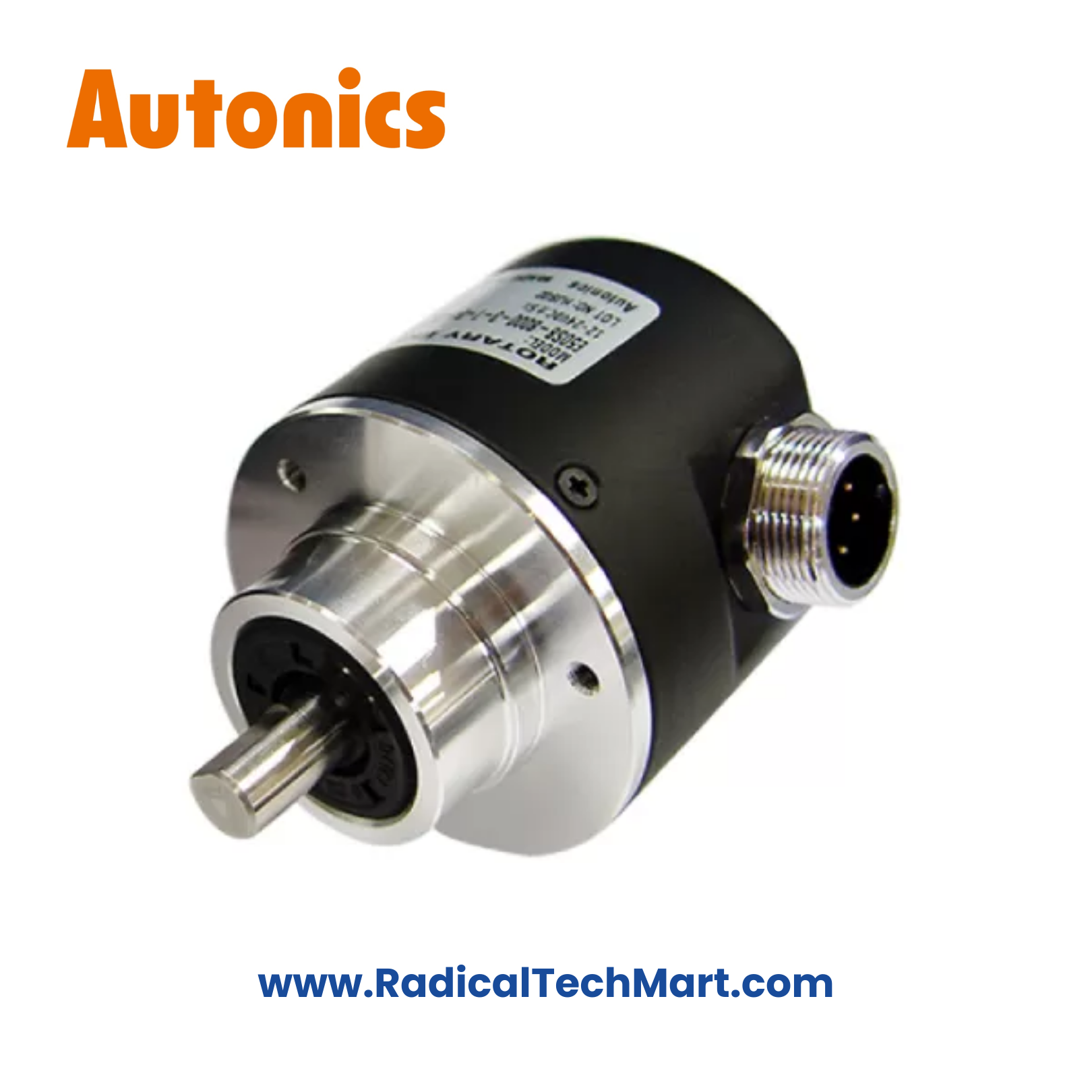

Autonics E50S8-1000-3-T-24-CS Rotary Encoder
Autonics E50S8-1000-3-T-24-CS Incremental Rotary Encoder (50 mm, Solid Shaft, 1000 PPR, CS Type)
Autonics E50S8-1000-3-T-24-CS is a 50 mm solid-shaft incremental rotary encoder with 1000 PPR resolution and A, B, and Z totem-pole output, featuring CS (cable-shielded/reinforced) construction for stable operation in industrial environments.
The Autonics E50S8-1000-3-T-24-CS is a 50 mm diameter incremental rotary encoder with a solid shaft (Ø 8 mm) and high resolution of 1000 pulses per revolution. It provides A, B, and Z phase outputs using a totem-pole output circuit and operates on 12–24 V DC, ensuring compatibility with most PLCs, counters, and motion controllers.
The CS variant offers enhanced cable shielding and reinforced construction, making it suitable for installations where electrical noise resistance and mechanical reliability are required.
Key Features
Robust 50 mm industrial encoder housing
Solid shaft design (Ø 8 mm)
High resolution: 1000 PPR
A, B, Z phase incremental outputs
Totem-pole output circuit
12–24 V DC wide power supply
CS-type construction for improved durability
Shielded cable for noise-resistant signal transmission
Reliable operation in automation panels and machinery
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E50S8-1000-3-T-24-CS |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 1000 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 12–24 V DC ±5% |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Special Feature | CS Type (shielded / reinforced) |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Applications
Precision motor speed feedback
Conveyor and material handling systems
Packaging and labeling machines
CNC and automation equipment
Counting and positioning systems
PLC-based automation panels
What’s in the Box?
Autonics E50S8-1000-3-T-24-CS Rotary Encoder
Mounting hardware
Instruction manual
FAQs
Q1. What does CS mean in this model?
CS indicates reinforced/shielded construction, suitable for electrically noisy industrial environments.
Q2. What is the advantage of 1000 PPR resolution?
It provides high-precision speed and position feedback, ideal for motion control and automation.
Q3. Is this encoder compatible with PLCs?
Yes, it is compatible with PLCs and controllers supporting totem-pole incremental encoder inputs.
Q4. What power supply is required?
This model operates on 12–24 V DC.
Q5. Is this suitable for industrial applications?
Yes, it is designed for indoor industrial use with IP50 protection.
