Autonics E50S8-1024-6-L-5 Rotary Encoder

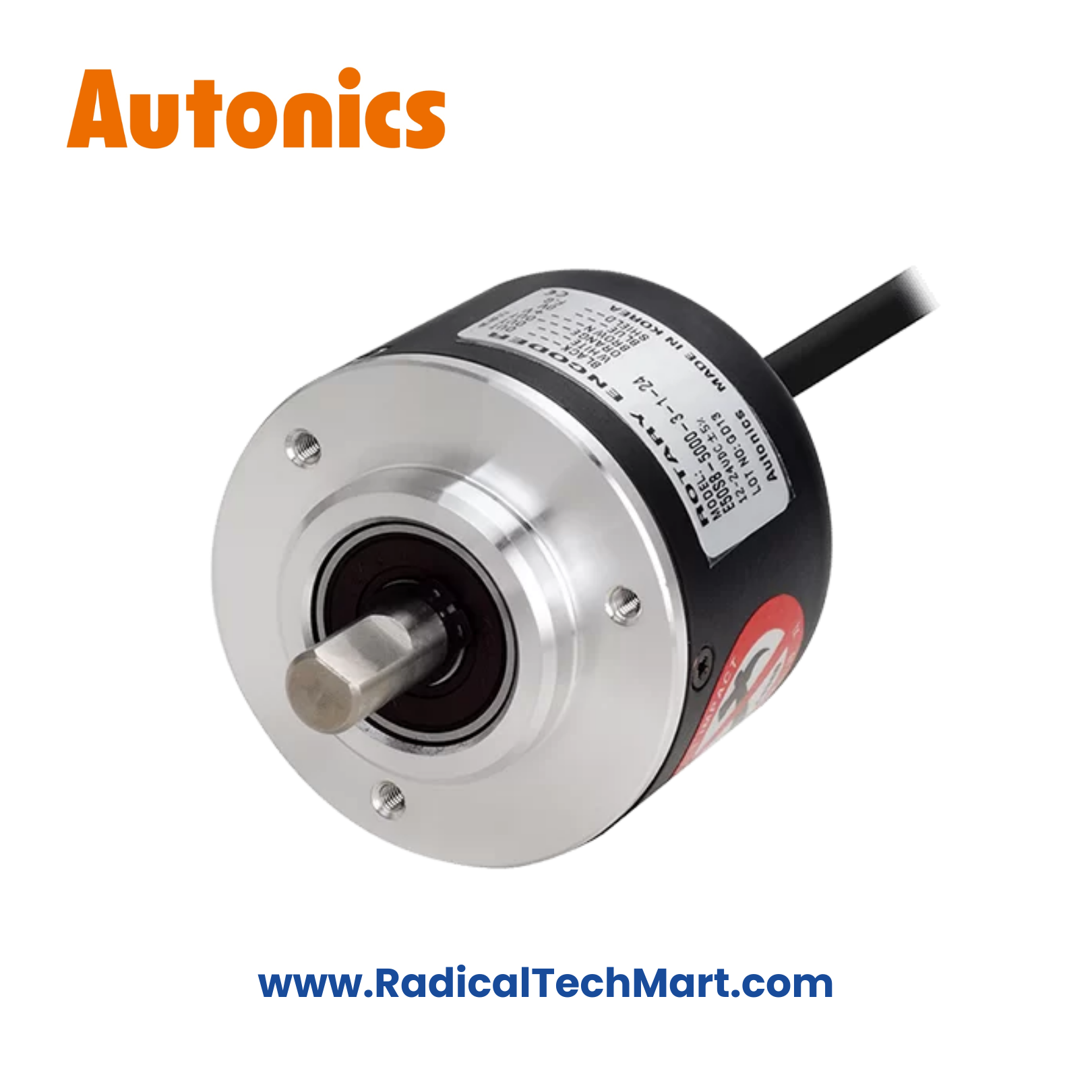

Autonics E50S8-1024-6-L-5 Incremental Rotary Encoder (50 mm, Solid Shaft, Line Driver, 1024 PPR)
Autonics E50S8-1024-6-L-5 is a 50 mm solid-shaft incremental rotary encoder with 1024 PPR resolution and line driver (differential) output, designed for high-speed, long-distance, and noise-resistant industrial motion control applications.
The Autonics E50S8-1024-6-L-5 is a 50 mm diameter incremental rotary encoder featuring a solid Ø 8 mm shaft and 1024 pulses per revolution. It provides A, A̅, B, B̅, Z, and Z̅ differential outputs (line driver), enabling reliable signal transmission over long cable distances and in electrically noisy industrial environments.
Powered by 5 V DC, this encoder is ideal for CNC machines, servo systems, high-speed conveyors, and precision automation equipment.
Key Features
Heavy-duty 50 mm encoder housing
Solid shaft (Ø 8 mm)
1024 PPR high-resolution output
Line driver (differential) A/A̅, B/B̅, Z/Z̅ signals
Excellent noise immunity for long cable runs
Maximum response frequency: 300 kHz
Maximum allowable speed: 5000 rpm
Shielded industrial cable
Reliable performance in motion-control systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E50S8-1024-6-L-5 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 1024 PPR |
| Output Phase | A/A̅, B/B̅, Z/Z̅ |
| Output Circuit | Line Driver (Differential) |
| Power Supply | 5 V DC ±5 % |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Applications
CNC machines and servo motors
High-speed positioning systems
Precision motion control
Long-distance encoder wiring setups
Industrial automation panels
Robotics and material handling
What’s in the Box?
Autonics E50S8-1024-6-L-5 Rotary Encoder
Mounting bracket & coupling
Instruction manual
FAQs
Q1. What is the benefit of line driver output?
It provides high noise immunity and stable signals for long cable distances.
Q2. What does 1024 PPR indicate?
It means 1024 pulses per revolution, suitable for high-precision motion control.
Q3. Is this encoder compatible with PLCs and servo drives?
Yes, it is compatible with PLCs, motion controllers, and servo drives supporting differential encoder inputs.
Q4. What power supply is required?
This model operates on 5 V DC.
Q5. Is it suitable for high-speed rotation?
Yes, it supports speeds up to 5000 rpm within rated limits.
