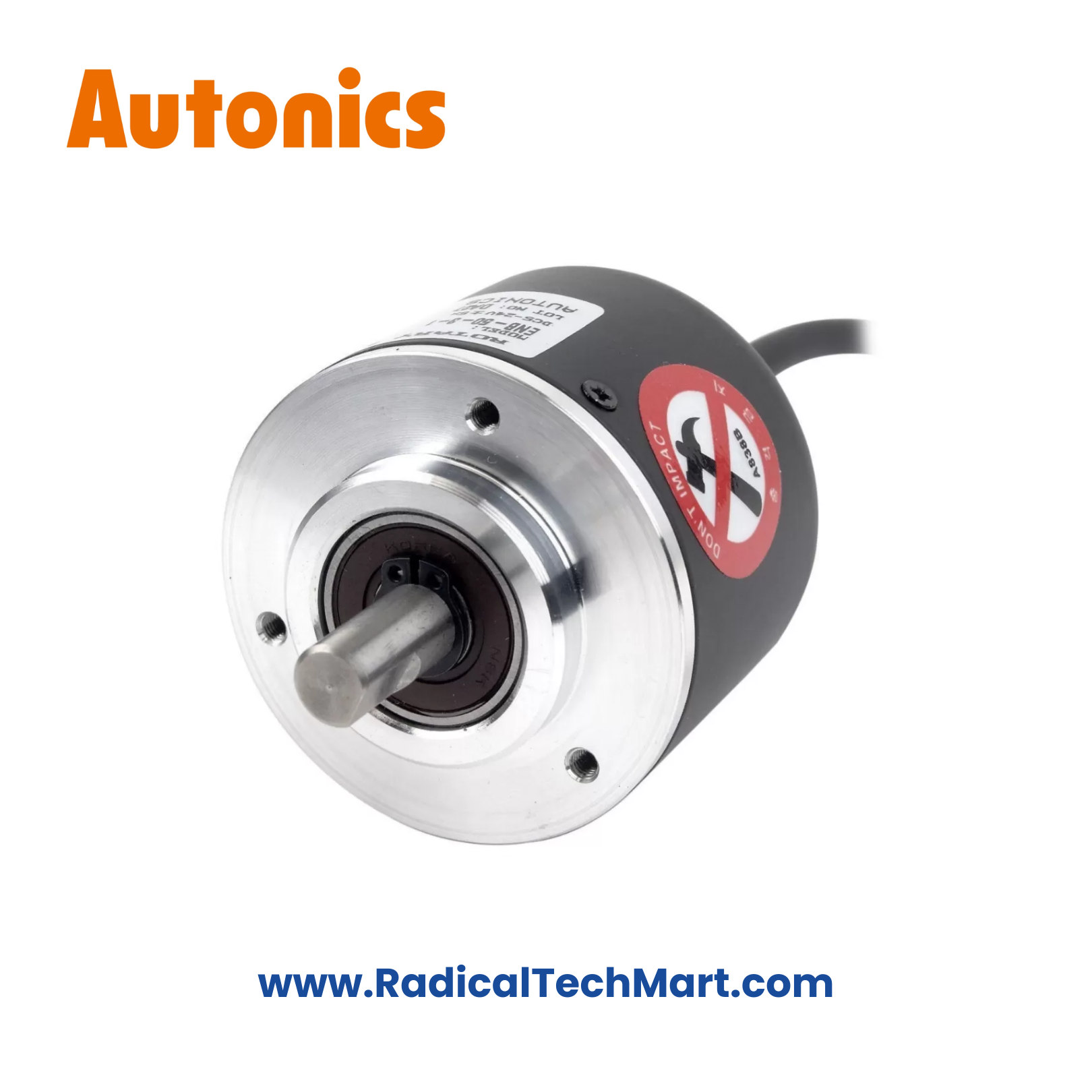

Autonics E50S8-360-3-T-1 Incremental Rotary Encoder (50 mm, Solid Shaft, 360 PPR)
Autonics E50S8-360-3-T-1 is a 50 mm solid-shaft incremental rotary encoder with 360 PPR resolution and A, B, and Z totem-pole output, suitable for standard speed and position feedback in industrial automation applications.
The Autonics E50S8-360-3-T-1 is a 50 mm diameter incremental rotary encoder featuring a solid Ø 8 mm shaft and 360 pulses per revolution (PPR). It provides A, B, and Z phase outputs via a totem-pole output circuit, ensuring fast signal response and compatibility with common PLCs, counters, and control systems.
This model is well suited for applications requiring moderate resolution for speed monitoring and basic position feedback in industrial environments.
Rugged 50 mm industrial encoder housing
Solid shaft design (Ø 8 mm)
360 PPR resolution
A, B, Z phase incremental outputs
Totem-pole output circuit
Stable operation at industrial speeds
Shielded cable for noise immunity
Easy installation on motors and machinery
| Parameter | Specification |
|---|---|
| Model | E50S8-360-3-T-1 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 360 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 5 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Conveyor speed monitoring
Industrial motor RPM feedback
Packaging and material handling machines
Counting and indexing systems
PLC-based automation panels
General-purpose industrial machinery
Autonics E50S8-360-3-T-1 Rotary Encoder
Mounting hardware
Instruction manual
Q1. What does 360 PPR mean?
It means the encoder outputs 360 pulses per shaft revolution, suitable for standard speed and position detection.
Q2. Is this encoder compatible with PLCs?
Yes, it works with PLCs and counters that accept totem-pole incremental encoder inputs.
Q3. What power supply does this model require?
This encoder operates on 5 V DC.
Q4. Can this encoder be used for continuous operation?
Yes, it supports continuous industrial operation up to 5000 rpm.
Q5. Is it suitable for harsh environments?
It is intended for indoor industrial use with IP50 protection.
