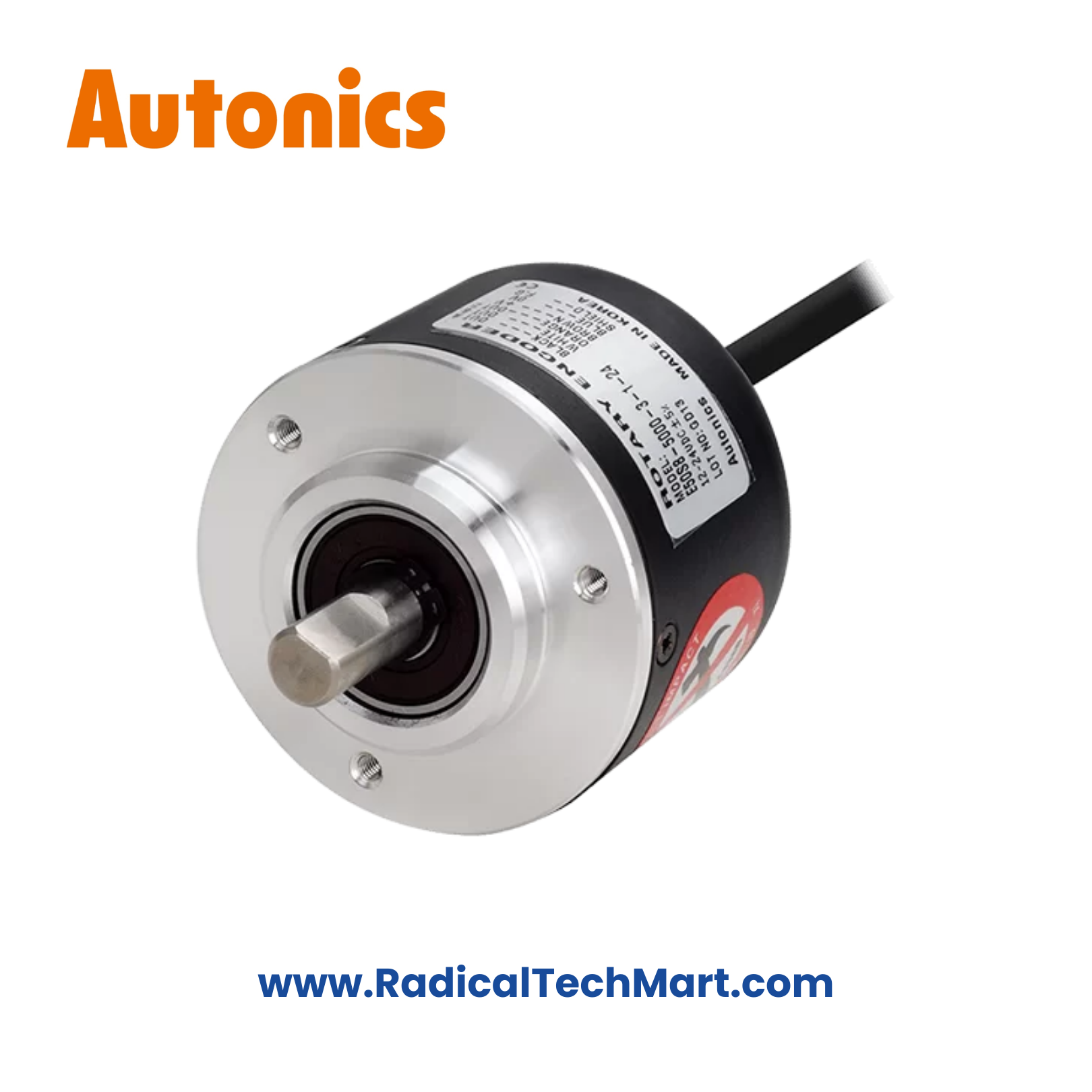

Autonics E50S8-360-6-L-24 Rotary Encoder
Autonics E50S8-360-6-L-24 Incremental Rotary Encoder (50 mm, Solid Shaft, Line Driver, 360 PPR)
Autonics E50S8-360-6-L-24 is a 50 mm solid-shaft incremental rotary encoder with 360 PPR resolution and line driver (differential) output, designed for stable, noise-resistant signal transmission in industrial automation systems.
The Autonics E50S8-360-6-L-24 is a 50 mm diameter incremental rotary encoder featuring a solid Ø 8 mm shaft and 360 pulses per revolution (PPR). It provides A/A̅, B/B̅, and Z/Z̅ differential outputs (line driver) and operates on 12–24 V DC, ensuring reliable signal transmission over long cable distances and in electrically noisy industrial environments.
This model is ideal for PLC, motion controller, and servo drive applications where stable encoder feedback is critical.
Key Features
- Robust 50 mm industrial encoder housing
- Solid shaft design (Ø 8 mm)
- 360 PPR resolution
- Line driver (differential) output
- A/A̅, B/B̅, Z/Z̅ phase signals
- 12–24 V DC wide power supply
- Excellent noise immunity for long cable runs
- Shielded cable for stable signal quality
- Reliable performance in automation systems
Technical Specifications
Parameter Specification Model E50S8-360-6-L-24 Encoder Type Incremental Rotary Encoder Housing Diameter 50 mm Shaft Type Solid Shaft Diameter Ø 8 mm Resolution 360 PPR Output Phase A/A̅, B/B̅, Z/Z̅ Output Circuit Line Driver (Differential) Power Supply 12–24 V DC ±5% Max Response Frequency 300 kHz Max Allowable Speed 5000 rpm Protection Rating IP50 Operating Temperature −10 to +70 °C Weight ≈ 180 g
| Parameter | Specification |
|---|---|
| Model | E50S8-360-6-L-24 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 360 PPR |
| Output Phase | A/A̅, B/B̅, Z/Z̅ |
| Output Circuit | Line Driver (Differential) |
| Power Supply | 12–24 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Applications
- PLC-based automation panels
- Servo and motion control systems
- CNC and positioning machines
- Long-distance encoder wiring setups
- Conveyor and material handling systems
- Industrial speed and position feedback
What’s in the Box?
- Autonics E50S8-360-6-L-24 Rotary Encoder
- Mounting hardware
- Instruction manual
FAQs
Q1. What is the advantage of line driver output?
It provides high noise immunity and stable signals, especially for long cable distances.
Q2. What does 360 PPR indicate?
It means the encoder outputs 360 pulses per shaft revolution, suitable for standard resolution speed and position feedback.
Q3. Is this encoder compatible with PLCs and servo drives?
Yes, it works with PLCs and drives supporting differential encoder inputs.
Q4. What power supply does this model require?
This model operates on 12–24 V DC.
Q5. Is this suitable for industrial environments?
Yes, it is designed for indoor industrial use with IP50 protection.
