Autonics E50S8-3600-6-L-5 Rotary Encoder
Autonics E50S8-3600-6-L-5 Incremental Rotary Encoder (50 mm, Solid Shaft, Line Driver, 3600 PPR)
Autonics E50S8-3600-6-L-5 is a 50 mm solid-shaft incremental rotary encoder with 3600 PPR ultra-high resolution and line driver (differential) output, ideal for long-distance, noise-immune precision motion control.

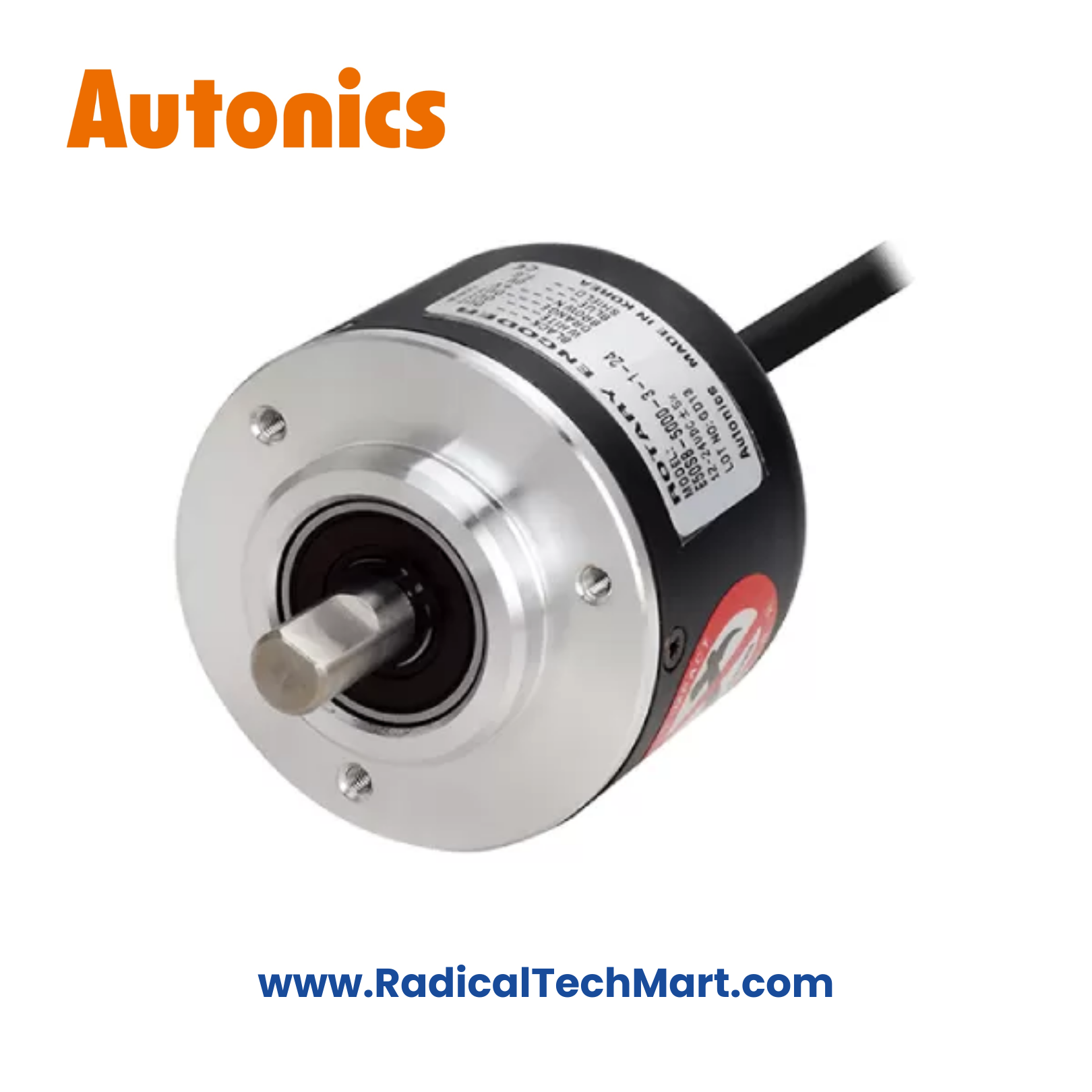

The Autonics E50S8-3600-6-L-5 is a 50 mm diameter incremental rotary encoder with a solid Ø 8 mm shaft and 3600 pulses per revolution (PPR). It delivers A/A̅, B/B̅, and Z/Z̅ differential (line driver) outputs, enabling stable signal transmission over long cable runs and in electrically noisy industrial environments.
Powered by 5 V DC, this encoder is designed for CNC machines, servo systems, high-precision positioning equipment, and advanced motion-control applications.
Key Features
Heavy-duty 50 mm industrial encoder housing
Solid shaft design (Ø 8 mm)
Ultra-high resolution: 3600 PPR
Line driver (differential) output
A/A̅, B/B̅, Z/Z̅ phase signals
Excellent noise immunity for long cable distances
Maximum response frequency: 300 kHz
Maximum allowable speed: 5000 rpm
Shielded cable for reliable signal quality
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | E50S8-3600-6-L-5 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 3600 PPR |
| Output Phase | A/A̅, B/B̅, Z/Z̅ |
| Output Circuit | Line Driver (Differential) |
| Power Supply | 5 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Applications
CNC machines and servo motors
High-precision motion control systems
Long-distance encoder wiring installations
Indexing and positioning machines
Robotics and material handling systems
Industrial automation panels
What’s in the Box?
Autonics E50S8-3600-6-L-5 Rotary Encoder
Mounting hardware
Instruction manual
FAQs
Q1. What is the advantage of line driver output?
It provides excellent noise immunity and stable differential signals, ideal for long cable runs.
Q2. What does 3600 PPR mean?
It outputs 3600 pulses per revolution, enabling extremely fine position and speed resolution.
Q3. Is this encoder suitable for CNC and servo applications?
Yes, it is well suited for CNC, servo drives, and precision motion systems.
Q4. What power supply does this model require?
This model operates on 5 V DC.
Q5. Is it suitable for industrial environments?
Yes, it is designed for indoor industrial use with IP50 protection.
