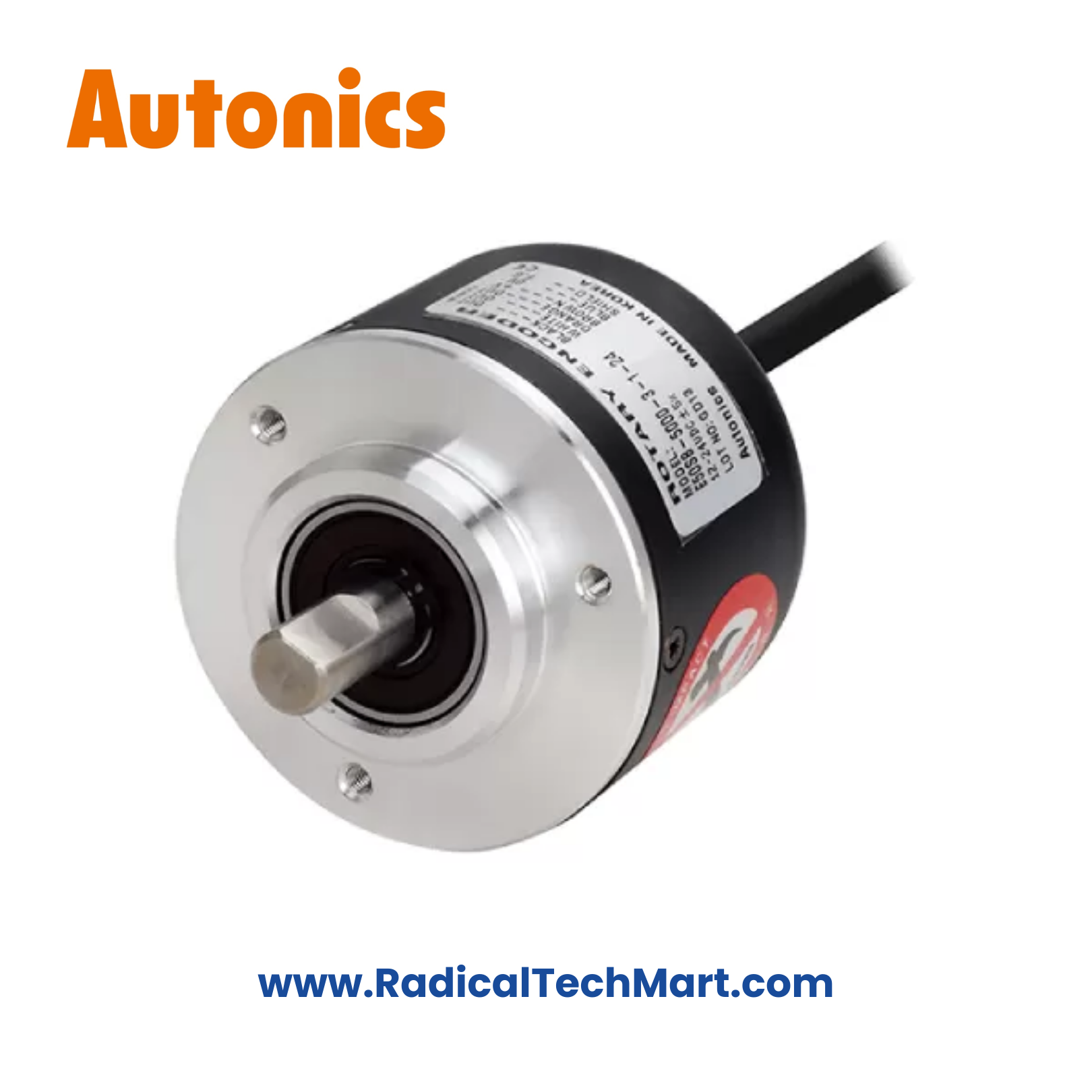

Autonics E50S8-5000-3-T-1 Rotary Encoder
Autonics E50S8-5000-3-T-1 Incremental Rotary Encoder (50 mm, Solid Shaft, 5000 PPR)
Autonics E50S8-5000-3-T-1 is a 50 mm solid-shaft incremental rotary encoder with 5000 PPR ultra-high resolution and A, B, and Z totem-pole output, designed for extremely precise speed and position feedback in advanced industrial automation.
The Autonics E50S8-5000-3-T-1is a 50 mm diameter incremental rotary encoder with a solid Ø 8 mm shaft and an ultra-high resolution of 5000 pulses per revolution (PPR). It outputs A, B, Z phase signals via a totem-pole circuit, ensuring fast switching and compatibility with PLCs, counters, and motion controllers.
This encoder is ideal for applications requiring very fine angular resolution, such as precision indexing, advanced automation, and high-accuracy motion control systems.
This encoder is ideal for applications requiring very fine angular resolution, such as precision indexing, advanced automation, and high-accuracy motion control systems.
Key Features
Rugged 50 mm industrial encoder housing
Solid shaft design (Ø 8 mm)
Ultra-high resolution: 5000 PPR
A, B, Z phase incremental outputs
Totem-pole output circuit
High-speed signal response
Shielded cable for noise immunity
Reliable long-term industrial performance
Rugged 50 mm industrial encoder housing
Solid shaft design (Ø 8 mm)
Ultra-high resolution: 5000 PPR
A, B, Z phase incremental outputs
Totem-pole output circuit
High-speed signal response
Shielded cable for noise immunity
Reliable long-term industrial performance
Technical Specifications
Parameter Specification Model E50S8-5000-3-T-1 Encoder Type Incremental Rotary Encoder Housing Diameter 50 mm Shaft Type Solid Shaft Diameter Ø 8 mm Resolution 5000 PPR Output Phase A, B, Z Output Circuit Totem-pole Power Supply 5 V DC ±5% Max Response Frequency 300 kHz Max Allowable Speed 5000 rpm Protection Rating IP50 Operating Temperature −10 to +70 °C Weight ≈ 180 g
| Parameter | Specification |
|---|---|
| Model | E50S8-5000-3-T-1 |
| Encoder Type | Incremental Rotary Encoder |
| Housing Diameter | 50 mm |
| Shaft Type | Solid |
| Shaft Diameter | Ø 8 mm |
| Resolution | 5000 PPR |
| Output Phase | A, B, Z |
| Output Circuit | Totem-pole |
| Power Supply | 5 V DC ±5% |
| Max Response Frequency | 300 kHz |
| Max Allowable Speed | 5000 rpm |
| Protection Rating | IP50 |
| Operating Temperature | −10 to +70 °C |
| Weight | ≈ 180 g |
Applications
- Precision motion control systems
- High-accuracy positioning and indexing machines
- CNC and automation equipment
- Advanced speed and position feedback
- Conveyor synchronization systems
- PLC-based automation panels
What’s in the Box?
- Autonics E50S8-5000-3-T-1 Rotary Encoder
- Mounting hardware
- Instruction manual
FAQs
Q1. What does 5000 PPR mean?
It means the encoder generates 5000 pulses per shaft revolution, enabling extremely fine position and speed measurement.
Q2. Is this encoder compatible with PLCs?
Yes, it works with PLCs and controllers supporting totem-pole incremental encoder inputs.
Q3. What power supply does this model require?
This encoder operates on 5 V DC.
Q4. Can it be used for high-speed applications?
Yes, it supports shaft speeds up to 5000 rpm within rated limits.
Q5. Is this encoder suitable for industrial use?
Yes, it is designed for indoor industrial environments with IP50 protection.
